FXS Gateway TA400/800 User Manual
4.2.1 VoIP Server Settings
There are some configurable VoIP(SIP/IAX) Server templates on this page. The
number of VoIP Server templates is the half of FXS ports on TA FXS Gateway. The
VoIP server settings help the FXS ports to register to the VoIP server. Once
configured, the templates can be chosen on FXS port setting page.
Two modes are available for the VoIP server, we call them VoIP mode and
SPS(Service Provider SIP)/SPX(Service Provider IAX) mode.
VoIP Mode:
The FXS port will be registered as one the VoIP server's SIP extensions if "Enable
Register" is checked on VoIP Server template.
SPS/SPX Mode:
If "Enable Register" is not checked, the FXS port will be registered as a SPS/SPX
trunk to the VoIP Server. One SPS/SPX trunk to TA FXS Gateway also should be
created on the VoIP Server.

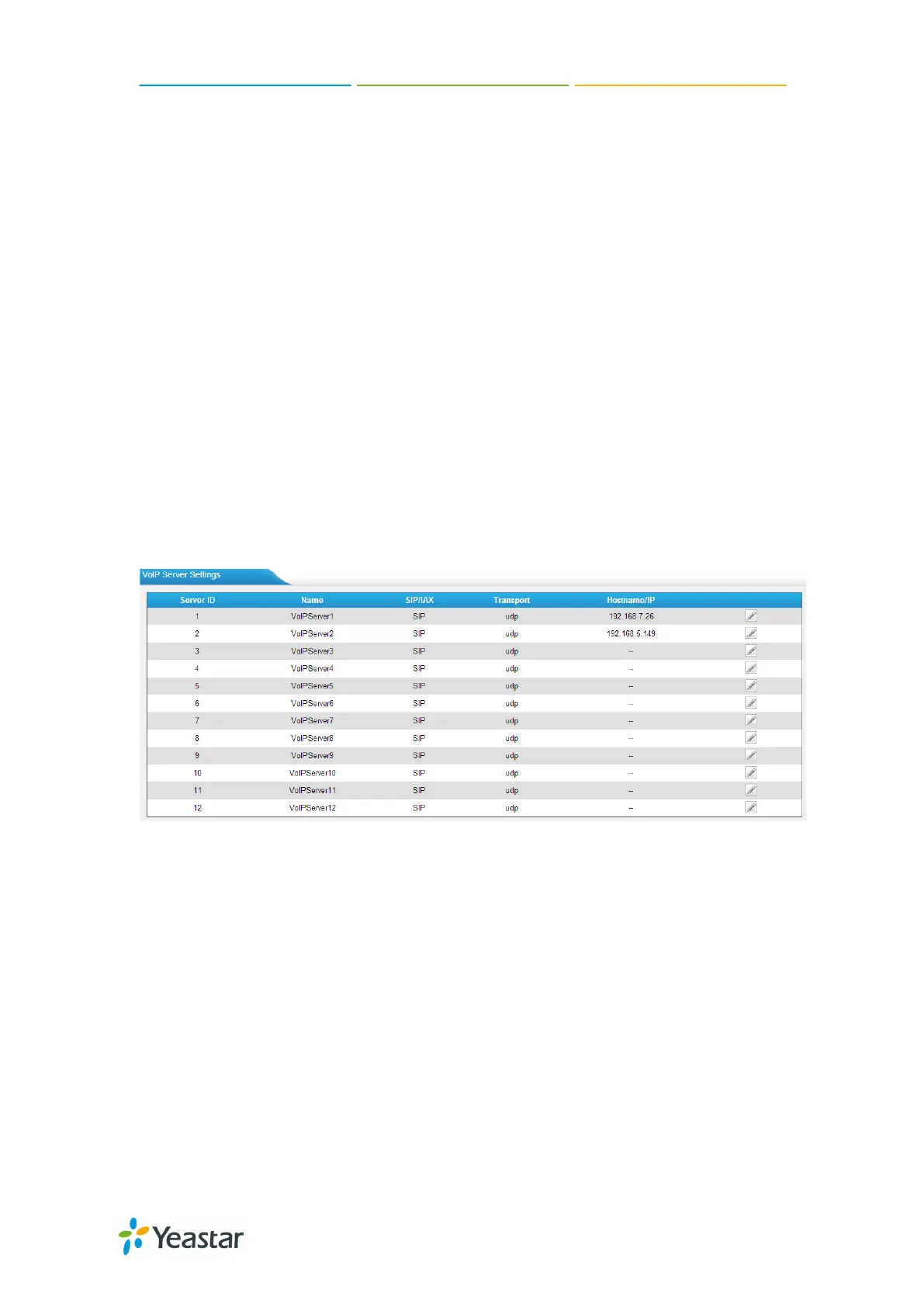

Figure 4-8 VoIP Server
37/59
