YOKOGAWA 436101 Operation Guide

28 IM 04P02B01-02E

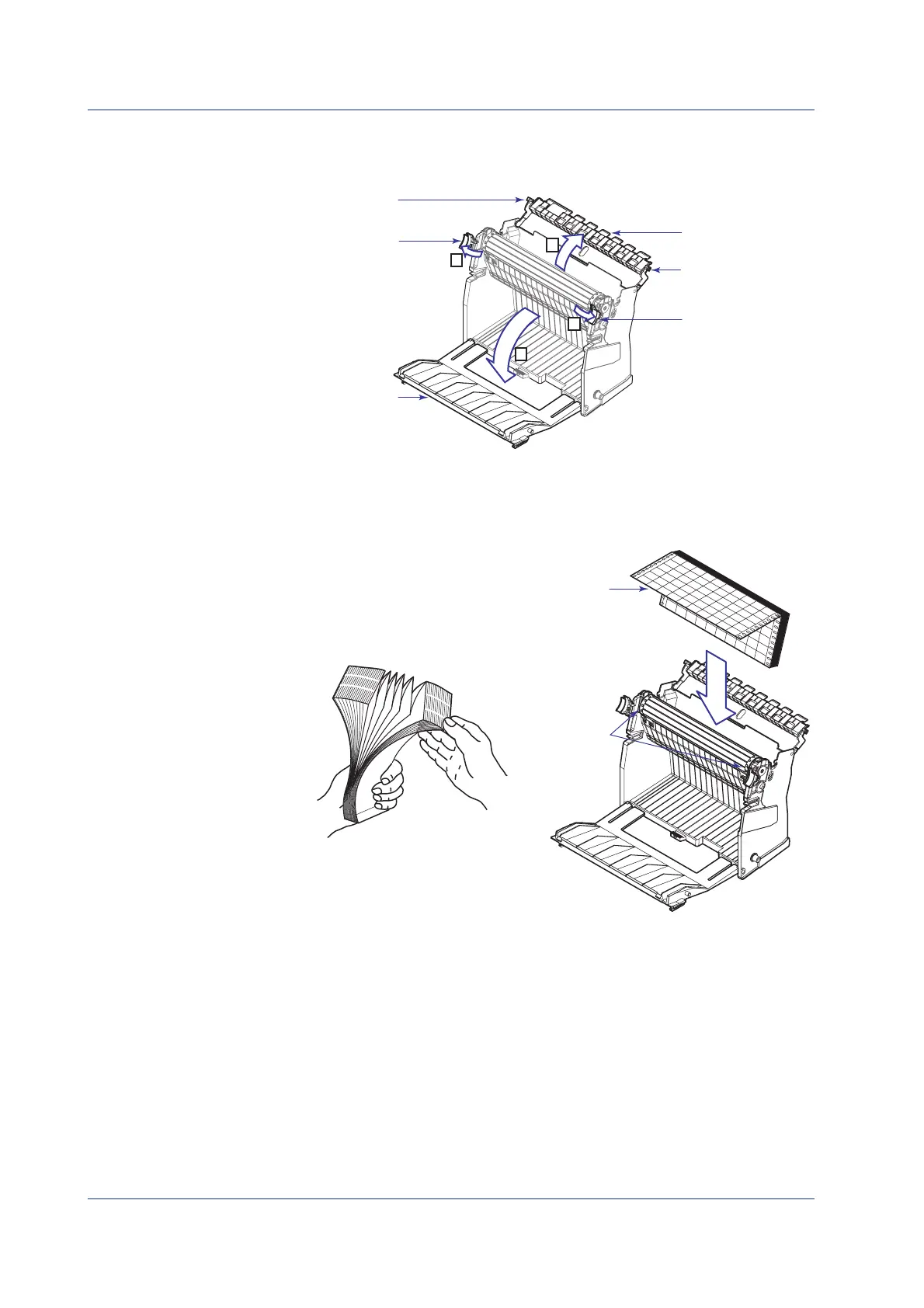

3. Open the front cover, the chart holder (transparent plastic) of the sprocket
section, and the chart holder (black plastic). Open the chart holder (black
plastic) while gently pressing the stopper on either side.
Chart holder
(Black)
Stopper
Front cover
Chart holder
(Transparent)
Stopper
Chart holder
(Transparent)
1
2
3
2
4. Load the chart paper.
Riffle the chart thoroughly before loading.
Make sure that the sprocket teeth of the chart drives are properly engaged in the
chart paper perforations. Make sure not to load the chart paper backwards.
Z-fold chart paper
Sprocket teeth
Preparing to Record
