YOKOGAWA AXFA14G User Manual

<4. Wiring>
47
IM 01E20A01-01EN
In case of power cable, Green/Yellow covered conductor
shall be used only for connection to PROTECTIVE
CONDUCTOR TERMINALS. Conform to IEC227,
IEC245 or equivalent national authorization.
NOTE
• For power cables, always use a crimp terminal
with an insulation cover.
• Use crimp tools from the manufacturer of the crimp
terminal you want to use to connect the crimp
terminal and cable.
• Use crimp tools that are appropriate for the
diameter of the cable to be connected.
4.4.3 Wiring Ports for AXFA11
This instrument is of watertight construction as stipulated
inJISC0920.Itisshippedwithawiringbracket
(waterproof gland or waterproof gland with union) or a
plastic gland attached, only in cases where an optional
specicationisselectedforthewiringport.
IMPORTANT
The wiring port is sealed with a cap (not waterproof).
Do not remove the cap from the unused wiring port.
If waterproof property is necessary, apply a blanking
plug to the unused wiring port.
The blanking plug may not be attached depending
onthespecication.Ifitisnecessary,contact
YOKOGAWA.
(1) When waterproof property is unnecessary
(When there are no particular optional
specications)
The wiring port is sealed with a cap (not water-proof) that
must be removed before wiring. At this time, handle the
wiringportinaccordancewiththeJISC0920mentioned
above. Do not remove the cap from the unused wiring
port.
(2) When waterproof property is necessary
(Wiring using waterproof glands)
IMPORTANT
To prevent water or condensation from entering the
converter housing, waterproof glands are recommended.
Do not over-tighten the glands or damage to the cables
may result. Tightness of the gland can be checked by
conrmingthatthecableisheldrmlyinplace.
Forworkingontheelectricwiretubesortheexibletubes
(G1/2), remove the waterproof gland and attach them
directly to the wiring port.

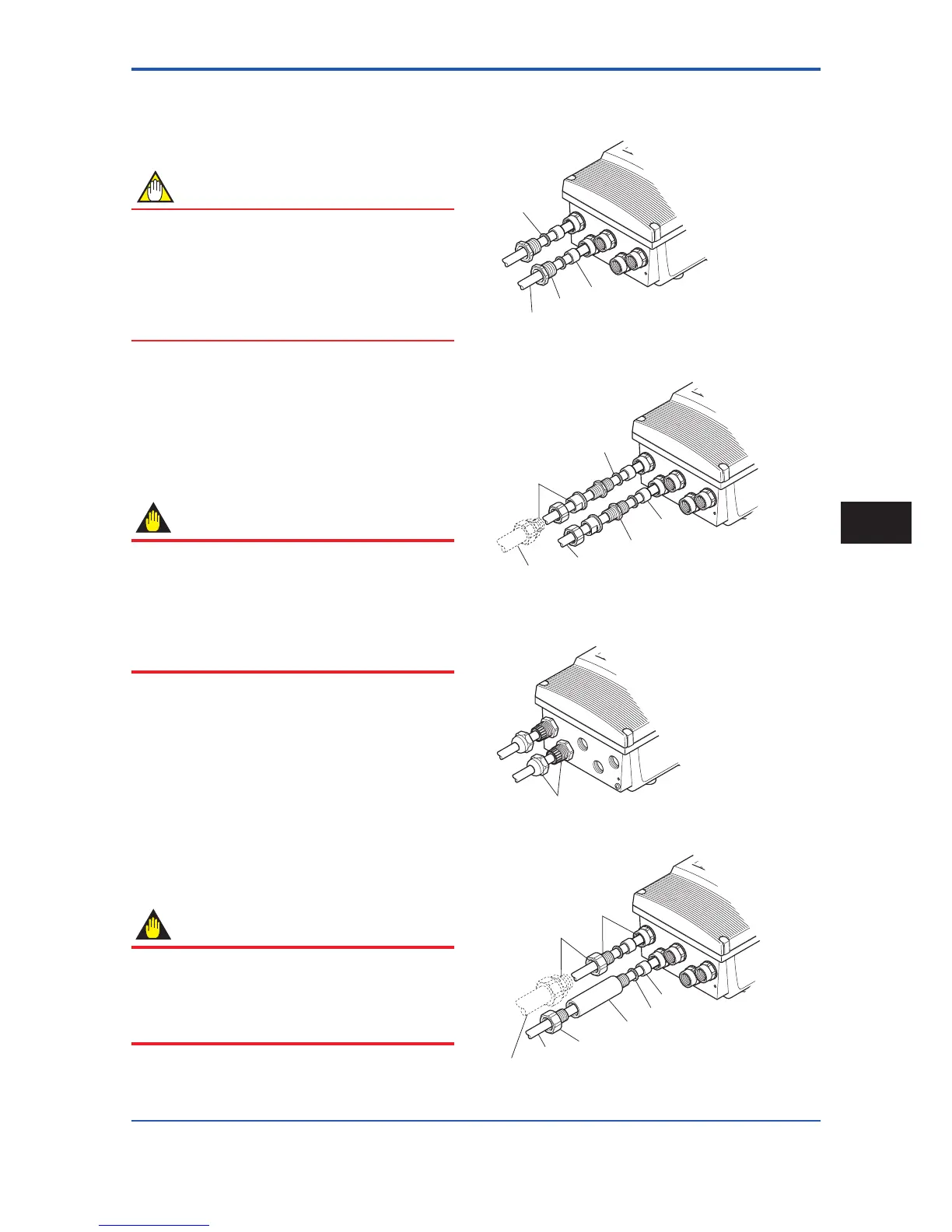

Cable
Waterproof gland
Gasket
Washer
F0448.ai
Figure 4.4.1 Waterproof Gland (Optional code EG)
Gasket
Washer
Tightening gland
When working on conduit pipes or flexible pipes (G1/2 only)
Cable
G1/2
F0449.ai
Figure 4.4.2 Waterproof Gland with Union Joint
(Optional code EU)
Plastic gland
F0450.ai
Figure 4.4.3 Plastic Gland (Optional code EP)
Gasket
Washer
When working on electric wire tube or flexible tube (G3/4)
* When connecting G1/2, remove the conversion plug and
connect directly to wiring port.
Extension plug (x2)
Cable
G3/4
G1/2
Conversion plug (x5)*
F0451.ai
Figure 4.4.4 G3/4 Waterproof Gland (Optional code EW)
Wiring
4
