b) Call the parameter panel
On initial data panel, type [F4] OK or
[ENT] to call the starting [HOME menu
panel] of menu panel 4.
Select a menu choice from menu panel
4 and press [ENT] to call parameter
panel 5.

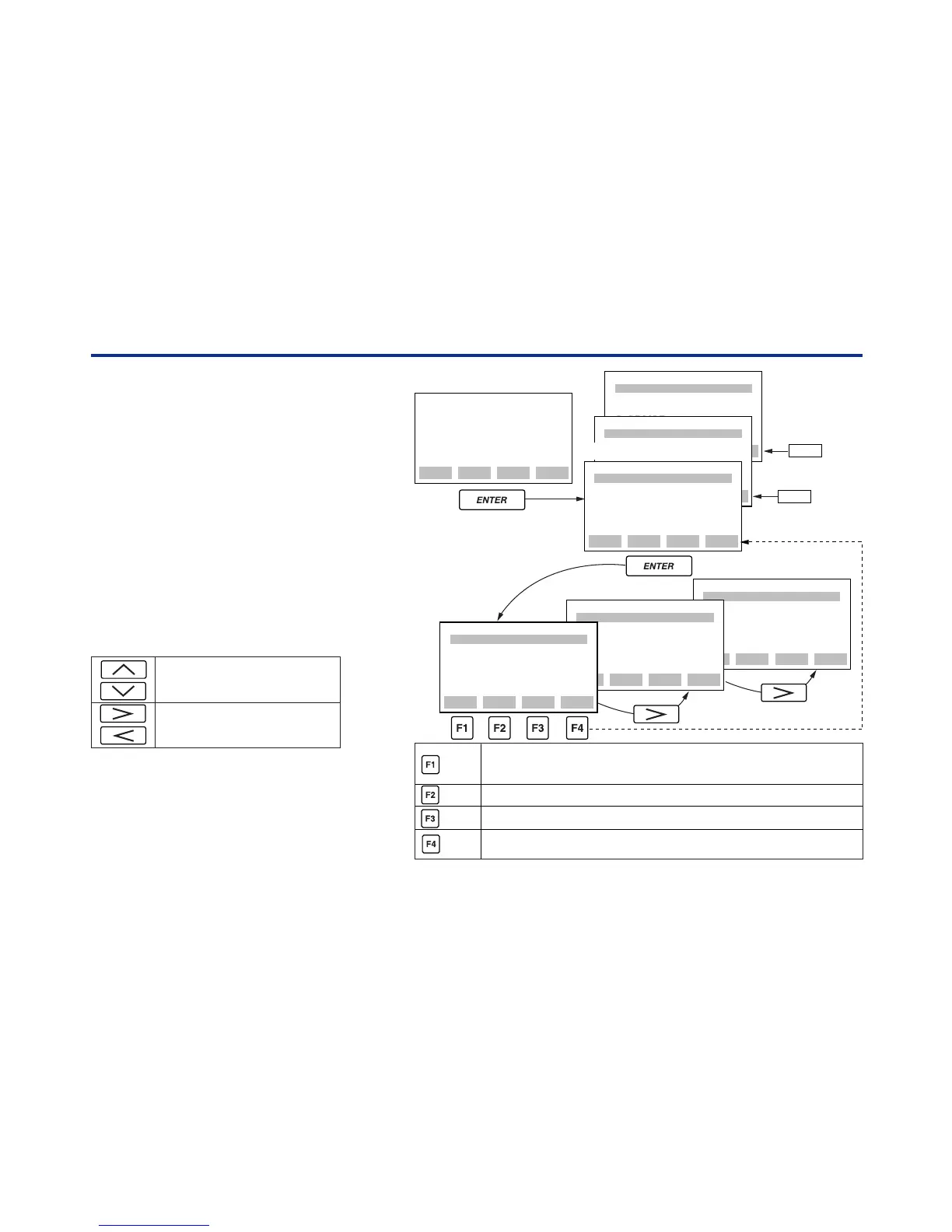

The parameter panel displays up to three
parameters in each page. Use the
movement keys
<
>
[ ], [ ], [<], and [>]
to select
parameters.
F0412.EPS
Move the reverse bar up and
down to select parameters.
Change pages.
SET
ADJ
F0413.EPS
DATA DIAG PRNT ESC
PARAM
C60:SELF CHECK
GOOD
DATA DIAG PRNT ESC
PARAM
C22:HIGH RANGE
1000 mmH2O
C30:AMP DAMPING
 2.0 SEC
C40:OUTPUT MODE
OUT:LIN DSP:LIN
DATA DIAG PRNT ESC
PARAM
C10:TAG NO.
TABC-101
C20:PRESS UNIT
mmH2O
C21:LOW RANGE
0 mmH2O
DATA DIAG PRNT ESC
MENU
J:ADJUST
K:TEST
M:MEMO
P:RECODE
DATA DIAG PRNT ESC
HOME SET ADJ ESC
MENU
A:DISPLAY
B:SENSOR TYPE
MENU
C:SETTING
D:AUX SET 1
E:AUX SET 2
PARAM
01:MODEL
EJ110-DM
02:TAG NO.
TABC-101
03:SELF CHECK
GOOD
OK
DATA
DIAG
PRNT
ESC
INITIAL DATA PANEL
Exits from the current panel and returns to the previous panel
(menu panel).
Updates the current parameter. When you press this key, data is
read from the connected instrument for display through
telecommunications.
Calls the self-check panel. (See Section 4.4(2)c)
Calls the parameter print panel. (See Section 5.2(2))
HOME MENU PANEL
