Helpful hint 1

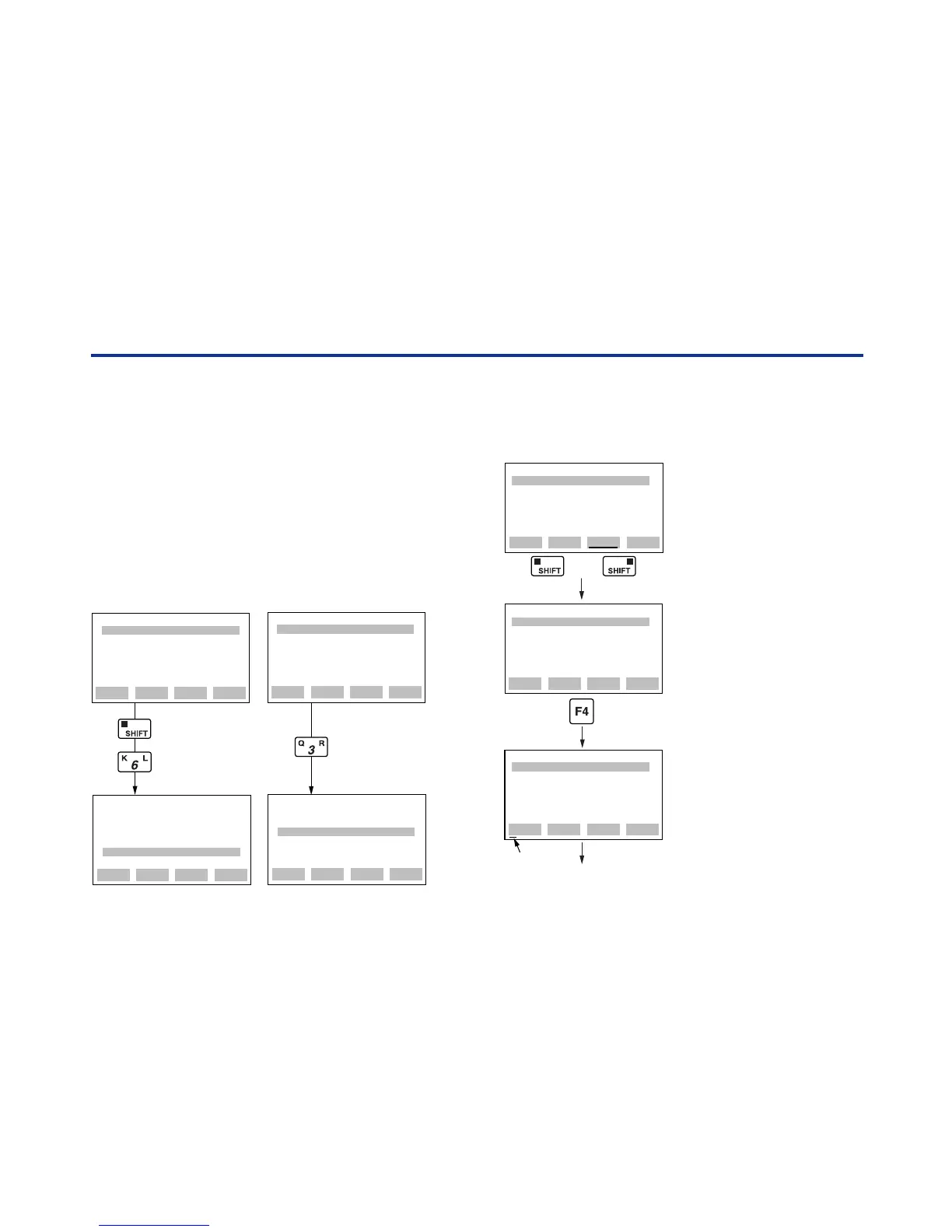

• Typing letters in a panel allows you to make a direct
selection of the corresponding menu choices from
the panel.
1. While Menu panel is on display, type ‘K’ to select
the choice ‘K: TEST.’
2. On a utility panel or function panel, type digits
instead to make a direct selection of the corre-
sponding utility functions.
F0414.EPS
HOME SET ADJ ESC
MENU
A:DISPLAY
B:SETTING
C:ADJUST
I:CALIBRATION
K:TEST
M:CHECK DATA
HOME SET ADJ ESC
MENU
A:DISPLAY
B:SETTING
C:ADJUST
I:CALIBRATION
K:TEST
M:CHECK DATA
esc
UTILITY
1.ID
2.security code
3.MESSAGE MODE
4.LCD CONTRAST
5.PRINTER ADJUST
esc
UTILITY
1.ID
2:security code
3.MESSAGE MODE
4.LCD CONTRAST
5.PRINTER ADJUST
MENU PANEL
UTILITY PANEL
Type ‘3’Type ‘K’
Helpful hint 2
• Following procedure allows you to make a direct
selection of the parameter.
PARAM
A10:OUTPUT
100.0 %
A11:ENGR. OUTPUT
1000 mmH2O
A20:AMP TEMP
23°C
DATA DIAG PRNT ESC
F0415-1.EPS
PARAM
A10:OUTPUT
100.0 %
A11:ENGR. OUTPUT
1000 mmH2O
A20:AMP TEMP
23°C
HOME SET ADJ PARM
PARAM
A10:OUTPUT
100.0 %
A11:ENGR. OUTPUT
1000 mmH2O
A20:AMP TEMP
23°C
esc
or
1.Press a shift key on
parameter panel to change
the function commands to the
commands shown on panel .
2.Press [F4] PARM to change
the function commands to the
commands shown on panel .
[F1] HOME

[F2] SET

[F3] ADJ

[F4] PARM
➝HOME parameter
panel.
➝SET parameter
panel.

➝ADJ parameter
panel.

➝Change the function
commands.
3
䊊
2
䊊
1
䊊
1
䊊
2
䊊
3
䊊
Entry position
PARAMETER PANEL
