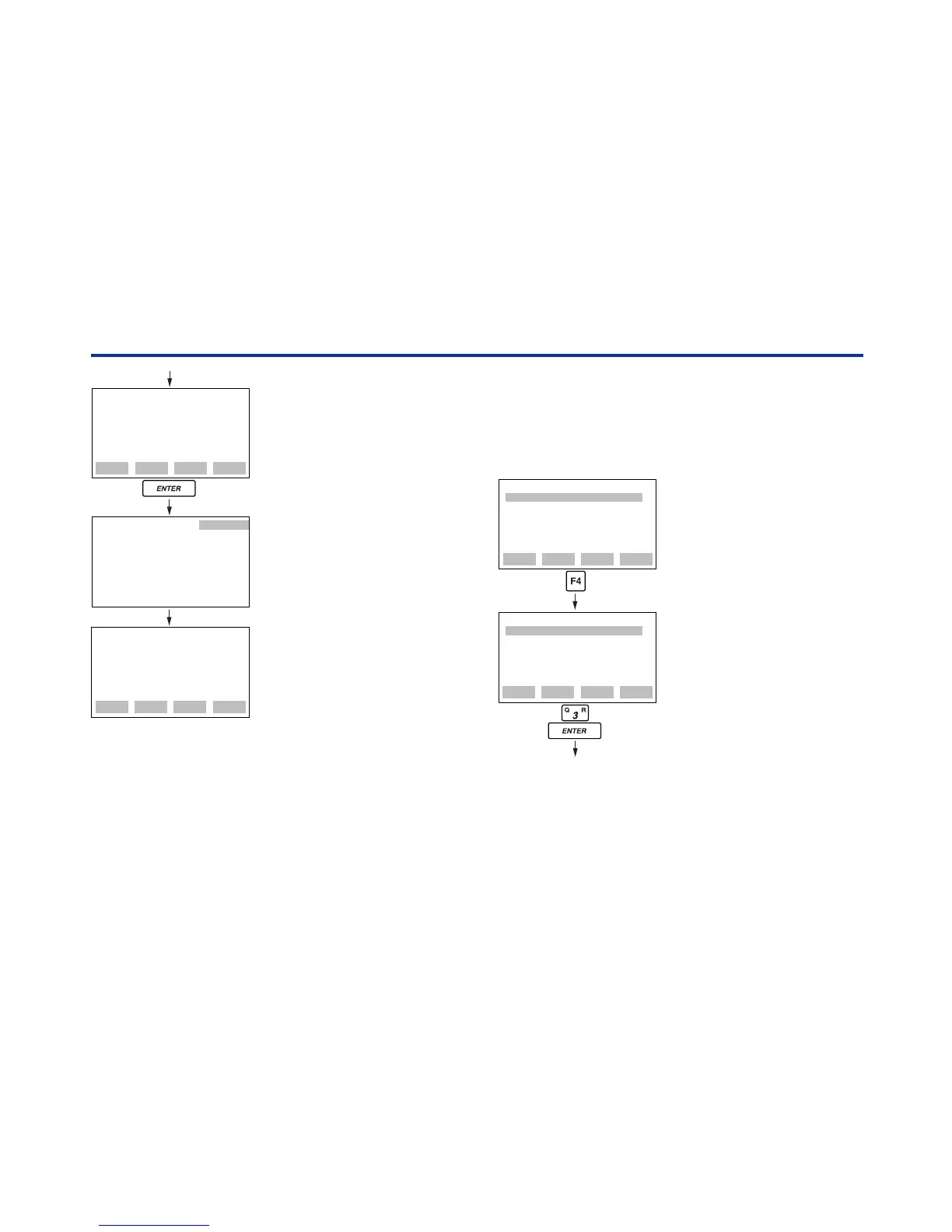

F0501-2.EPS
UP LOAD
MODEL
EJ110-DM

UPLOAD start?
push ENTER key
ESC
[F3] PRNT

[F4] ESC
➝Print uploaded data.

 (See section 5.2(5).)
➝Return to the
function panel.
3
䊊
3.The model name of the
connected instrument is
displayed, check it and press
[ENT].
UP LOAD communi.
MODEL
EJ110-DM

UPLOADING
please wait...

UP LOAD
MODEL
EJ110-DM

UPLOAD complete
F3:print data
PRNT ESC
4.An upload is executed and a
transfer starts.
Panel is displayed while the
transfer is in progress.
4
䊊
5
䊊
5.The transfer is complete
when panel appears.
4
䊊
5
䊊
Because the data is written to the BT200’s nonvolatile
memory, it is preserved intact even when the terminal
is switched off.
(2) GLOBAL COPY (DOWNLOAD)
Downloading copies the settings stored in the BT200
into other instruments in a batch, but not into different
models.
MENU
A:DISPLAY
B:SENSOR TYPE
HOME SET ADJ ESC
F0502-1.EPS
FUNC
1.MENU
2.UPLOAD TO HHT
3.DOWNLOAD TO INST
4.PRINT ALL DATA
HOME SET ADJ 
1.Connect the BT200 to the
other instrument and make it
ready for communication.
 Press [F4] ESC on the menu
panel to call panel .
2.Select ‘3. DOWNLOAD TO
INST’ and press [ENT].
2
䊊
1
䊊
2
䊊
