2. AMPLIFIER FOR FIELDBUS
COMMUNICATION
Read IM 01F06A00-01EN for the details of the
amplifier. This section encompasses topics
applicable to only the Fieldbus communication type.
(1) The Fieldbus communication type has no local
key access function.
(2) The Fieldbus communication type has no
BT200 (BRAIN TERMINAL) connection pin.
(3) The Fieldbus communication type has a
simulation function. The SIMULATE_ENABLE
switch is mounted on the amplier. Read
Section 7.3 “Simulation Function” for details of
the simulation function.
F0201.ai
1
2
SIMULATE_ENABLE switch
Amplifier unit

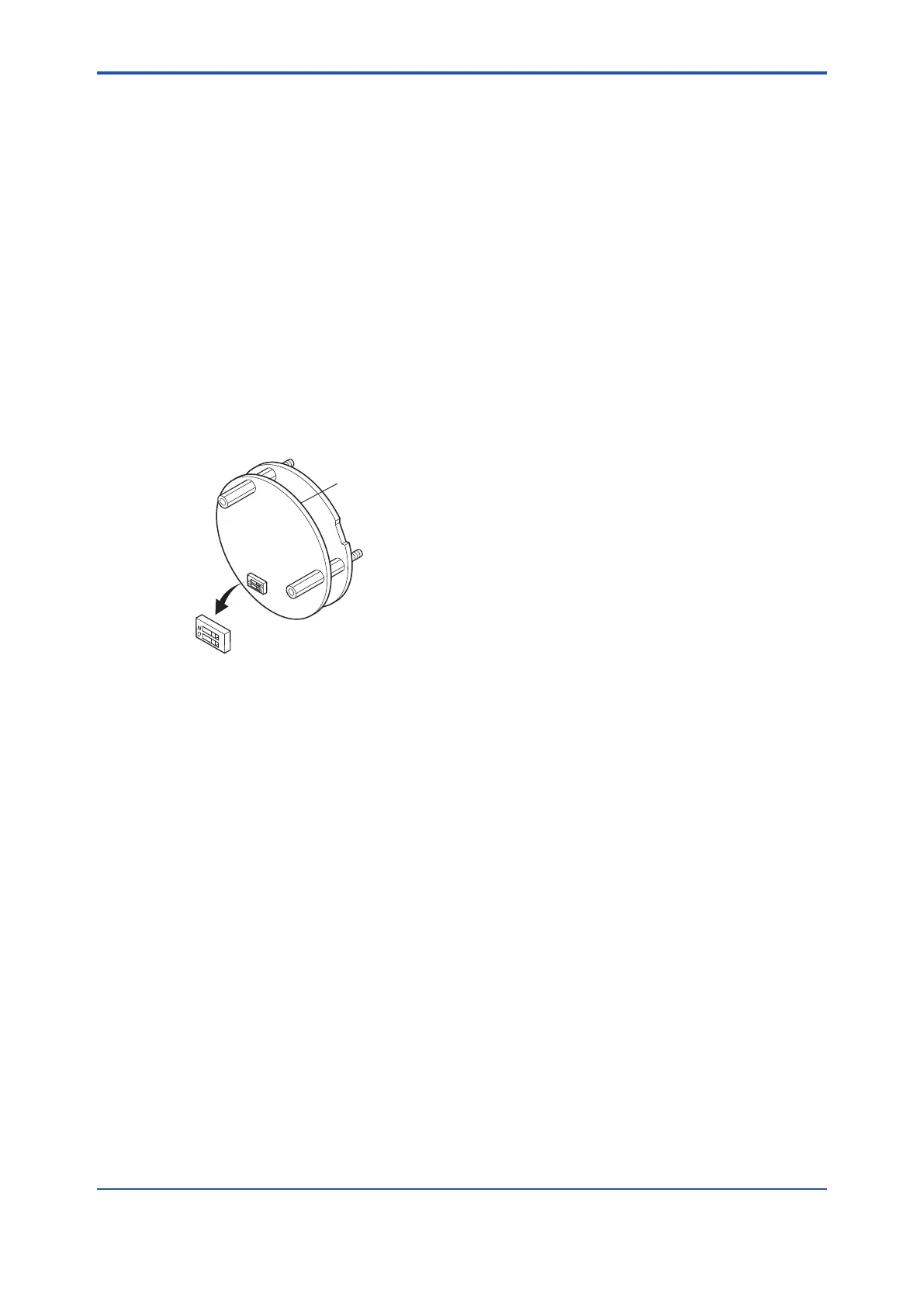

Figure2.1 AmplierforFieldbusCommunication
