Voluemetric Flow Rate at Normal Condition
Nm
3
/s(1522), Nm
3
/m(1523), Nm
3
/h(1524),
Nm
3
/d(1525), NL/s(1532), NL/m(1533),
NL/h(1534), NL/d(1535), Sm
3
/s(1527),
Sm
3
/m(1528), Sm
3
/h(1529), Sm
3
/d(1530),
SL/s(1537), SL/m(1538), SL/h(1539),
SL/d(1540), SCFM(1360), SCFH(1361)
N: Normal, S: Standard.
Percentage
%(1342)

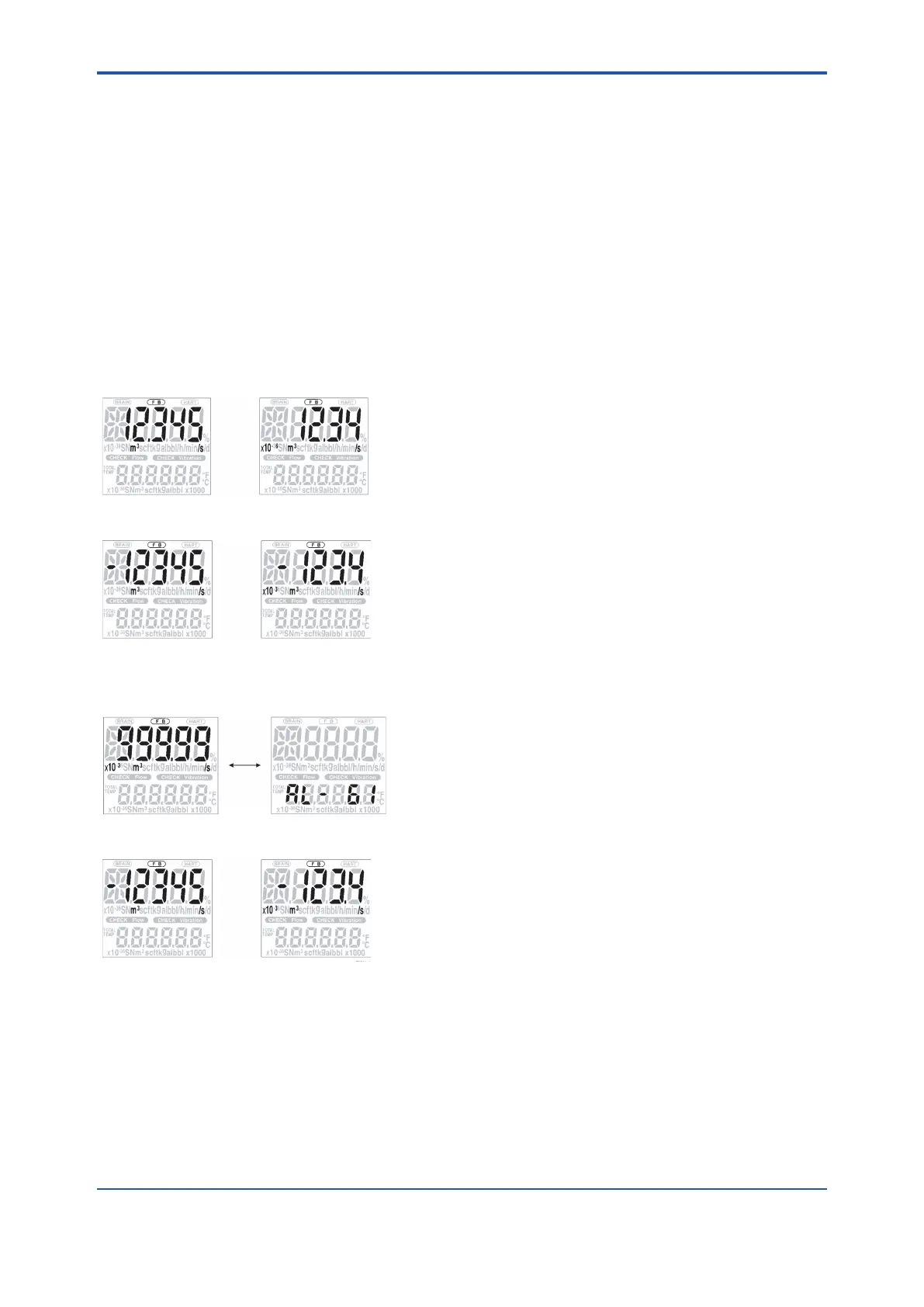

(1) Display Style
In case of plus display
Example : AR OUT_RANGE. EU_100 : 1 Example : AR OUT_RANGE. EU_100 : 0.00001
F0601.ai
In case of Minus display
Example : AR OUT_RANGE. EU_100 : 1,000 AR OUT_RANGE. EU_100 : 100,000
F0602.ai
(2) Alarm Display
In case of plus display
Example : Display“99999” and “AL - 61” altrnatelly
F0603.ai
In case of Minus display
Example : AR OUT_RANGE. EU_100 : 1,000 AR OUT_RANGE. EU_100 : 100,000
F0604.ai
