YOKOGAWA WT5000 Features Guide

6-16
IM WT5000-01EN

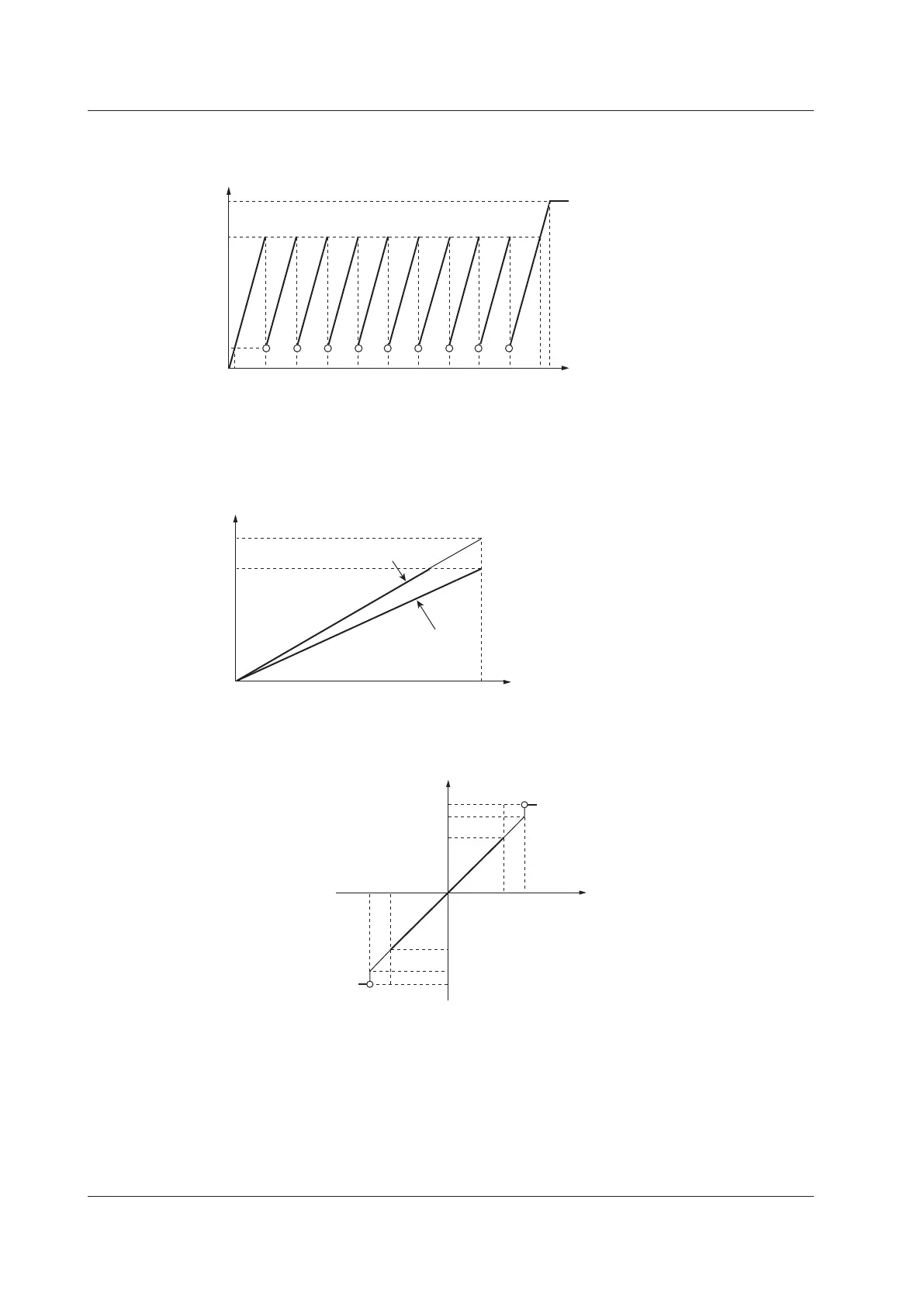

Relationship between Output Items and D/A Output Voltage
Frequency (the figure is simplified)
D/A output
Approx. 7.5 V
5.0 V
0.5 V
Displayed
value
10 Hz
0.1 Hz
1 Hz
100 Hz
1 kHz
10 kHz
100 kHz
1 MHz
10 MHz
100 MHz
1 GHz
1.5 GHz
User-Defined Events
• When the event is occurring (True): +5 V
• When the event is not occurring (False): 0 V
Integrated Values
D/A output
Approx. 7.0 V
5.0 V
0
Integration time
t
0
At 140% of the rated input
At the rated input
t0: The rated time of integrated D/A output in manual integration mode.
The timer time in normal or continuous integration mode.
Other Items
Displayed Output
value
140% Approx. 7.0 V
100%
5.0 V
0%
0 V
−
100% − 5.0 V
–
140% Approx. − 7.0 V
D/A output
Approx. 7.5 V
Approx. 7.0 V
5.0 V
0
− 5.0 V
− 100
100
− 140
140
Approx. –7.0 V
Approx. –7.5 V
Displayed
value (%)
• The outputs for λ, Φ, EaM1U, EaM1I, EaM3U, and EaM3I do not exceed ±5 V. When the display format of Φ
is set to 360 degrees, the output for Φ ranges from 0 V to +5 V. When the display format of Φ is set to 180
degrees (lagging 180° to leading 180°), the output for Φ ranges from –5 V to +5 V. However, when an error
occurs, the output is approximately 7.5 V. Only the outputs for U–pk and I–pk are approximately –7.5 V when
an error occurs.
• The outputs for η1 to η4, Uhdf, Ihdf, Phdf, Uthd, Ithd, Pthd, Uthf, Ithf, hvf, hcf, and Slip* are +5 V at 100%.
6 Computation and Output
