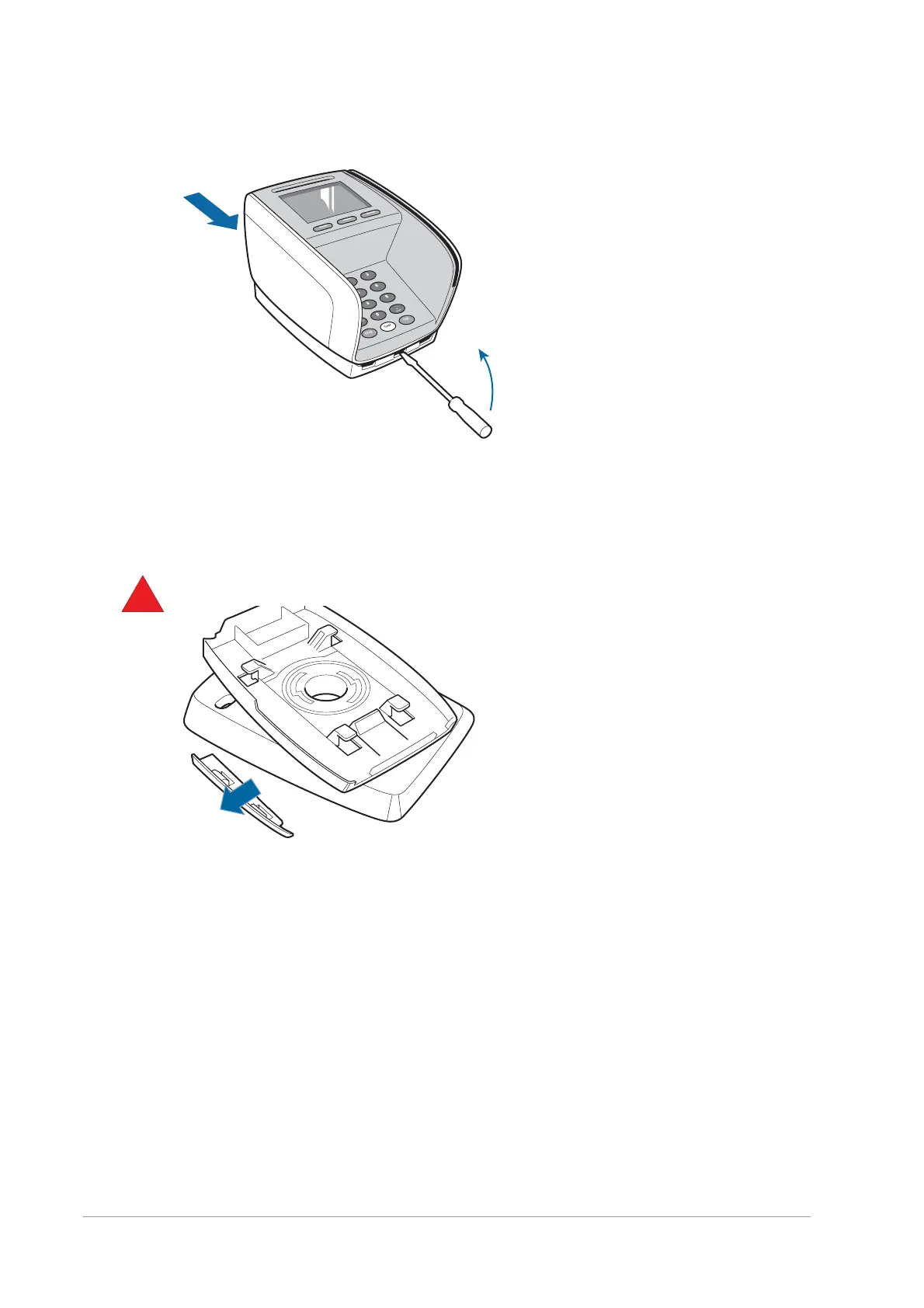

Figure 35. Lifting YOMANI off fixation plate
3. Disconnect all cables and remove the terminal from the fixation plate.
Installing a swivel – optional
1. If your YOMANI has a contactless reader, remove the side lip from the swivel.
Figure 36. Removing side-lip from swivel
2. Make sure the surface where you are going to install the swivel is flat.
3. Guide the cables through the central cable opening of the swivel.
4. Snap the terminal on to the swivel the same way you snap a terminal on to the
fixation plate: place the terminal on the swivel about one centimeter from the back
edge, and push the terminal towards the back edge until it clicks into its locked
position.
5. Turn the terminal and swivel upside down and clamp the cables in the cable guides
on the underside of the swivel.
