Powering up YOMANI XR
In the XR configuration, the YOMANI is normally powered from a mains adaptor
connected to the power input socket.
Only use the mains adaptor that is supplied by your vendor.
You must power the YOMANI through the power input socket:
• if the YOMANI terminal is fitted with a printer, a communications interface board, or
both
• if anything is plugged in to the USB host socket
Exceptionally, when you are using a terminal without a printer or a communications
interface board and without anything plugged into the USB host socket, you can
power the terminal through the USB device socket, from:
• ePOS equipment or a PC
• a USB adaptor
• a Merchant Unit
YOMANI XR without Merchant Unit
Connect the country-specific mains cable to the mains adaptor and plug it into the
mains power socket. The display lights up and the terminal is ready for use.
YOMANI XR with Merchant Unit

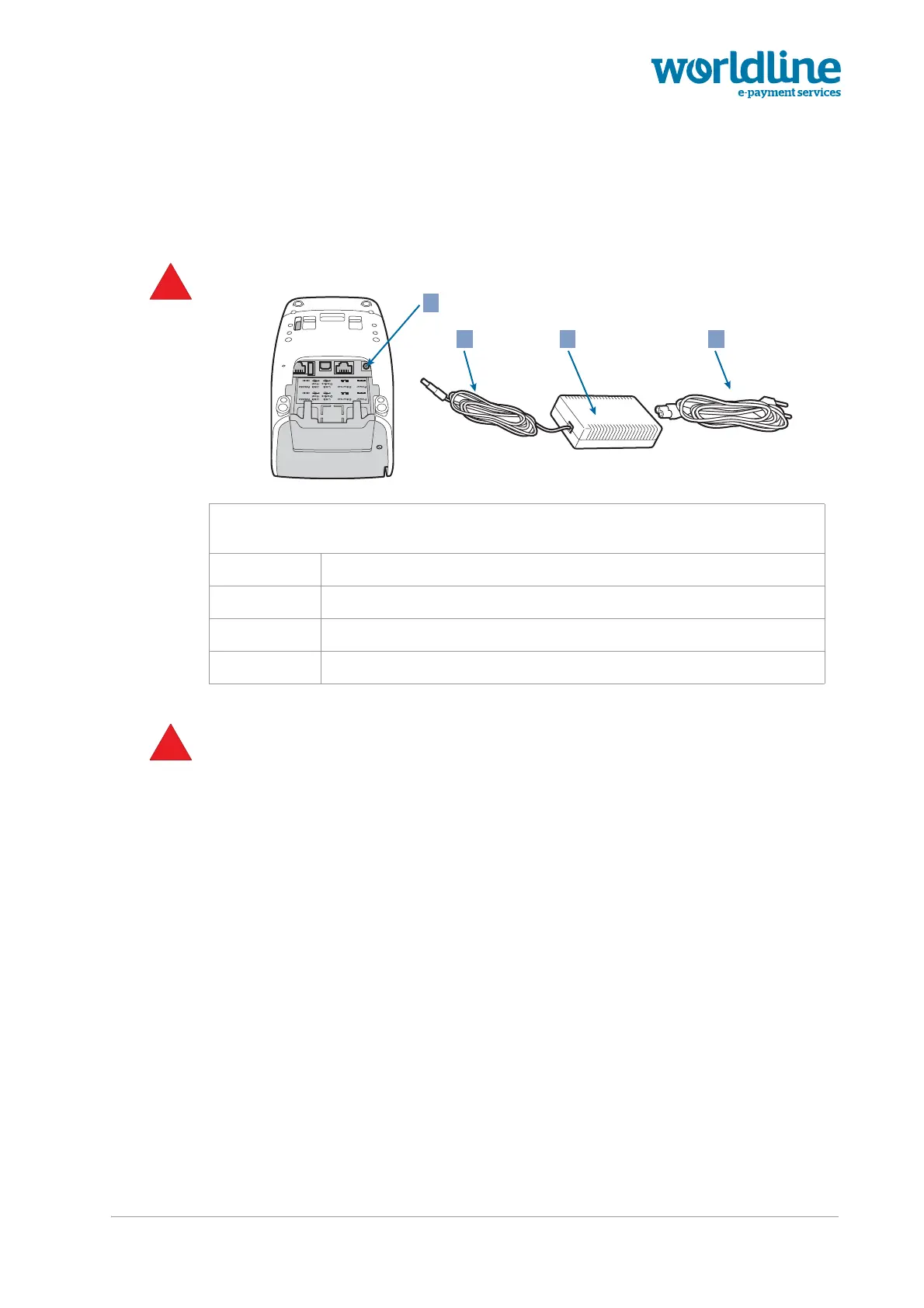

Figure 40. Powering YOMANI XR with mains adaptor
1 power input socket
2 power cable (from mains adaptor to terminal)
3 mains adaptor
4 mains cable (to mains power socket)
YOMANI XR TERMINAL
Manufactured by Atos
Worldline SA/NV
Made in Singapore
Article N°: 90700000001
Serial N°: AVT7491
Registered Design
1235
®
6,5V 3,2A
1
3 42
