Always connect the Merchant Unit to the mains adaptor before plugging the mains
cable into the mains power socket.
1. Connect the YOMANI XR correctly to the Merchant Unit.
See Connecting the Merchant Unit - optional, on page [xref].
2. Connect the Merchant Unit to the mains adaptor.
3. Tie-wrap the power cable to the power-cable strain relief.
4. Connect the mains cable to the mains adaptor and plug it into the mains power
socket.
Both displays light up and the YOMANI XR is ready for use.

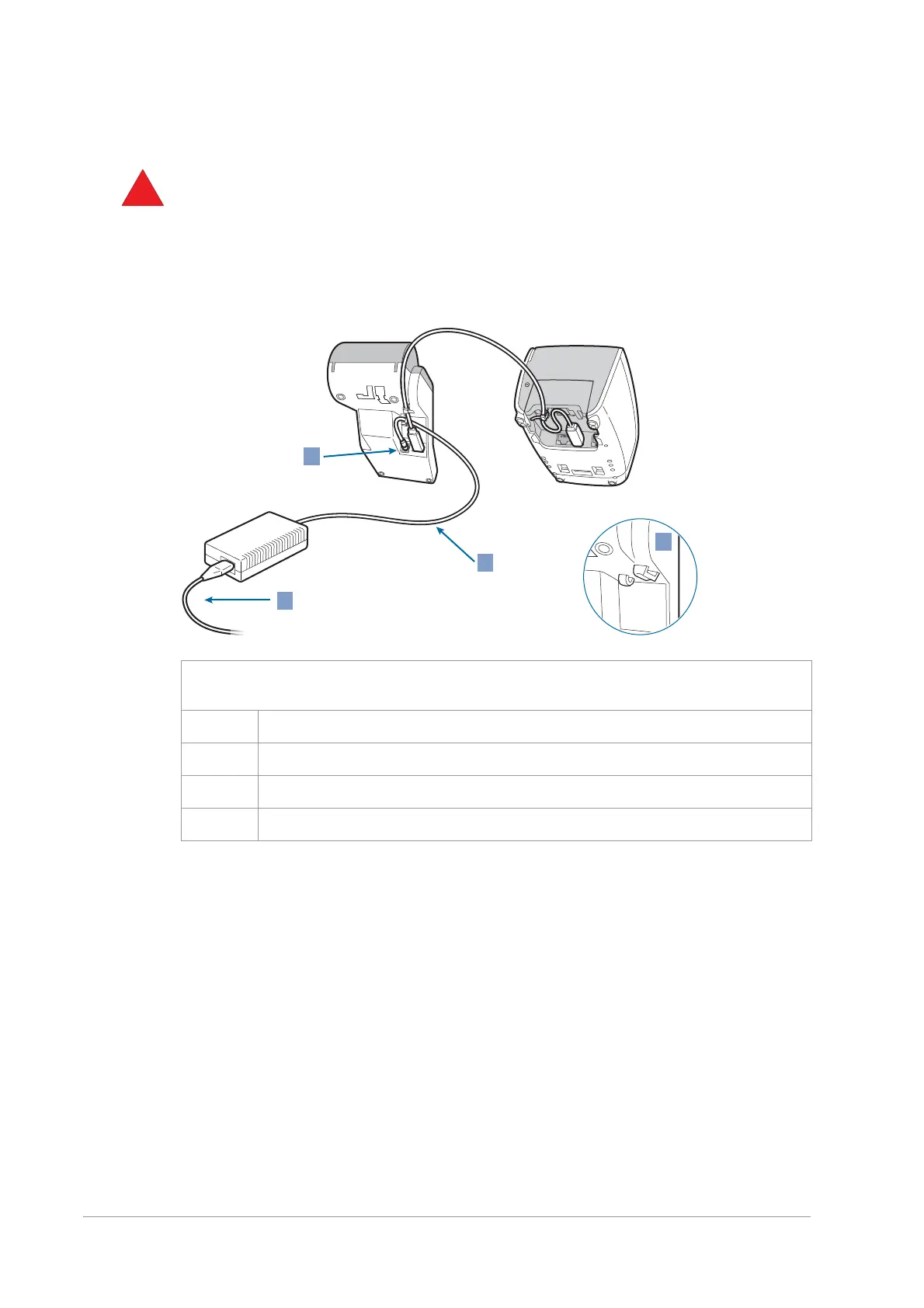

Figure 41. Power cable tie-wrapped to Merchant Unit
1 mains cable (to mains power socket)
2 power cable (from mains adaptor to Merchant Unit)
3 power input socket (Merchant Unit)
4 strain-relief points on Merchant Unit
