AFFZP0BB – ACE3 – User Manual Page – 13/139
3 DRAWINGS

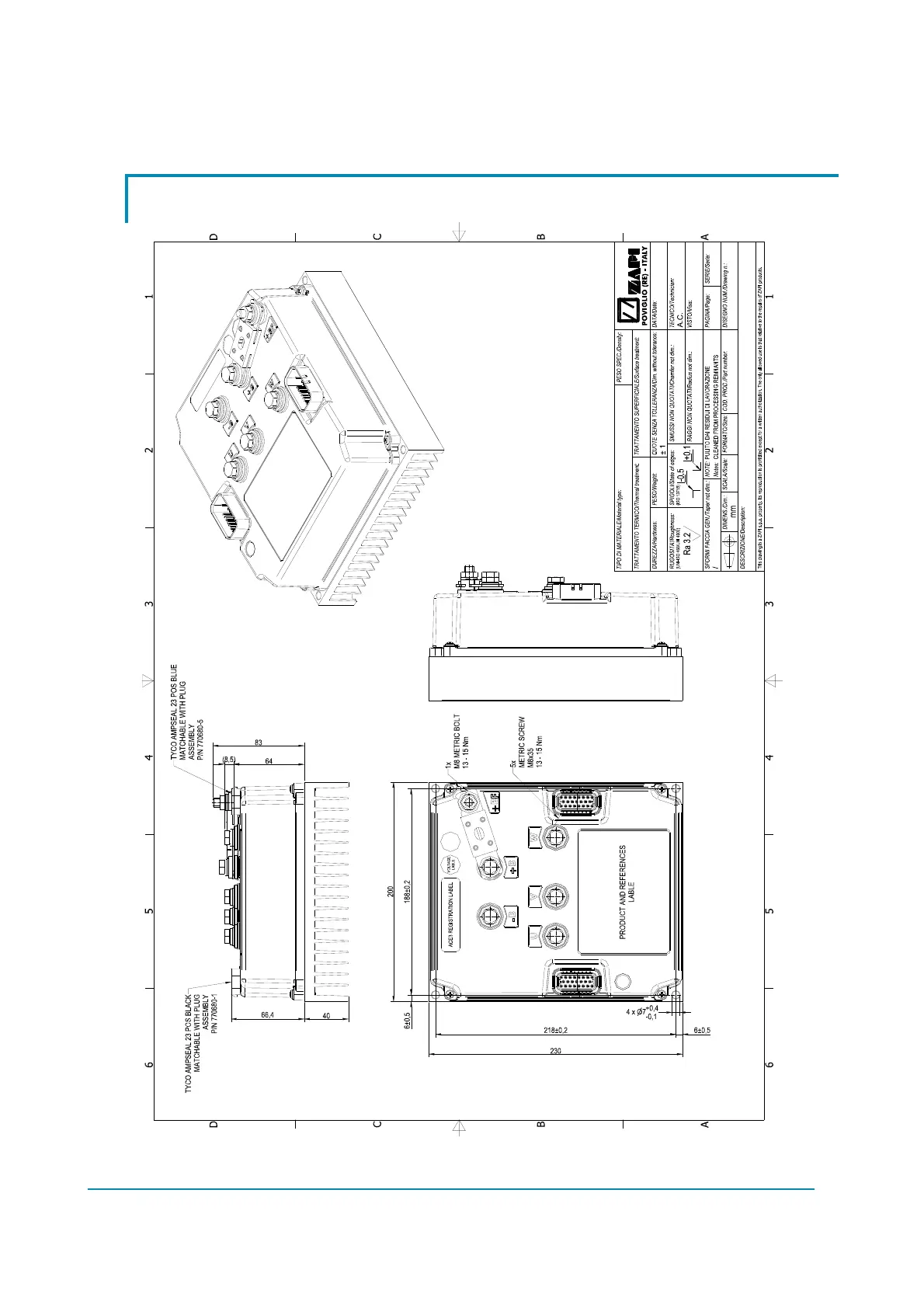

3.1 Mechanical drawing – ACE3 / ACE3 Power
/
//
/
0.5 X 45°
R 0.5
1:2
A3
/
ACE3 PREMIUM 200X40X230 LONGITUDINAL HEAT SINK WITH POWER FUSE
1/1 AS
21/10/11
AFFZP7DA
Other versions (without power fuse, with base-plate and with other heat sinks) exist.
