ZCS AZZURRO 1PH HYD3000-ZP1 User Manual

User’s Manual 1PH HYD3000-HYD6000-ZP1
Rev. 1.
0 01/09/2023
Identification: MD-AL-GI-00
Rev. 1.1 of
27/01/2023 - Application: GID
11/193
1.2. Product capacity description
The 1PH HYD3000-HYD6000-ZP1 series residential energy storage system supports power and capacity
expansion and supports up to six inverter modules in parallel. One inverter module supports up to four batteries
expansion modules. (in case of 4 batteries you need to buy the extension kit, code ZZT-ZBT5K-EXT-KIT).

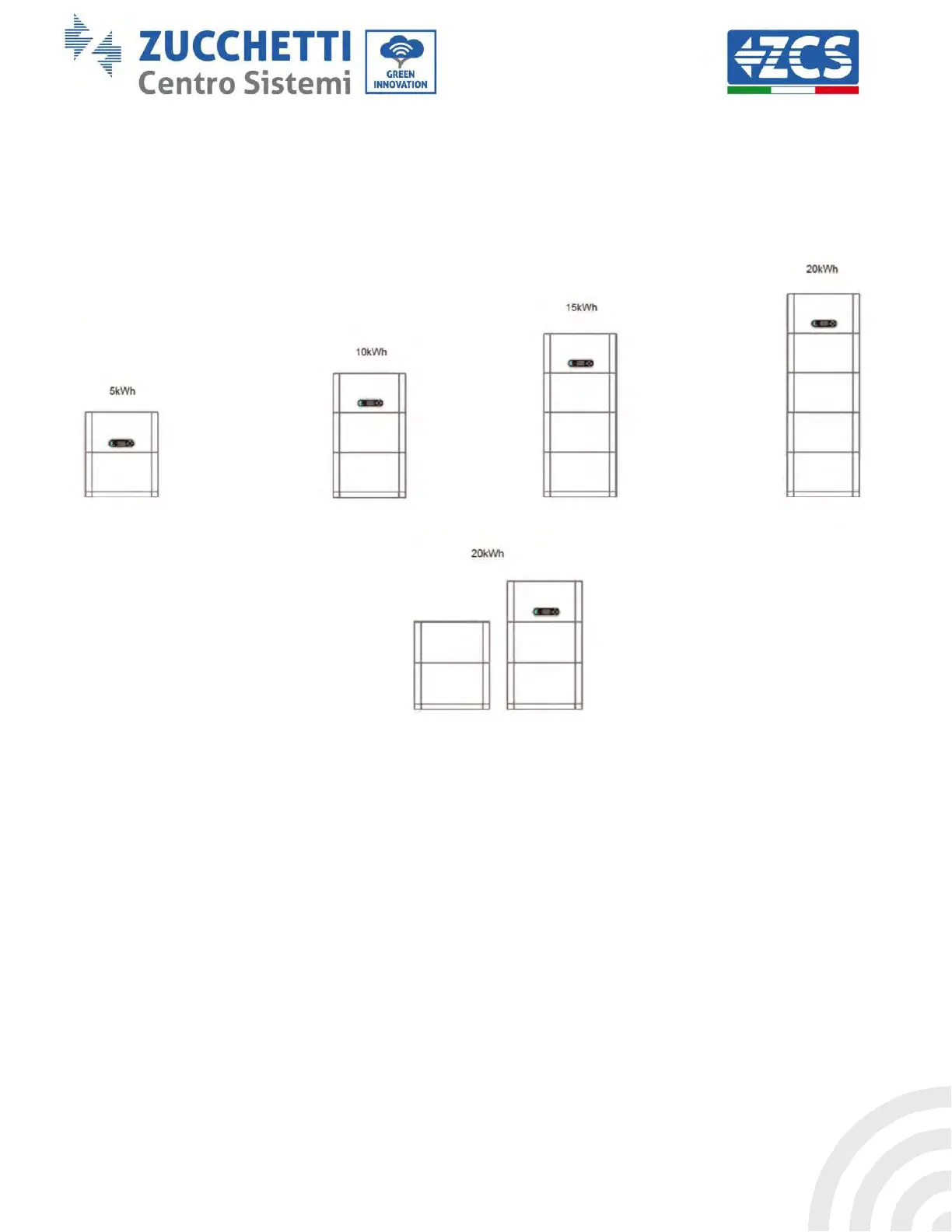

Figure 4 – Storage capacity descrition

ZCS AZZURRO 1PH HYD3000-ZP1 Specifications

General

Max. DC Voltage	550 V
Nominal AC Voltage	230 V
DC Connection	MC4
Protection Degree	IP65
Cooling	Natural convection
AC Voltage Range	180-276 V
Max. Efficiency	97.6 %
Operating Temperature Range	-25°C to +60°C
Frequency	50/60 Hz
Efficiency	97.6 %
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Over Temperature
Storage Temperature	-40 °C / +70 °C
Humidity	0-100% (non-condensing)
