ZCS AZZURRO 1PH HYD3000-ZP1 User Manual

User’s Manual 1PH HYD3000-HYD6000-ZP1
Rev. 1.
0 01/09/2023
Identification: MD-AL-GI-00
Rev. 1.1 of
27/01/2023 - Application: GID
52/193

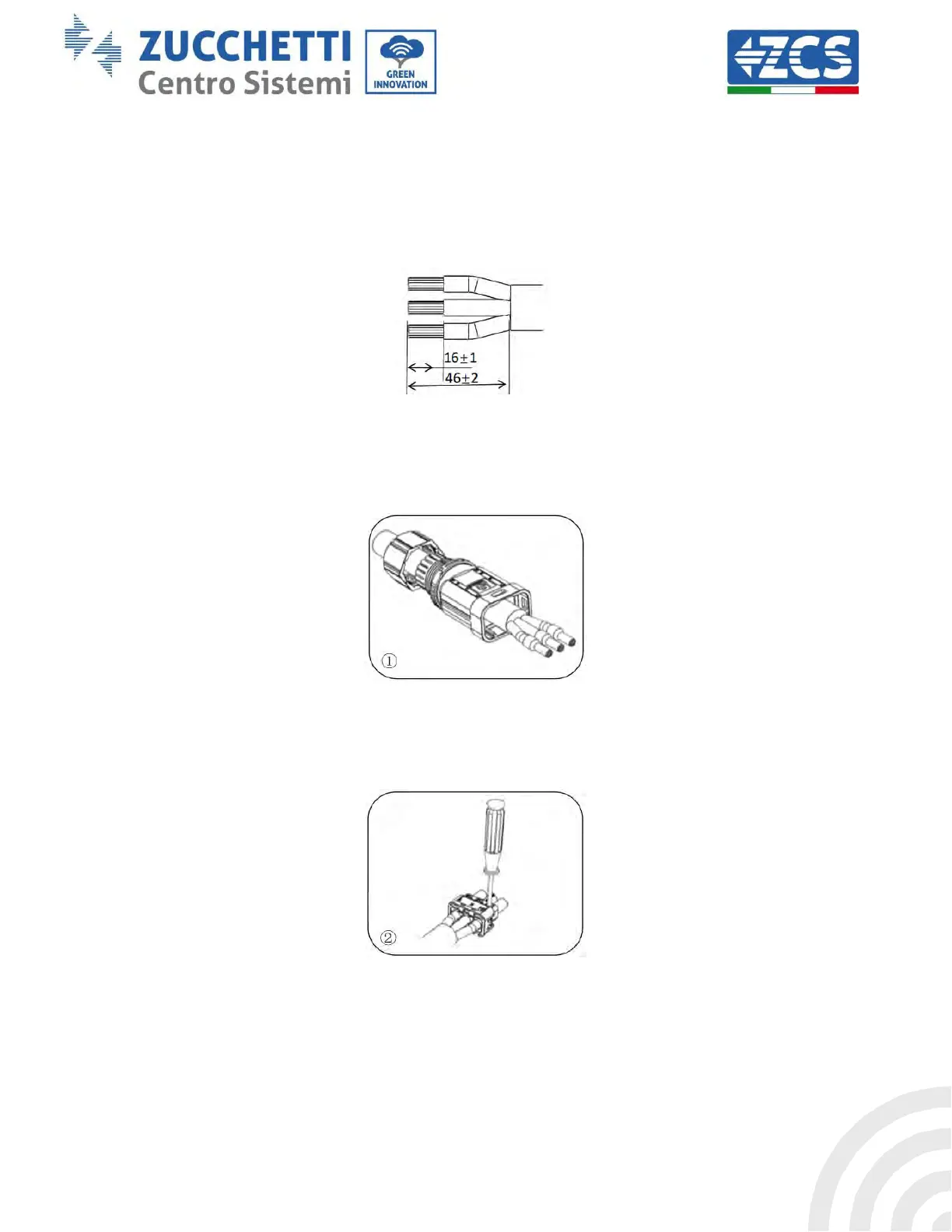

6.2. Grid connection
Install AC wiring terminals
Take out AC wiring terminals from the carton of the inverter, strip and install cables according to the
appropriate specifications
Figure 28 – Wire stripping size
Step 1: After riveting the peeling wire to the insulation terminal, thread it into the lock wire nut and the main
body.
Step 2: Insert the cable into the rubber core according to the wire sequence, make the insulation terminal flush
with the surface of the rubber core, and press the screw torque 2.0± 0.1n.m

ZCS AZZURRO 1PH HYD3000-ZP1 Specifications

General

Max. DC Voltage	550 V
Nominal AC Voltage	230 V
DC Connection	MC4
Protection Degree	IP65
Cooling	Natural convection
AC Voltage Range	180-276 V
Max. Efficiency	97.6 %
Operating Temperature Range	-25°C to +60°C
Frequency	50/60 Hz
Efficiency	97.6 %
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Over Temperature
Storage Temperature	-40 °C / +70 °C
Humidity	0-100% (non-condensing)
