User’s Manual 1PH HYD3000-HYD6000-ZP1
Rev. 1.
0 01/09/2023
Identification: MD-AL-GI-00
Rev. 1.1 of
27/01/2023 - Application: GID
36/193
5. Electrical Connection for the internal system
5.1. Internal protection grounding cable connection up to 3 batteries

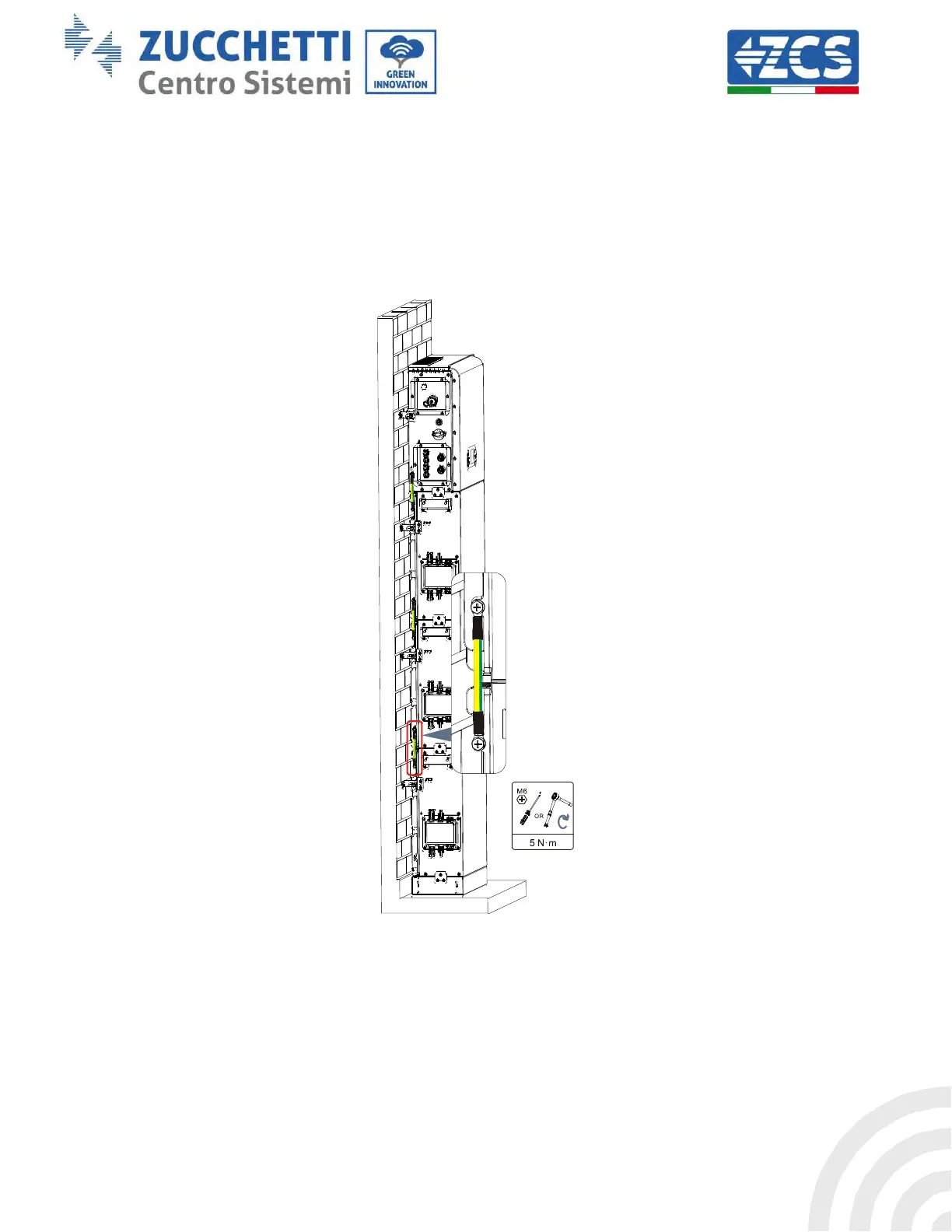

Connect the grounding cables of the battery module and inverter as shown in below Figure.
Figure 16– Internal grounding connection
