15. Monitoring systems

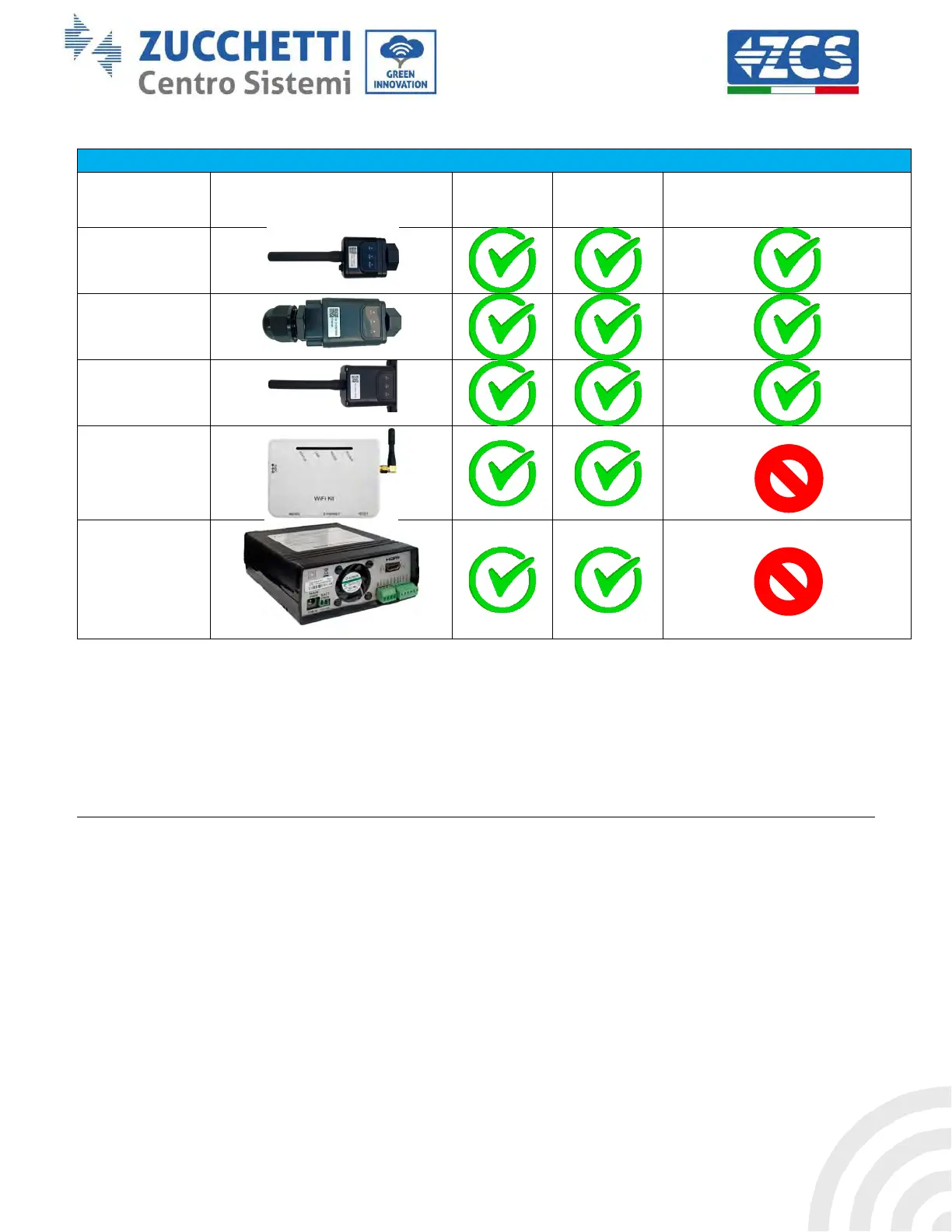

ZCS monitoring
Product code
Product photo
APP
monitoring
Portal
monitoring
Possibility to send commands and
to update the inverter remotely in
case of technical support
ZSM-WIFI
ZSM-ETH
ZSM-4G
Datalogger 4-
10 Inverters
Datalogger
up to 31
Inverters
15.1. External Wi-Fi adapter
15.1.1. Installation
Unlike the internal Wi-Fi card, the external adapter must be installed for all compatible inverters. However,
the procedure is quicker and easier as there is no need to open the front cover of the inverter.
In order to monitor the inverter, the RS485 communication address must be set to 01 directly from the display.
Installation tools:
• Cross screwdriver
• External Wi-Fi adapter
1) Switch off the inverter following the procedure described in this manual.
2) Remove the cover for accessing the Wi-Fi connector on the bottom of the inverter by unscrewing the two
cross-head screws (a), or by unscrewing the cover (b), as shown in the figure.

ZCS AZZURRO 1PH HYD3000-ZP1 Specifications

General

Max. DC Voltage	550 V
Nominal AC Voltage	230 V
DC Connection	MC4
Protection Degree	IP65
Cooling	Natural convection
AC Voltage Range	180-276 V
Max. Efficiency	97.6 %
Operating Temperature Range	-25°C to +60°C
Frequency	50/60 Hz
Efficiency	97.6 %
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Over Temperature
Storage Temperature	-40 °C / +70 °C
Humidity	0-100% (non-condensing)
