5.3. Internal communication cable connection up to 3 batteries
Connect the communication terminals of the inverter and battery module from top to bottom according to
internal protection grounding in the following figure, and secure them with cable ties. In addition, install a
matching resistor on the communication interface of the last battery module in the system.
In detail:
- COM 1 of the Inverter  Link Port IN of the battery module 1.
- Link Port OUT of the battery module 1  Link Port IN of the battery module 2.
- Link Port OUT of battery module 2  Link Port IN of battery module 3.
- Insert the termination resistor on Link Port OUT of the battery module 3.

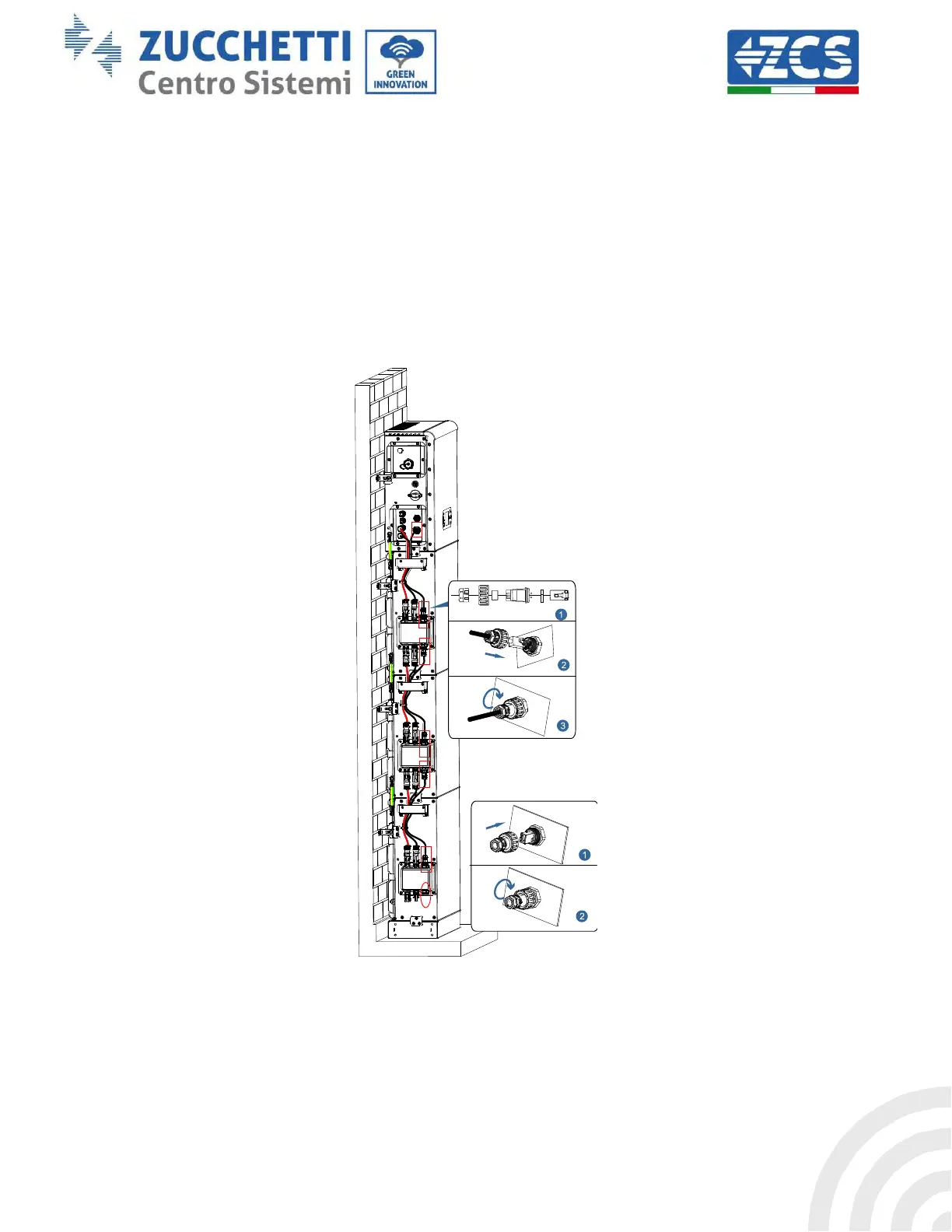

Figure 18 – Internal signal cable connection

ZCS AZZURRO 1PH HYD3000-ZP1 Specifications

General

Max. DC Voltage	550 V
Nominal AC Voltage	230 V
DC Connection	MC4
Protection Degree	IP65
Cooling	Natural convection
AC Voltage Range	180-276 V
Max. Efficiency	97.6 %
Operating Temperature Range	-25°C to +60°C
Frequency	50/60 Hz
Efficiency	97.6 %
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Over Temperature
Storage Temperature	-40 °C / +70 °C
Humidity	0-100% (non-condensing)
