5.2. Power cables connection up to 3 batteries

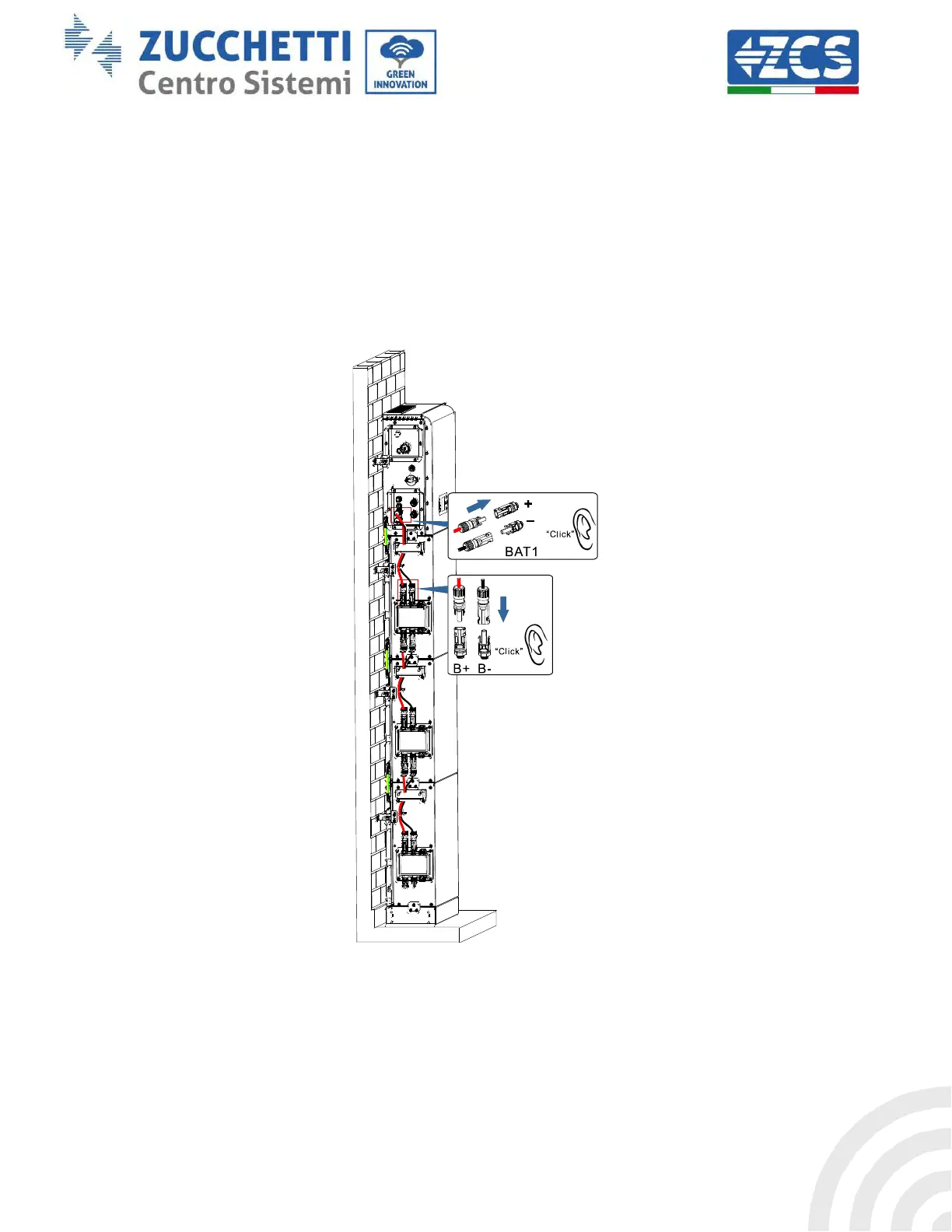

As shown in below Figure, connect the power ports (BAT+, BAT-) of the inverter to the cascading positive and
negative power cables (B+,B -) of the battery module. Connect the remaining battery modules from top to
bottom, and secure the cables with cable ties. Ensure that the cables are securely connected.
In detail:
- (BAT +, BAT -) inverter connected in parallel to (B+, B-) battery module 1.
- (B+, B-) battery module 1 connected in parallel to (B+, B-) battery module 2.
- (B+, B-) battery module 2 connected in parallel to (B+, B-) battery module 3.
Figure 17 – Connection of battery internal DC terminal

ZCS AZZURRO 1PH HYD3000-ZP1 Specifications

General

Max. DC Voltage	550 V
Nominal AC Voltage	230 V
DC Connection	MC4
Protection Degree	IP65
Cooling	Natural convection
AC Voltage Range	180-276 V
Max. Efficiency	97.6 %
Operating Temperature Range	-25°C to +60°C
Frequency	50/60 Hz
Efficiency	97.6 %
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Over Temperature
Storage Temperature	-40 °C / +70 °C
Humidity	0-100% (non-condensing)
