ZCS AZZURRO 1PH HYD3000-ZP1 User Manual

User’s Manual 1PH HYD3000-HYD6000-ZP1
Rev. 1.
0 01/09/2023
Identification: MD-AL-GI-00
Rev. 1.1 of
27/01/2023 - Application: GID
46/193
5.8. Configuration 4 batteries

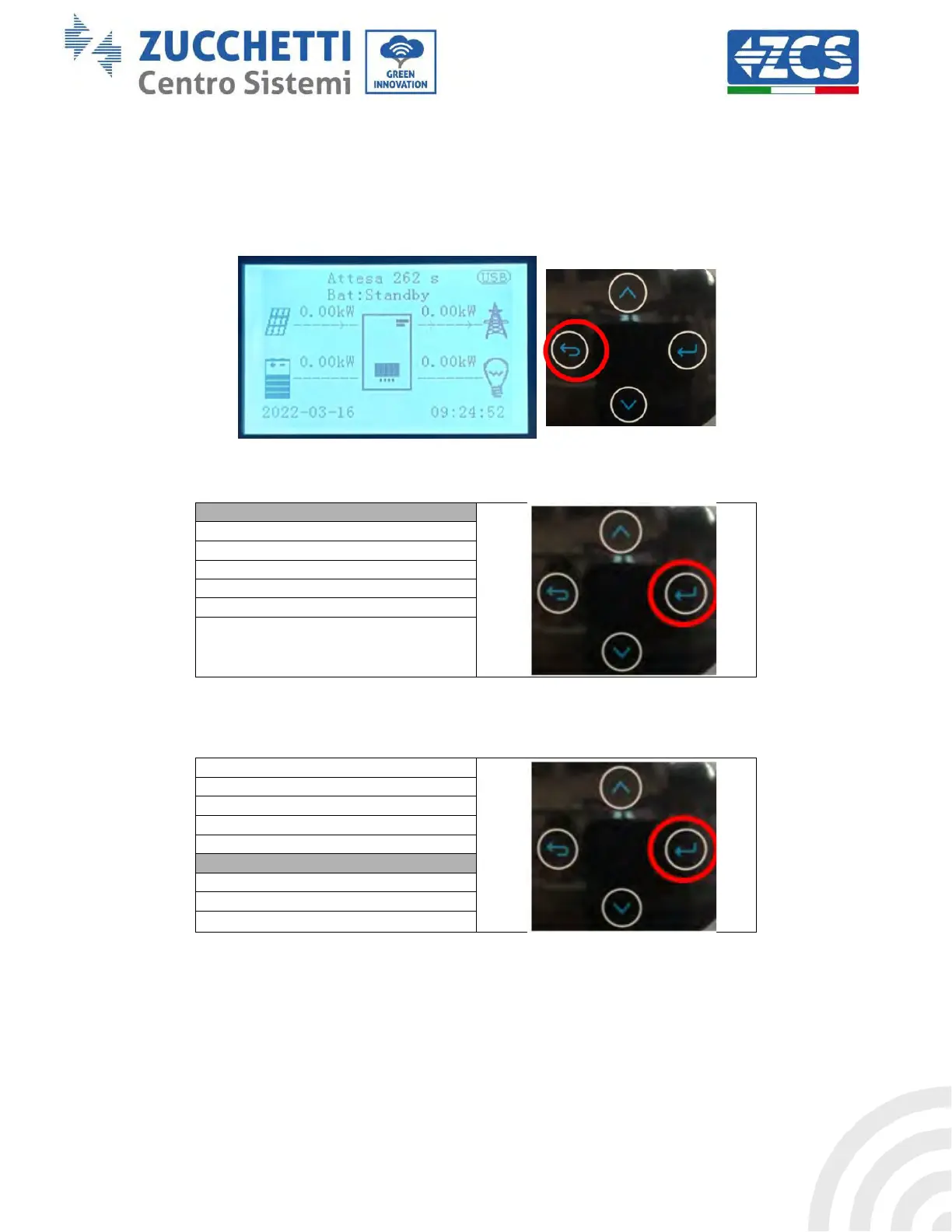

To properly configure the inverter channels:
1. Press the first button on the left of the display:
2. Press the last right arrow (enter) to access the basic settings:
1. Basic settings
2. Advanced settings
3. Production statistics
4. About the system
5. List of events
6. SW Update
3. In Basic Settings, press the down arrow until Channel Configuration is highlighted. Now press the last
right arrow to access the settings:
1. Language
2. Date and time
3. Safety parameters
4. Operating mode
5. Car test
6. Channel configuration
7. EPS mode
8. Address of communication

ZCS AZZURRO 1PH HYD3000-ZP1 Specifications

General

Max. DC Voltage	550 V
Nominal AC Voltage	230 V
DC Connection	MC4
Protection Degree	IP65
Cooling	Natural convection
AC Voltage Range	180-276 V
Max. Efficiency	97.6 %
Operating Temperature Range	-25°C to +60°C
Frequency	50/60 Hz
Efficiency	97.6 %
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Over Temperature
Storage Temperature	-40 °C / +70 °C
Humidity	0-100% (non-condensing)
