ZCS AZZURRO 1PH HYD3000-ZP1 User Manual

User’s Manual 1PH HYD3000-HYD6000-ZP1
Rev. 1.
0 01/09/2023
Identification: MD-AL-GI-00
Rev. 1.1 of
27/01/2023 - Application: GID
140/193
(a)
(b)

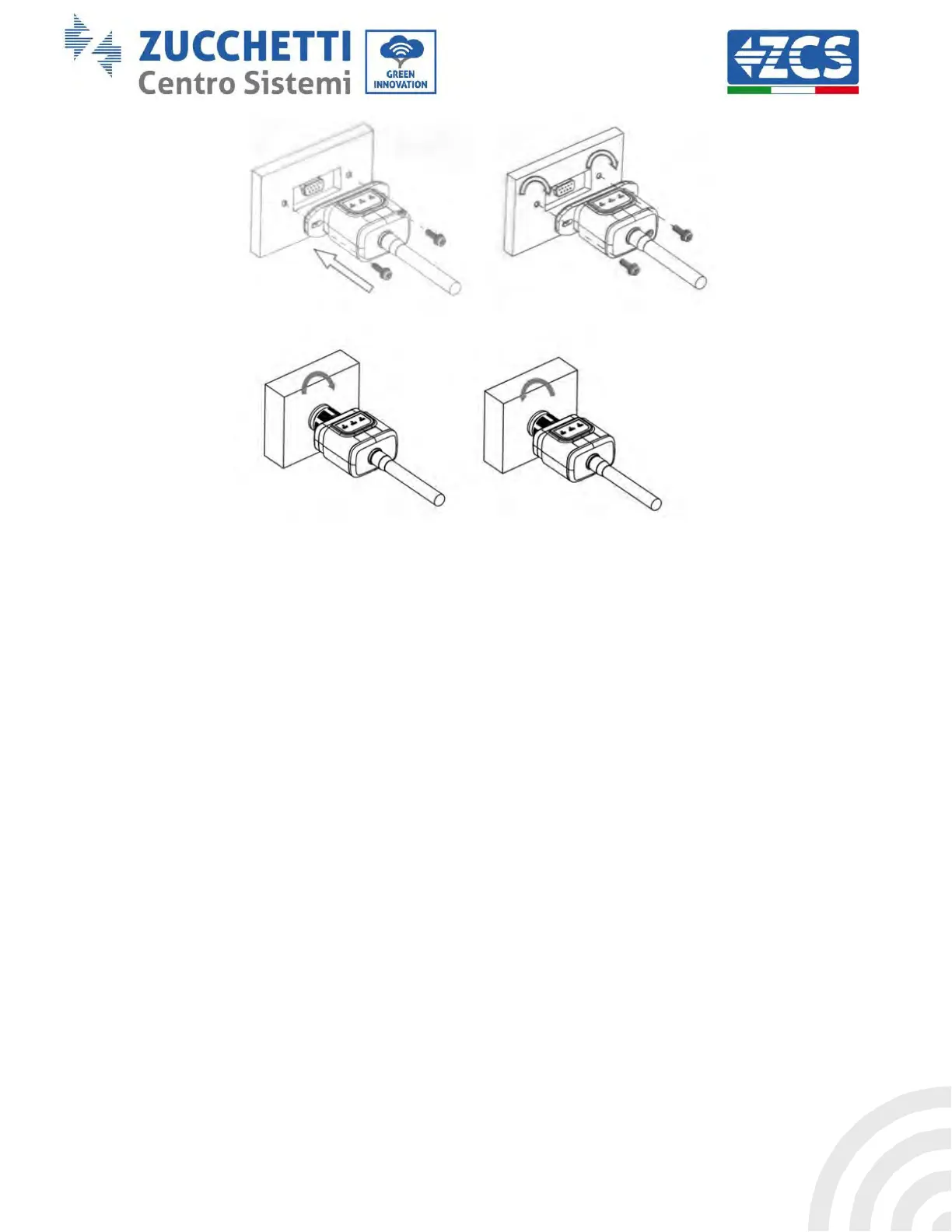

Figure 61– Inserting and securing the external Wi-Fi adapter
4) Switch on the inverter by following the procedure described in the manual.
15.1.2. Configuration
Configuration of the Wi-Fi adapter requires the presence of a Wi-Fi network near the inverter in order to
achieve stable transmission of data from the inverter adapter to the Wi-Fi modem.
Tools required for configuration:
• Smartphone, PC or tablet
Go to front of the inverter and search for the Wi-Fi network using a smartphone, PC or tablet, making sure that
the signal from the home Wi-Fi network reaches the place where the inverter is installed.
If the Wi-Fi signal is present at the location where the inverter is installed, the configuration procedure can
begin.
If the Wi-Fi signal does not reach the inverter, a system must be installed to amplify the signal and bring it to
the installation location.
1) Activate the search for the Wi-Fi networks on your telephone or PC so that all the networks visible by
your device are displayed.

ZCS AZZURRO 1PH HYD3000-ZP1 Specifications

General

Max. DC Voltage	550 V
Nominal AC Voltage	230 V
DC Connection	MC4
Protection Degree	IP65
Cooling	Natural convection
AC Voltage Range	180-276 V
Max. Efficiency	97.6 %
Operating Temperature Range	-25°C to +60°C
Frequency	50/60 Hz
Efficiency	97.6 %
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Over Temperature
Storage Temperature	-40 °C / +70 °C
Humidity	0-100% (non-condensing)
