ZCS AZZURRO 1PH HYD3000-ZP1 User Manual

User’s Manual 1PH HYD3000-HYD6000-ZP1
Rev. 1.
0 01/09/2023
Identification: MD-AL-GI-00
Rev. 1.1 of
27/01/2023 - Application: GID
65/193

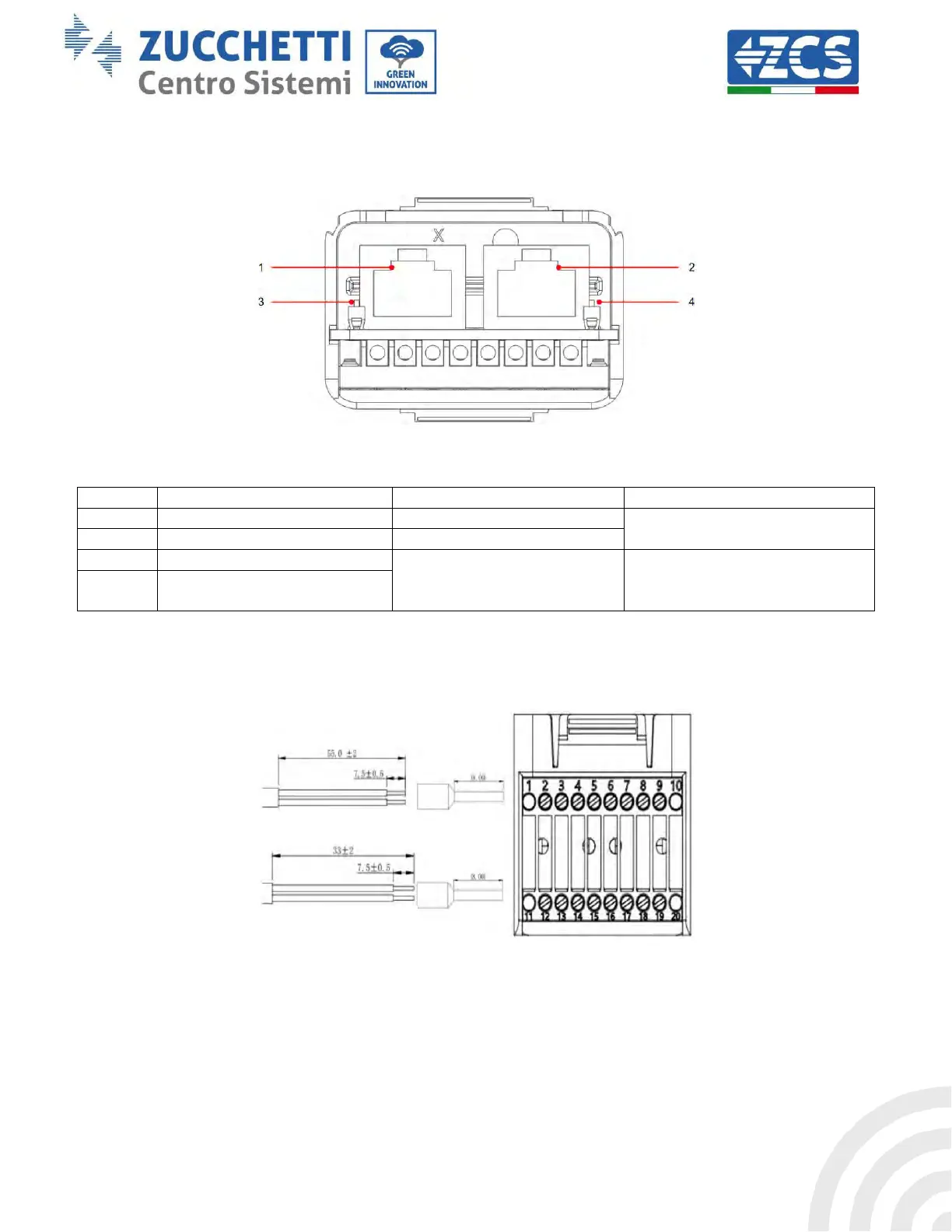

6.6. Link Port
Figure 38 - Link Port diagram
Icon
Define
Function
Comment
1
Link Port 1
Parallel signal output
Parallel signal port（RJ45）
2
Link Port 0
Parallel signal input
3
Link Port 1 dip switch
Match resistance on and off
The dial switch has 0 (dial up)
and 1 (dial down). 1 means on
and 0 means off
4 Link Port 0 dip switch
The wire stripping is divided into 2 to 9 holes and 12 to 19 holes. The wire stripping size is defined according
to the cable connection position.
Figure 39 - Schematic diagram of wire stripping size
2-9 position stripper size
12-19 hole stripping size

ZCS AZZURRO 1PH HYD3000-ZP1 Specifications

General

Max. DC Voltage	550 V
Nominal AC Voltage	230 V
DC Connection	MC4
Protection Degree	IP65
Cooling	Natural convection
AC Voltage Range	180-276 V
Max. Efficiency	97.6 %
Operating Temperature Range	-25°C to +60°C
Frequency	50/60 Hz
Efficiency	97.6 %
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Over Temperature
Storage Temperature	-40 °C / +70 °C
Humidity	0-100% (non-condensing)
