User’s Manual 1PH HYD3000-HYD6000-ZP1
Rev. 1.
0 01/09/2023
Identification: MD-AL-GI-00
Rev. 1.1 of
27/01/2023 - Application: GID
68/193
6.9. CT
If you need to use the CT alone, attach the CT to PIN18 and PIN19.
There are two ways to get grid current information :
Plan A:CT(default) Plan B:Meter

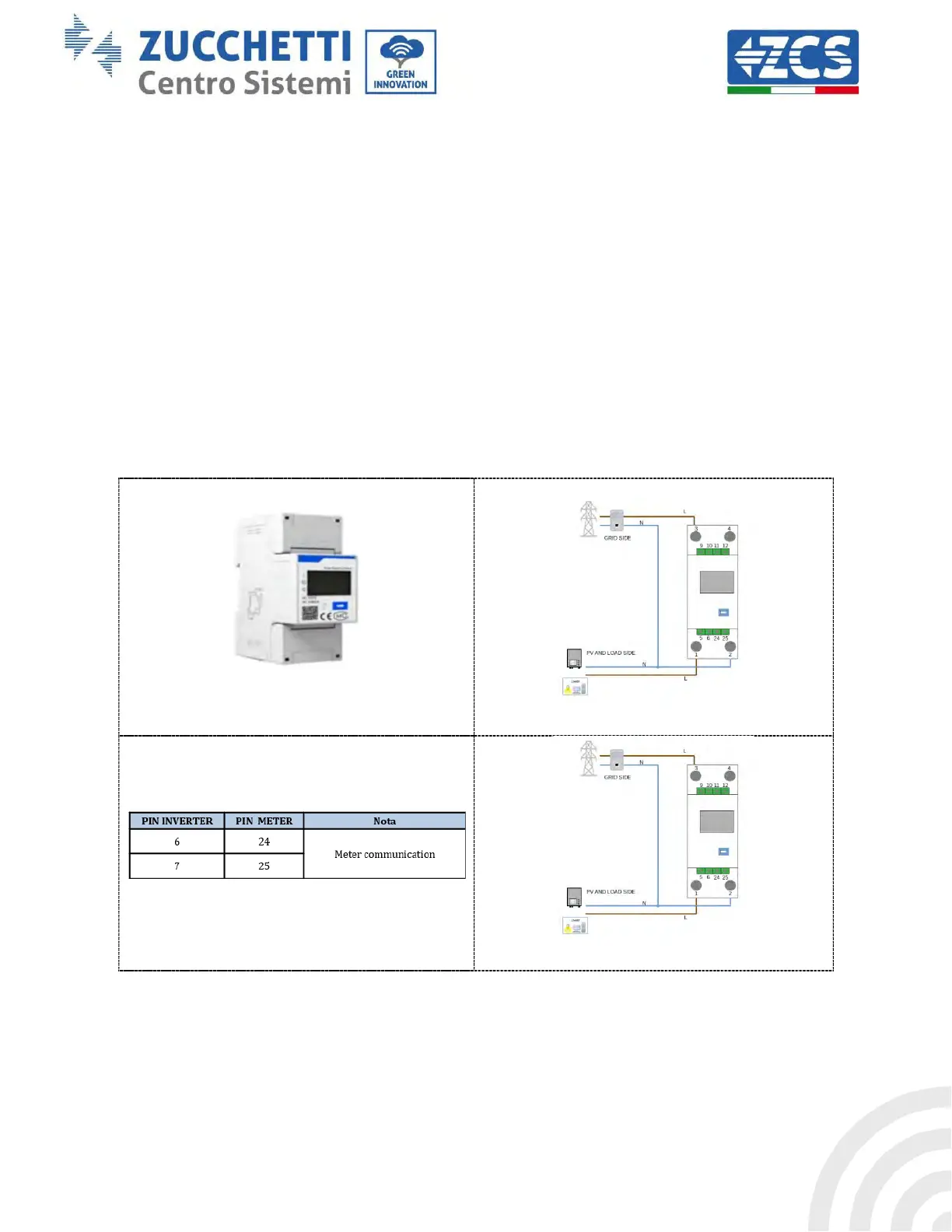

6.10. Meter single-phase DDSU
PIN6 and PIN7 are used for communication with the meter; the meter is shown in “Figure 1”, PIN6 and PIN7
on the inverter COM port correspond to points 24 and 25 respectively on the electricity meter, as shown in
“Figure 3.”
The connection method in the case of reading at the exchange is shown in “Figure 2”.
In the case of external production reading, the connection method is shown in “Figure 4.”
Figure1
Figure 2
Figure 3
Figure 4

ZCS AZZURRO 1PH HYD3000-ZP1 Specifications

General

Max. DC Voltage	550 V
Nominal AC Voltage	230 V
DC Connection	MC4
Protection Degree	IP65
Cooling	Natural convection
AC Voltage Range	180-276 V
Max. Efficiency	97.6 %
Operating Temperature Range	-25°C to +60°C
Frequency	50/60 Hz
Efficiency	97.6 %
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Over Temperature
Storage Temperature	-40 °C / +70 °C
Humidity	0-100% (non-condensing)
