ZCS AZZURRO 1PH HYD3000-ZP1 User Manual

User’s Manual 1PH HYD3000-HYD6000-ZP1
Rev. 1.
0 01/09/2023
Identification: MD-AL-GI-00
Rev. 1.1 of
27/01/2023 - Application: GID
50/193
Set the discharge depth and discharge depth in EPS.
For example, if the discharge depth = 50% and the discharge depth EPS = 80%, while the network is
connected: the inverter does not discharge the battery when the SOC is less than 50%.
In case of power failure: the inverter will operate in EPS mode (if EPS mode is enabled) and will continue to
drain the battery until the battery SOC is not less than 20%.
Discharge depth
50%
Depth of discharge EPS
80%
EPS Safety Safety Buffer
20%
5.9. Data collector connection
Connect the standard WIFI/4G collector in the inverter package according to electrical connection in the
following figure.

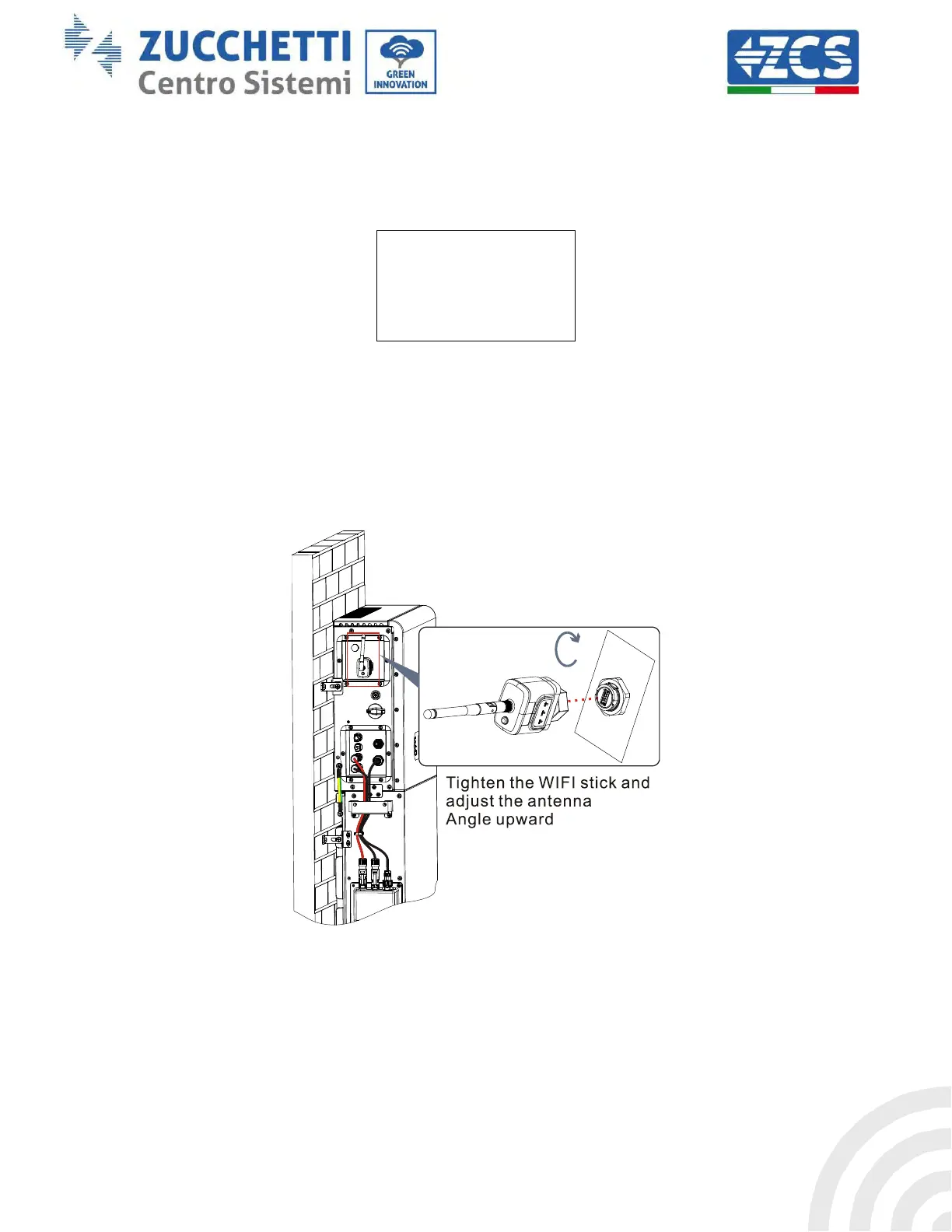

Figure 25 – WIFI/4G connection

ZCS AZZURRO 1PH HYD3000-ZP1 Specifications

General

Max. DC Voltage	550 V
Nominal AC Voltage	230 V
DC Connection	MC4
Protection Degree	IP65
Cooling	Natural convection
AC Voltage Range	180-276 V
Max. Efficiency	97.6 %
Operating Temperature Range	-25°C to +60°C
Frequency	50/60 Hz
Efficiency	97.6 %
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Over Temperature
Storage Temperature	-40 °C / +70 °C
Humidity	0-100% (non-condensing)
