Zebra 105SL Plus User Manual

Routine Maintenance
Adjust Transmissive Media Sensors
116
P1056468-002 105SLPlus™ User Guide 7/3/13

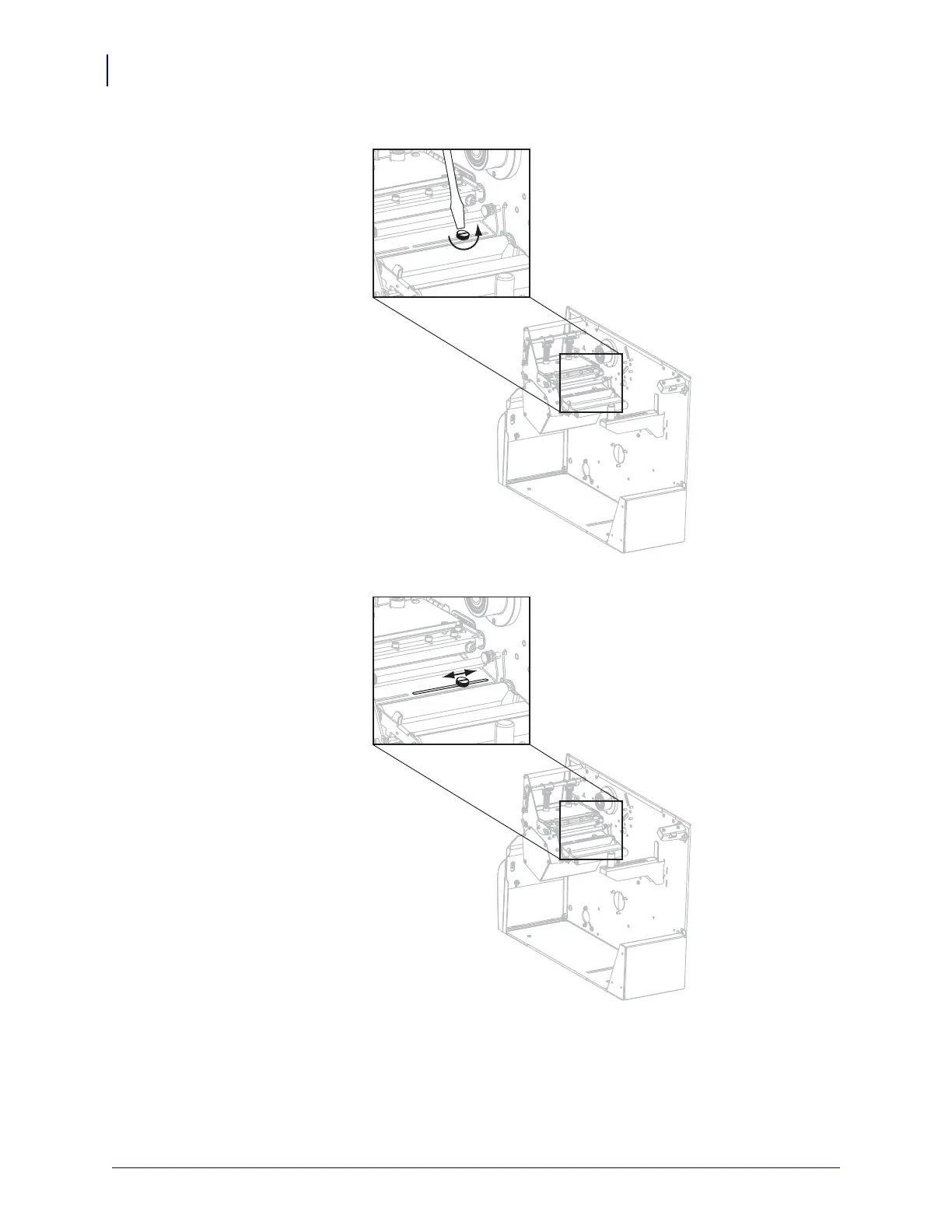

3. Using a thin, flat-blade screwdriver, loosen the upper media sensor adjustment screw.
4. Slide the upper media sensor along the slot to the desired position.
XX
YY
ZZ
XX
YY
ZZ

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
