Zebra 105SL Plus User Manual

Routine Maintenance

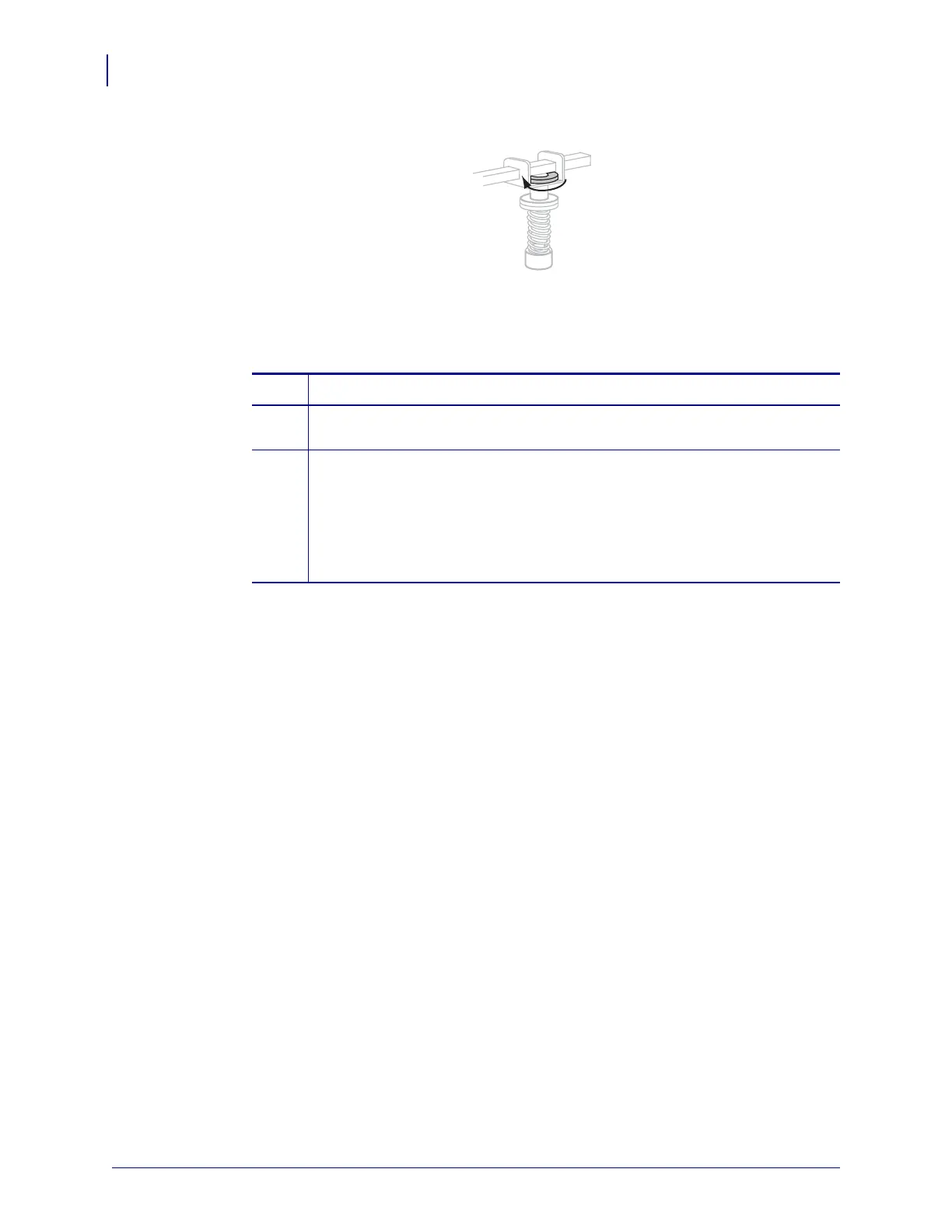

Adjust Printhead Pressure and Toggle Position
120
P1056468-002 105SLPlus™ User Guide 7/3/13
5. Tighten the locking nuts.
6. Print additional labels at 2 in. (51 mm) per second by again running the PAUSE Self Test.
(Press and hold
PAUSE while turning on (I) the printer.)
7. Do both sides of the label print at the same level of gray?
If… Then…
Yes The toggles are positioned correctly. Increase the darkness setting to the
optimum level for the media being used.
No
a. Readjust the position of the toggle or toggles toward the side that printed
lighter.
b. Print additional labels at 2 in. (51 mm) per second by again running the
PAUSE Self Test. (Press and hold
PAUSE while turning on (I) the printer.)
c. Repeat this step until both sides of the label print at the same level of gray.
d. Increase the darkness setting to the optimum level for the media being used.

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
