Introduction

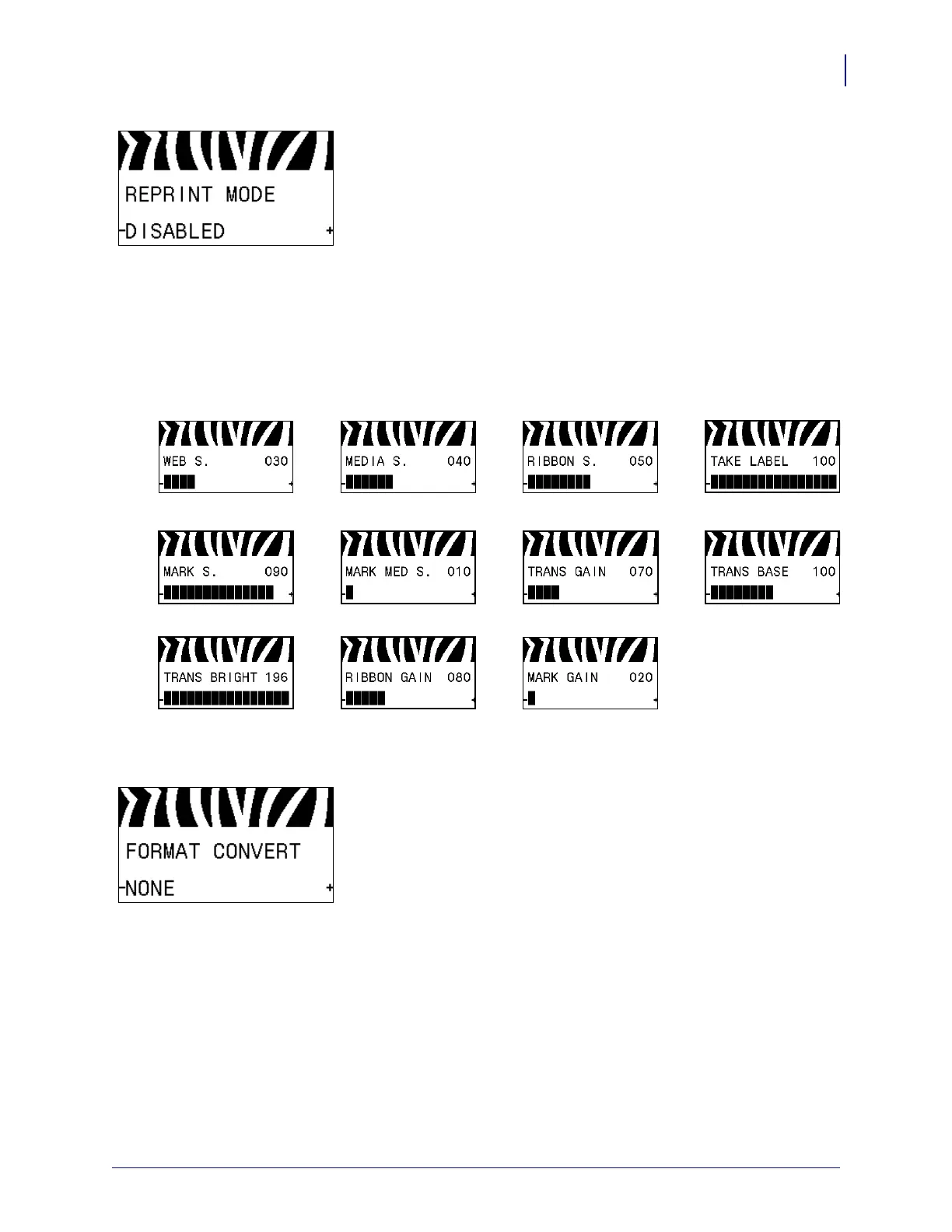

Control Panel Display
7/3/13 P1056468-002
Set the Reprint Mode
When reprint mode is enabled, you can reprint the last label printed
either by issuing certain commands or by pressing the LEFT
ARROW on the control panel.
See Reprint Mode on page 88 for more information.
View Sensor Settings
The following parameters are automatically set during the
calibration procedure and should be changed only by a qualified
service technician.
Select Format Conversion Scaling Factor
Selects the bitmap scaling factor. The first number is the original
dots per inch (dpi) value; the second, the dpi to which you would
like to scale.
See Format Conversion on page 94 for more information.

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
