69
Printer Setup and Operation
Load the Media
7/3/13 P1056468-002

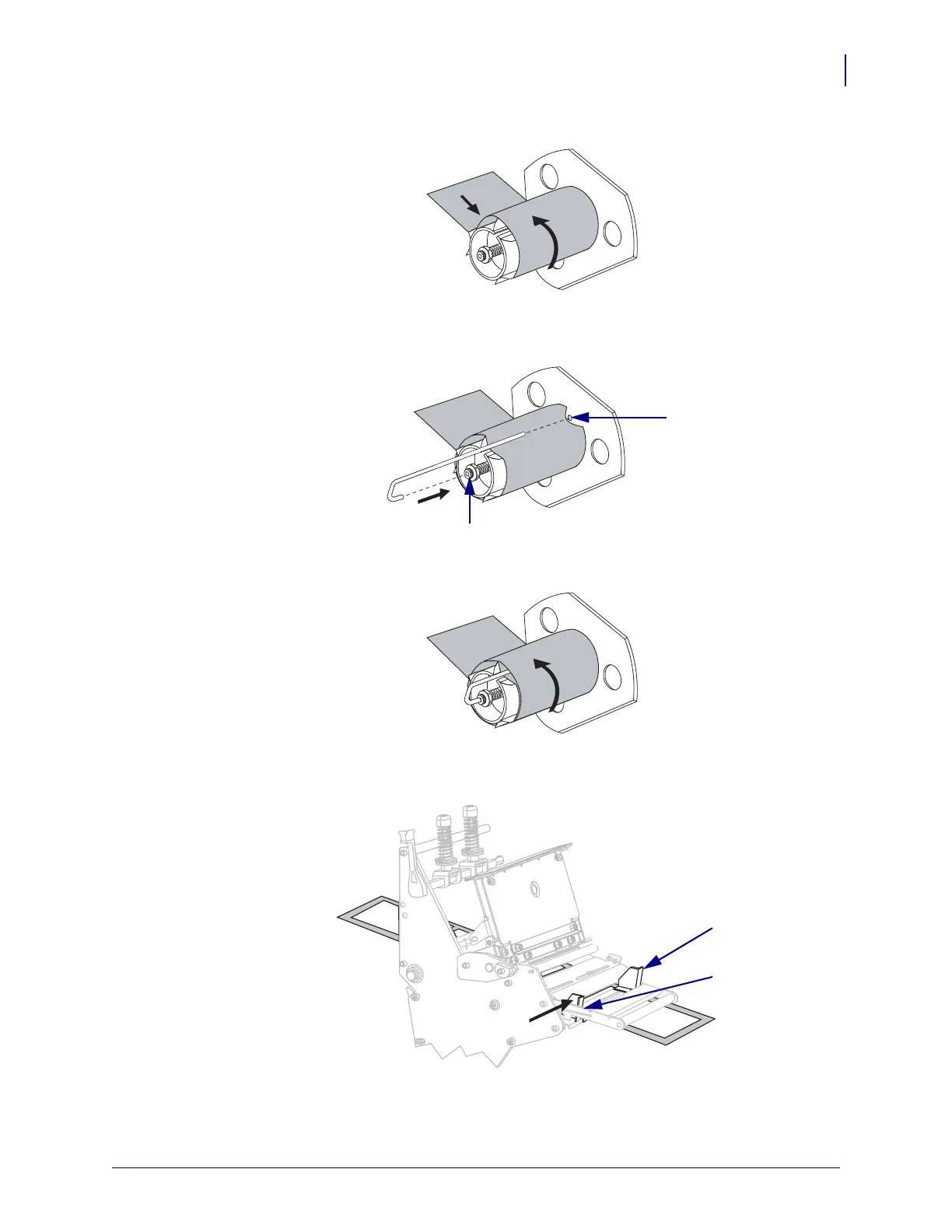

12. Wind the media liner counterclockwise around the rewind spindle.
a. Reinstall the hook. Insert the short end of the hook into the hole in the center of the
adjusting nut (
1). Insert the long end of the hook into the small hole on the guide
plate (
2).
b. Rotate the spindle counterclockwise several turns to wind the media liner over the
hook and remove any slack.
13. Align the media with the inner media guide (1). Slide in the outer media guide (2) until it
just touches the edge of the media.
