Zebra 105SL Plus User Manual

Printer Setup and Operation
Load the Media
72
P1056468-002 7/3/13
Final Steps for Rewind Mode 7.

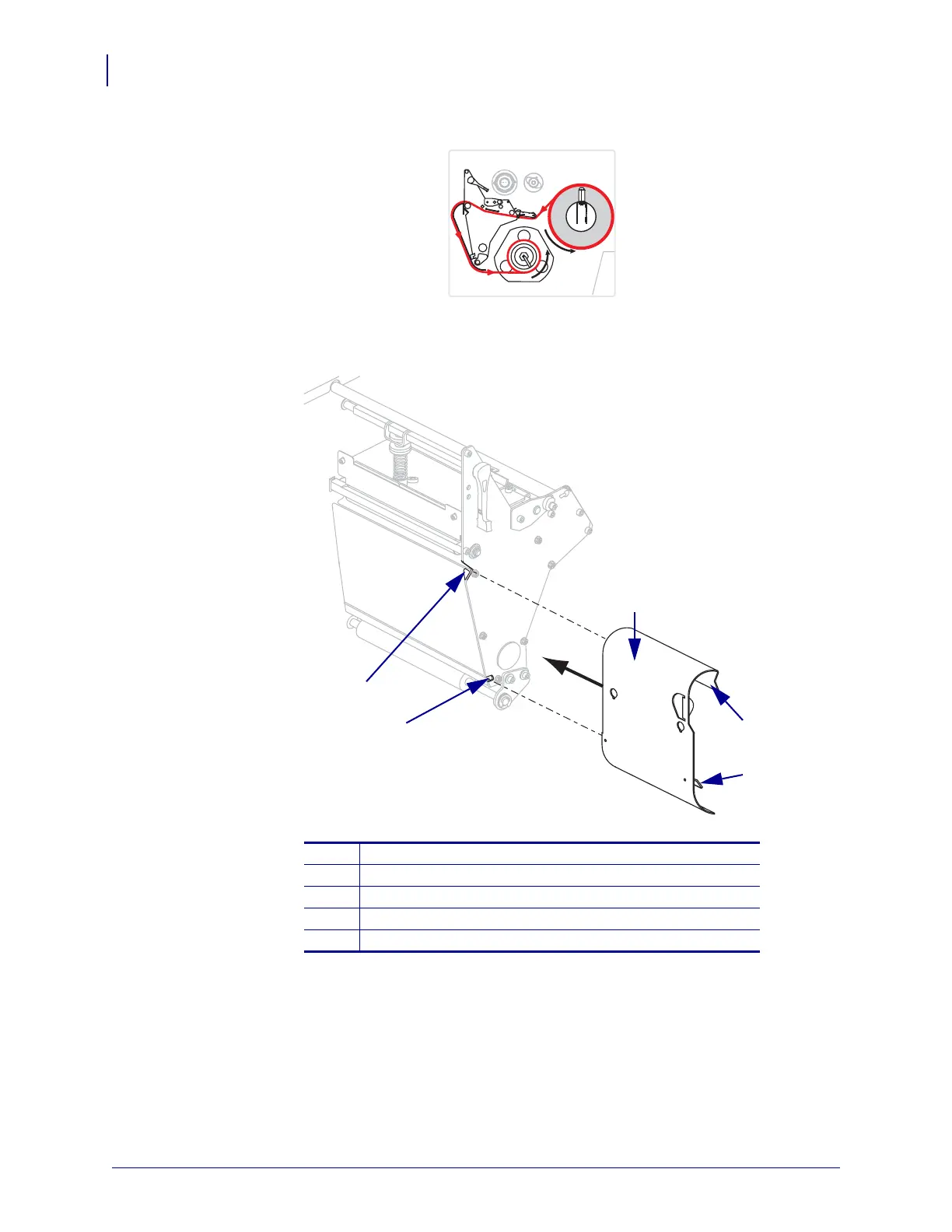

8. Remove the rewind plate from its storage location inside the printer.
9. Position the rewind plate so that the lip on the attached hook plate points down.
10. Insert the hook plate lip 1/2 in. (13 mm) into the lower slot in the side plate.
11. Align the upper end of the rewind plate with the matching upper slot in the side plate.
12. Slide in the rewind plate until it stops against the printer’s main frame.
1
Upper slot
2
Lower slot
3
Rewind plate
4
Lip
5
Adjustable hook plate
3
4
2
5
1

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
