USER PREFERENCES & MISCELLANEOUS SCANNER OPTIONS 7 - 7

Beeper Tone

Parameter # 145

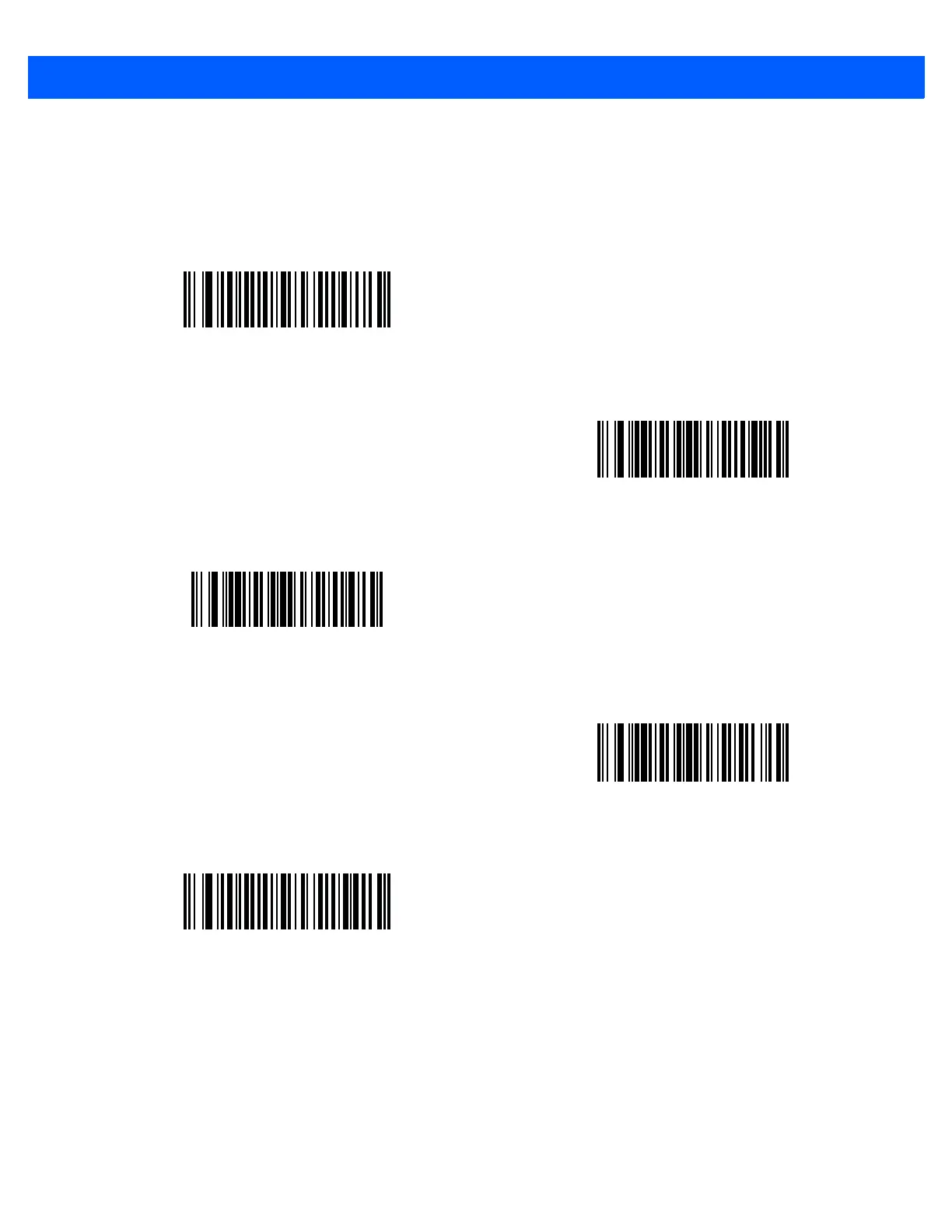

To select a decode beep frequency (tone), scan one of the following bar codes.

Off

(03h)

Low Tone

(02h)

*Medium Tone

(01h)

High Tone

(00h)

Medium to High Tone (2-tone)

(04h)
