Zebra LI2208 - Inverse 1 D

To Next Page

To Previous Page

SYMBOLOGIES 8 - 63

Inverse 1D

Parameter # 586

This parameter sets the 1D inverse decoder setting. Options are:

•

Regular Only - the linear imager decodes regular 1D bar codes only.

•

Inverse Only - the linear imager decodes inverse 1D bar codes only.

•

Inverse Autodetect - the linear imager decodes both regular and inverse 1D bar codes.

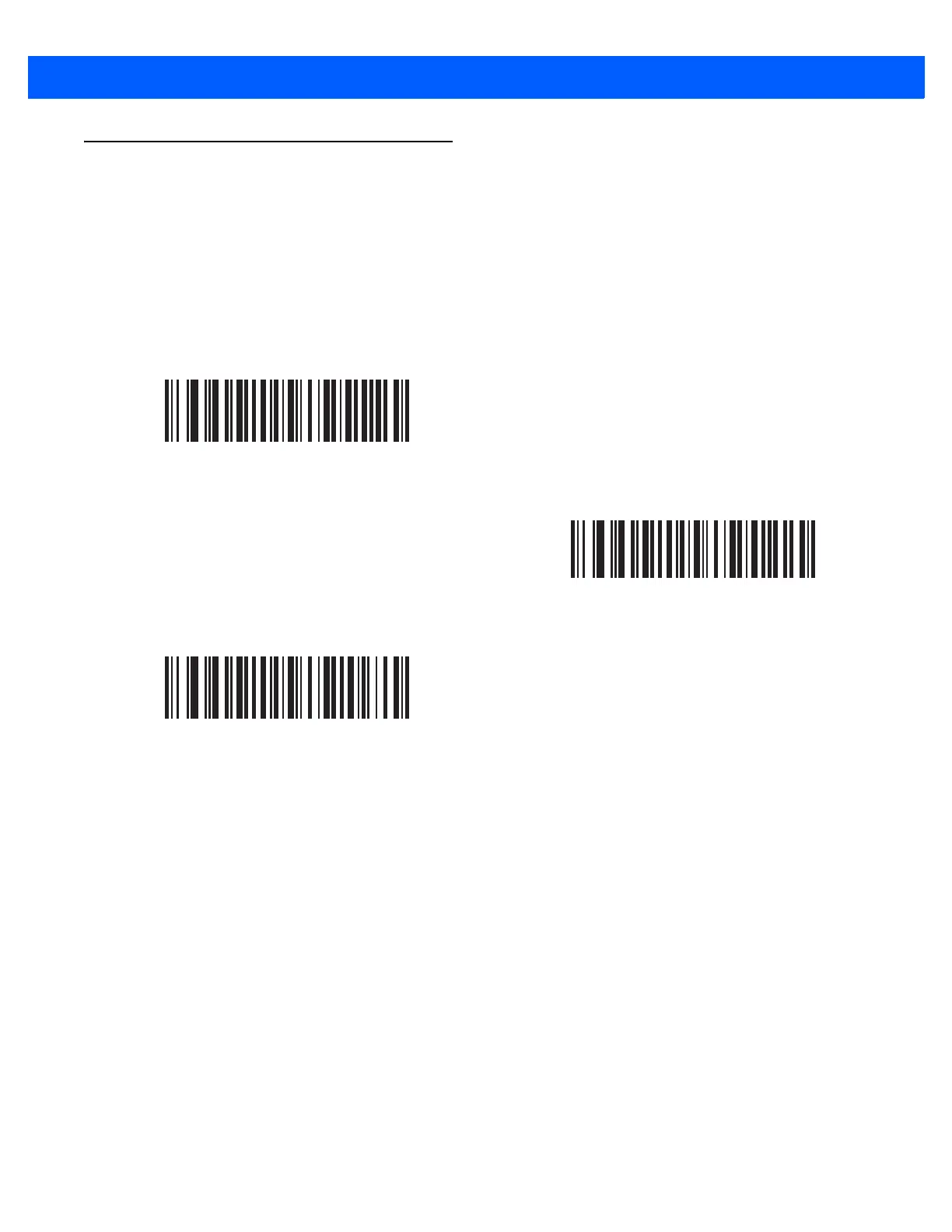

*Regular

(00h)

Inverse Only

(01h)

Inverse Autodetect

(02h)
