Hardware Handshaking (continued)

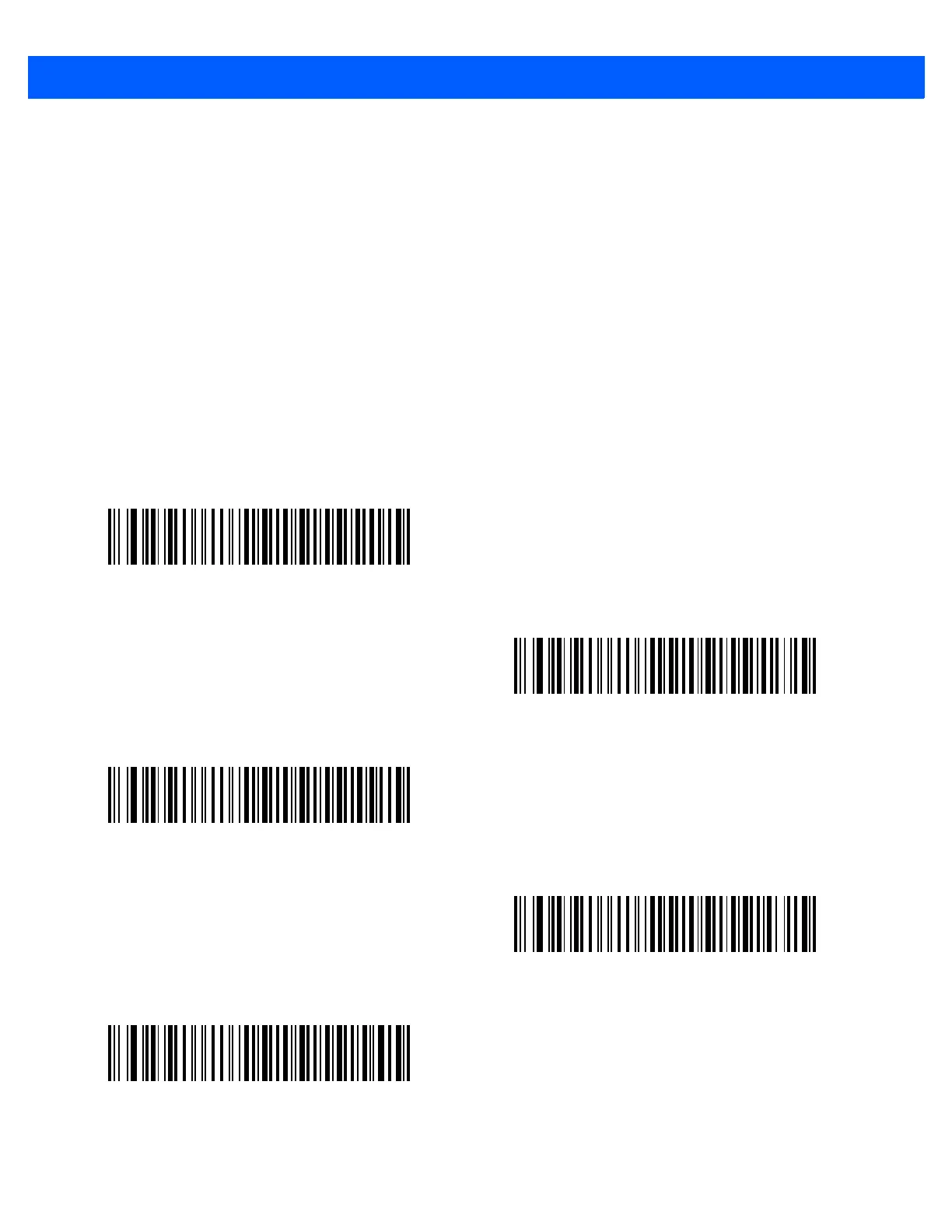

• None: Scan the bar code below if no Hardware Handshaking is desired.
• Standard RTS/CTS: Scan the bar code below to select Standard RTS/CTS Hardware Handshaking.
• RTS/CTS Option 1: When RTS/CTS Option 1 is selected, the linear imager asserts RTS before
transmitting and ignores the state of CTS. The linear imager de-asserts RTS when the transmission is
complete.
• RTS/CTS Option 2: When Option 2 is selected, RTS is always high or low (user-programmed logic
level). However, the linear imager waits for CTS to be asserted before transmitting data. If CTS is not
asserted within Host Serial Response Time-out, the linear imager issues an error indication and discards
the data.
• RTS/CTS Option 3: When Option 3 is selected, the linear imager asserts RTS prior to any data
transmission, regardless of the state of CTS. The linear imager waits up to Host Serial Response
Time-out for CTS to be asserted. If CTS is not asserted during this time, the linear imager issues an error
indication and discards the data. The linear imager de-asserts RTS when transmission is complete.
*None
Standard RTS/CTS
RTS/CTS Option 1
RTS/CTS Option 2
RTS/CTS Option 3

Zebra LI2208 Specifications

General

Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Linear
Scanner type	1D
Read rate (max)	547 reads/s
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	63.5
Linear (1D) barcodes supported	Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, Interleaved 2 of 5, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Input voltage	5 V
Power consumption	165 mA
Power source type	DC
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1
Product color	Black
Housing material	-
International Protection (IP) code	IP42
Sustainability certificates	RoHS

Weight and Dimensions

Depth	99 mm
Width	67 mm
Height	160 mm
Weight	140 g
