3. Swing the four slot cradle down onto the mounting bracket and align the mounting screws so that they fit into
the screw slots.

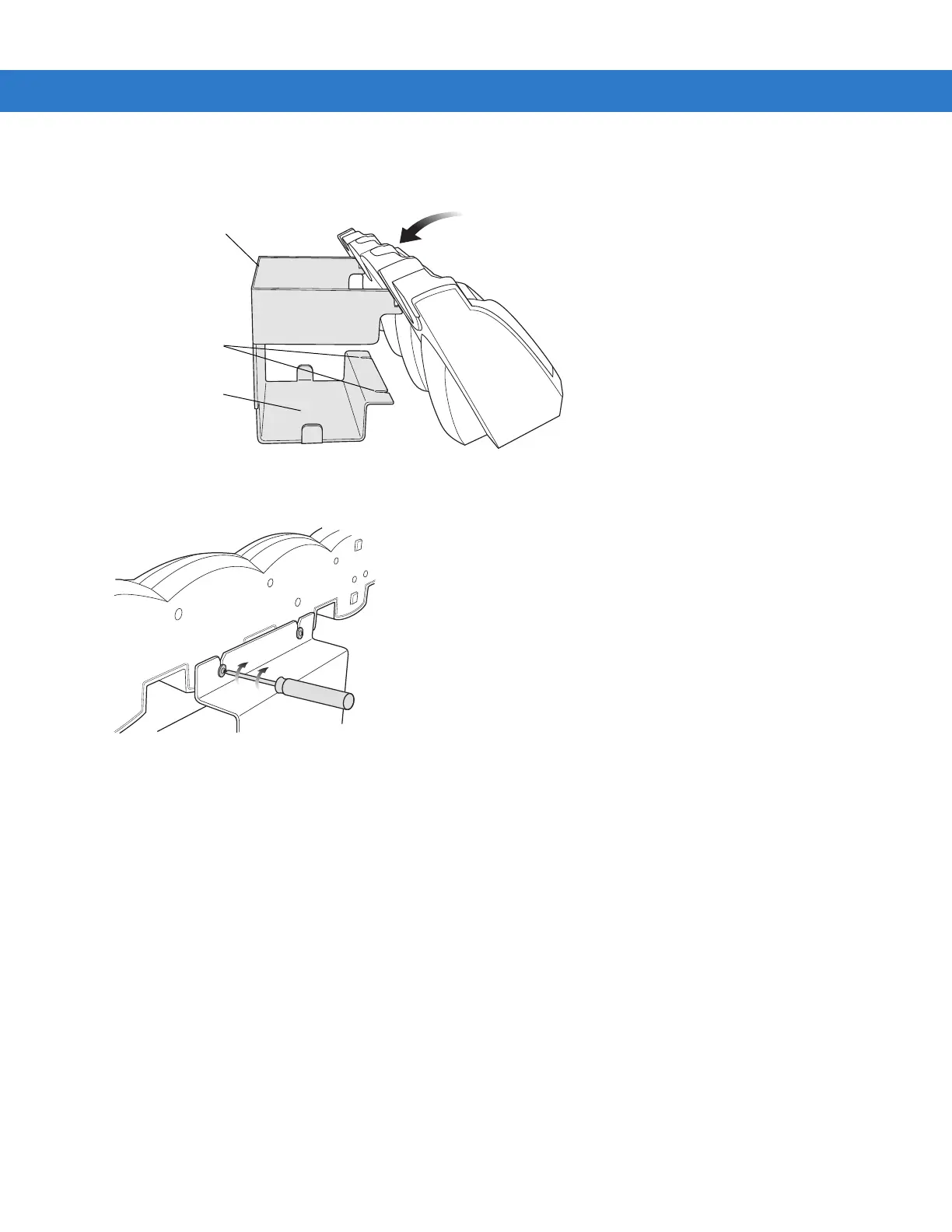

Figure 2-16 Wall Mount Bracket
4. Tighten the mounting screws to secure the four slot cradle to the bracket.
Figure 2-17 Mounting Screws
5. Connect power (see Figure 2-13 on page 2-14). The power supply should be located in the power supply well.
Wall Mount
Bracket
Screw Slots
Power Supply
Well
