2 - 30 MC55 Integrator Guide
5. Make sure that the suction bond is strong enough before proceeding to the next step.
6. Slide the MC55 into the cradle.

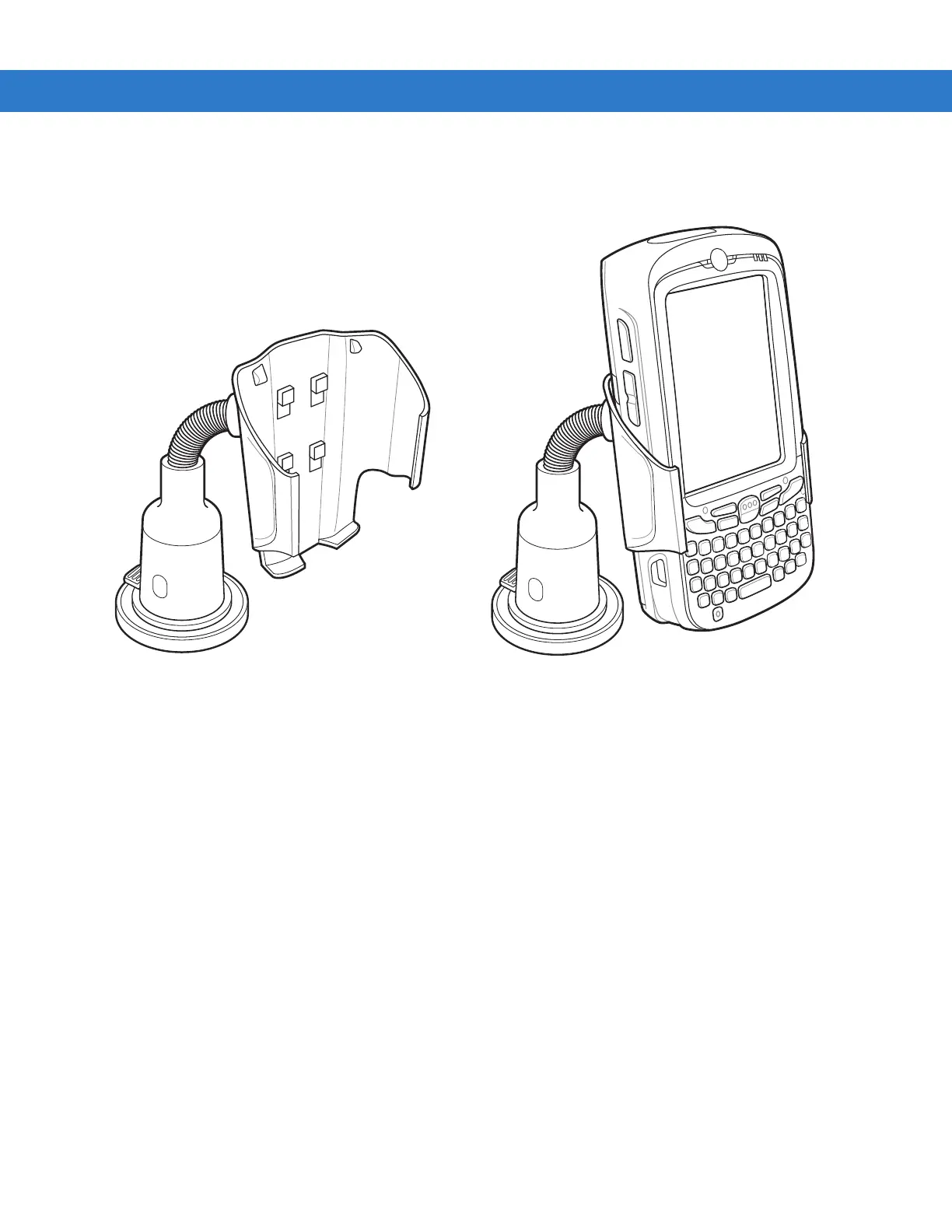

Figure 2-31
Vehicle Holder Mounted on Flat Surface
7. Connect the auto charger cable to the MC55 and slide the two locking tabs up to secure the cable cup to the
MC55.
8. Connect the other end to the cigarette lighter socket.
The LED indicator on the right side of the touch screen lights up orange during charging.
