INSTALLATION INSTRUCTIONS AND FIRST-TIME SET-UP
Axio Observer HXP 120 V illuminator ZEISS
12/2016 431004-7244-001 69
4.23.3 Adjusting the HBO 100 illuminator
Two versions (manual and automatic adjustment)
of the HBO 100 illuminator (Fig. 55/1) are
available.
The self-adjusting HBO 100 (423011-9901-000)
adjusts the illumination automatically after the
power supply unit is switched on.
The instructions below describe adjustment of the
manually adjusted version of the HBO 100
illuminator (423010-0000-000).
Adjustment
Never look directly into the lamp when lit in order to avoid irreparable damage to the eye.
Wear protective goggles such as sunglasses to protect the eyes durin
bright focal spot.
• Unscrew an objective and check that the light source image has free access to the specimen plane (on
the specimen stage) using a piece of paper.
• Focus the collector using the knurled knob (Fig. 55/4) to ensure that the brighter arc is sharply
focused.
• Use the 3 mm ball-headed screwdriver and the adjusting screws for height (Fig. 55/2) and lateral
adjustment (Fig. 55/3) to position the light arc image centrally next to the arc.
• Screw the objective back into the nosepiece.
4.24 HXP 120 V illuminator
When using the HXP 120 V illuminator /
compact light source observe the supplied operating
manual No. 41 04 01-001-26B.
4.25 Colibri.2 and Colibri 7 illumination system
When using the Colibri.2 or Colibri
7 illuminator observe the attached operating manual
423052-7244-001 or 423052-7344-001.

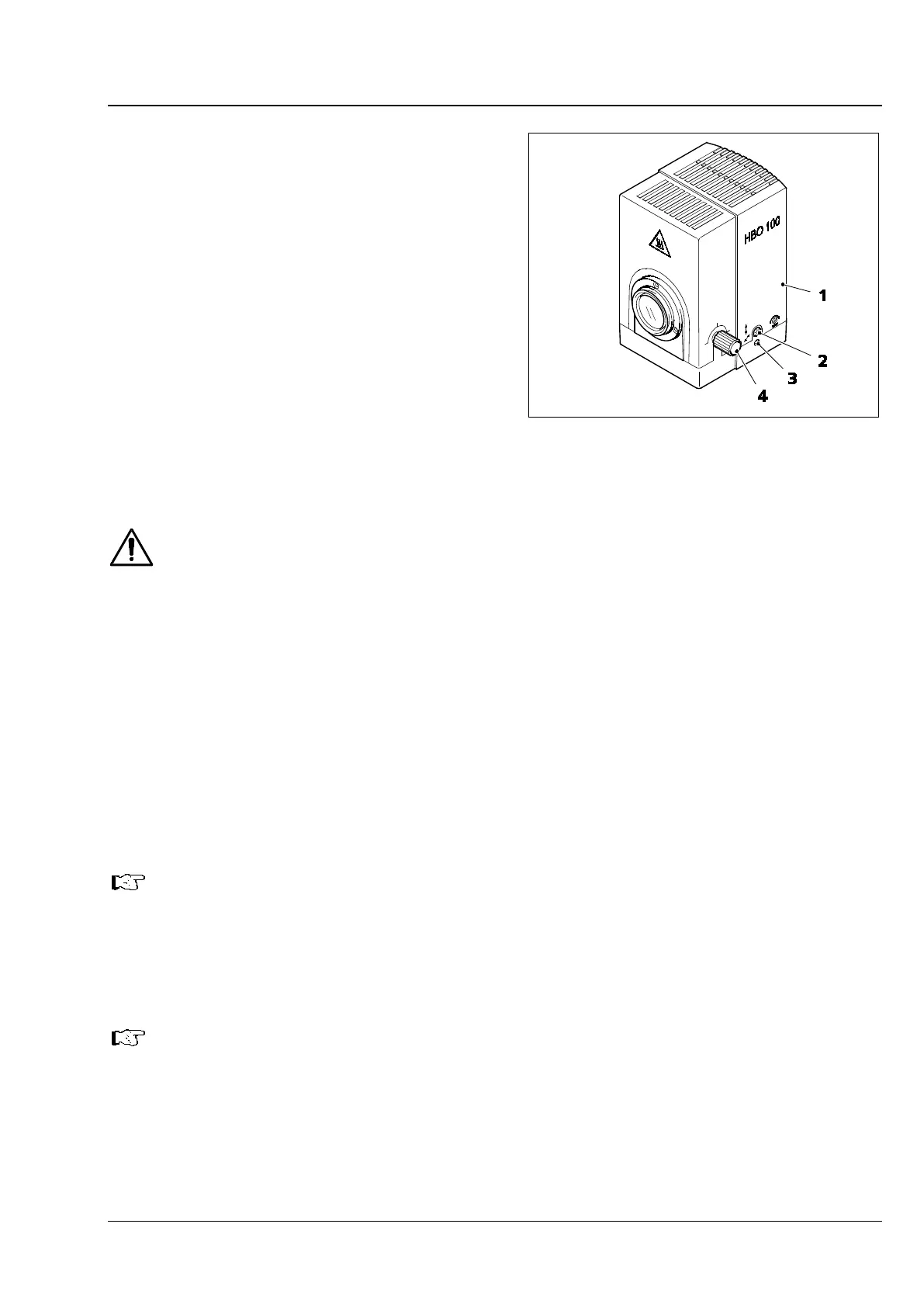

Fig. 55 Adjusting the HBO 100
