216 Technical data
G-30-1529-en OPMI® VISU 160 on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 09. 10. 2006
Electrical data of S88 floor stand
Power requirements Only connect the suspension system to wall out-
lets which are provided with a properly connected
protective ground conductor.
Rated voltage 115 VAC (100...125 VAC± 10%)
230 VAC (220...240 VAC± 10%)
Current consump-
tion
115 VAC max.10 A
230 VAC max. 8 A
Rated frequency 50...60 Hz
Fuses Automatic circuit breaker
Electrical
outlets
Power outlet 115/230 VAC, max. 5 A
Power outlet 115/230 VAC, max. 2 A
(Via power switch)
X-Y coupling
Surgical microscope
Remote control socket for an external signal of a
maximum of 24 V / 0.5 A.
Electrical
standard
Complying with IEC 60601-1/ EN 60601-1; UL
60601-1;
CAN/CSA-C22.2 No. 601.1-M90
Protection class I, degree of protection IPXO
Type B equipment
Product classification I
as per directive 93/42/EEC, Annex IX
Approval
EMC requirements The system meets the EMC requirements of
IEC 60601-1-2.
The system meets the RFI requirements of Class
A (hospital grade).
The system has been designed for continuous operation.

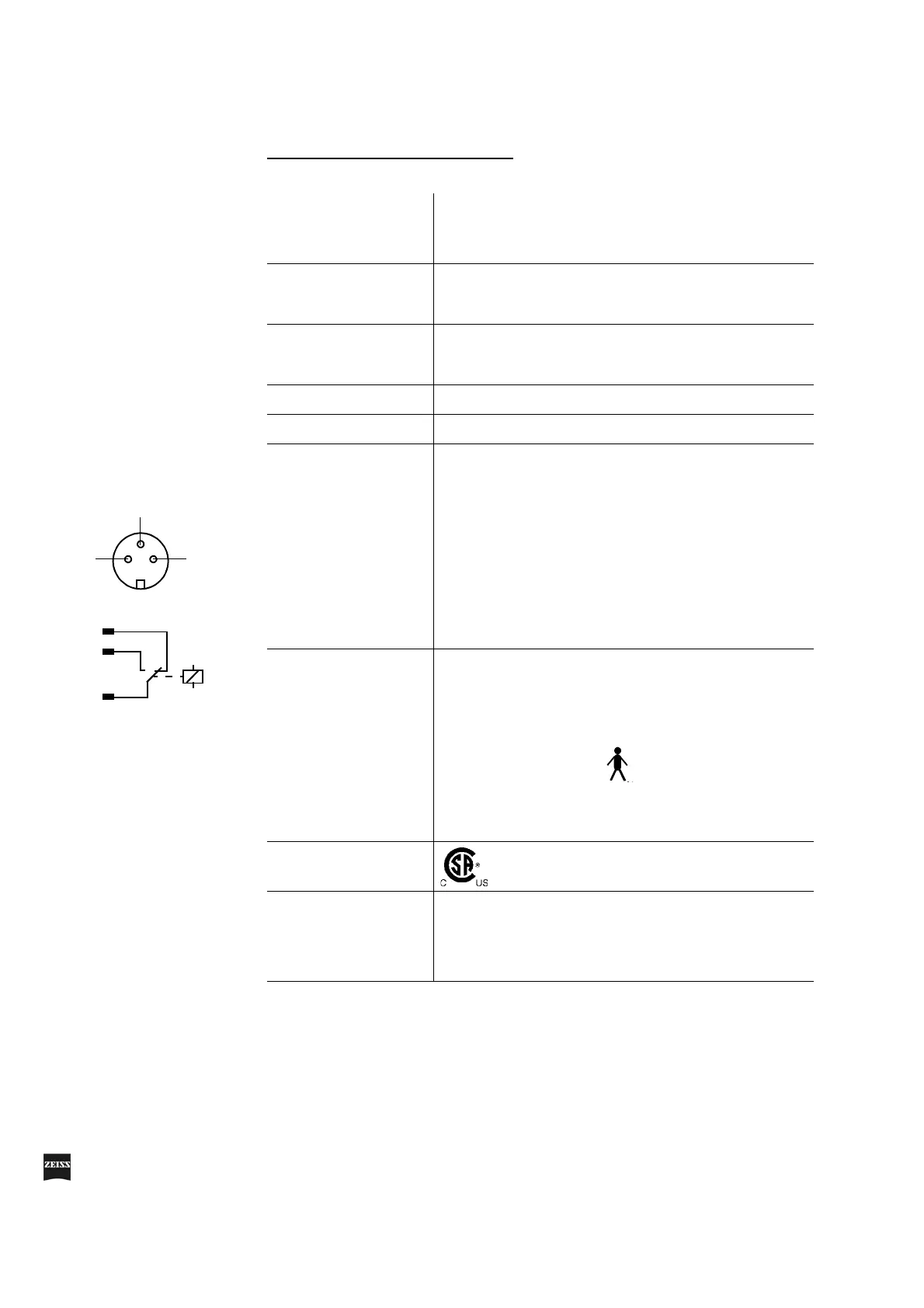

Remote socket
View of connector side
1
2
3
1
2
3
176164
