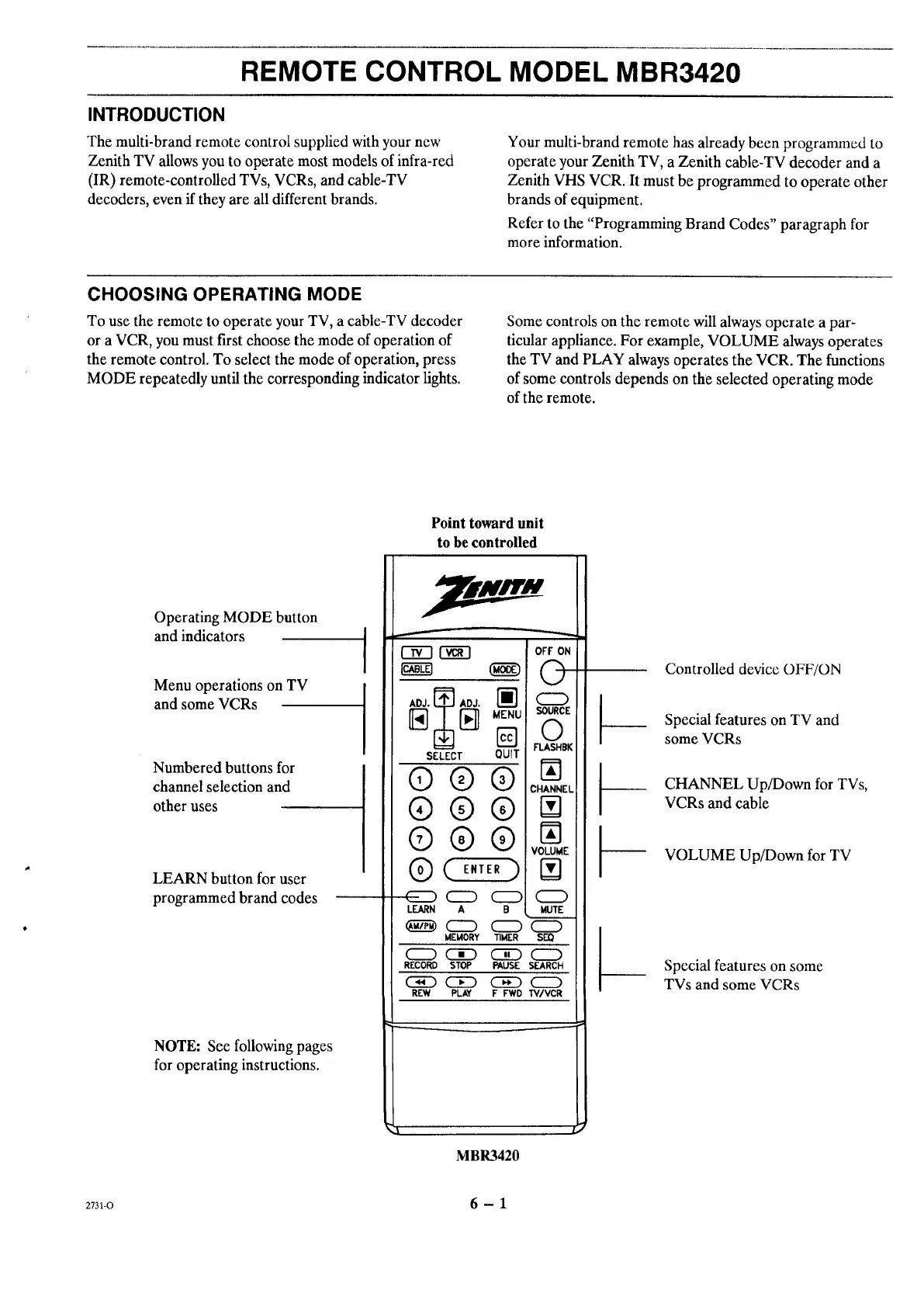

REMOTE CONTROL MODEL MBR3420
INTRODUCTION
The multi-brand remote control supplied with your new
Zenith TV allows you to operate most models of infra-red
(IR) remote-controlled TVs, VCRs, and cable-TV
decoders, even if they are all different brands.
Your multi-brand remote has already been programmed to
operate your Zenith TV, a Zenith cable-TV decoder and a
Zenith VHS VCR. It must be programmed to operate other
brands of equipment.
Refer to the "Programming Brand Codes" paragraph for
more information.
CHOOSING OPERATING MODE
To use the remote to operate your TV, a cable-TV decoder
or a VCR, you must first choose the mode of operation of
the remote control. To select the mode of operation, press
MODE repeatedly until the corresponding indicator lights.
Some controls on the remote will always operate a par-
ticular appliance. For example, VOLUME always operates
the TV and PLAY always operates the VCR. The functions
of some controls depends on the selected operating mode
of the remote.
Operating MODE button
and indicators
Menu operations on TV
and some VCRs
Numbered buttons for
channel selection and
other uses
LEARN button for user
programmed brand codes
NOTE: See following pages
for operating instructions.
Point toward unit
to be controlled
I
r--_-3 r-_-3
SELECT QUIT
®®®
®®®
®®®
(ZD (ZD (ZZ)
LEARN A B
<_ <:::::_ C:::)
MEMORY TIMER
<::::D Ci) C_:D
RECORD STOP PAUSE
REW PLAY F FWD
OFF ON
0
SOURCE
0
FLASHBK
N]
CHANNEL
N
N
VOLUME
N
o
MUTE
CZD
sm
CZD
SEARCH
W/VCR
L
MBR3420
Controlled device OFF/ON
Special features on TV and
some VCRs
CHANNEL Up/Down for TVs,
VCRs and cable
VOLUME Up/Down for TV
Spccial features on some
TVs and some VCRs
2731-0 6 - 1
