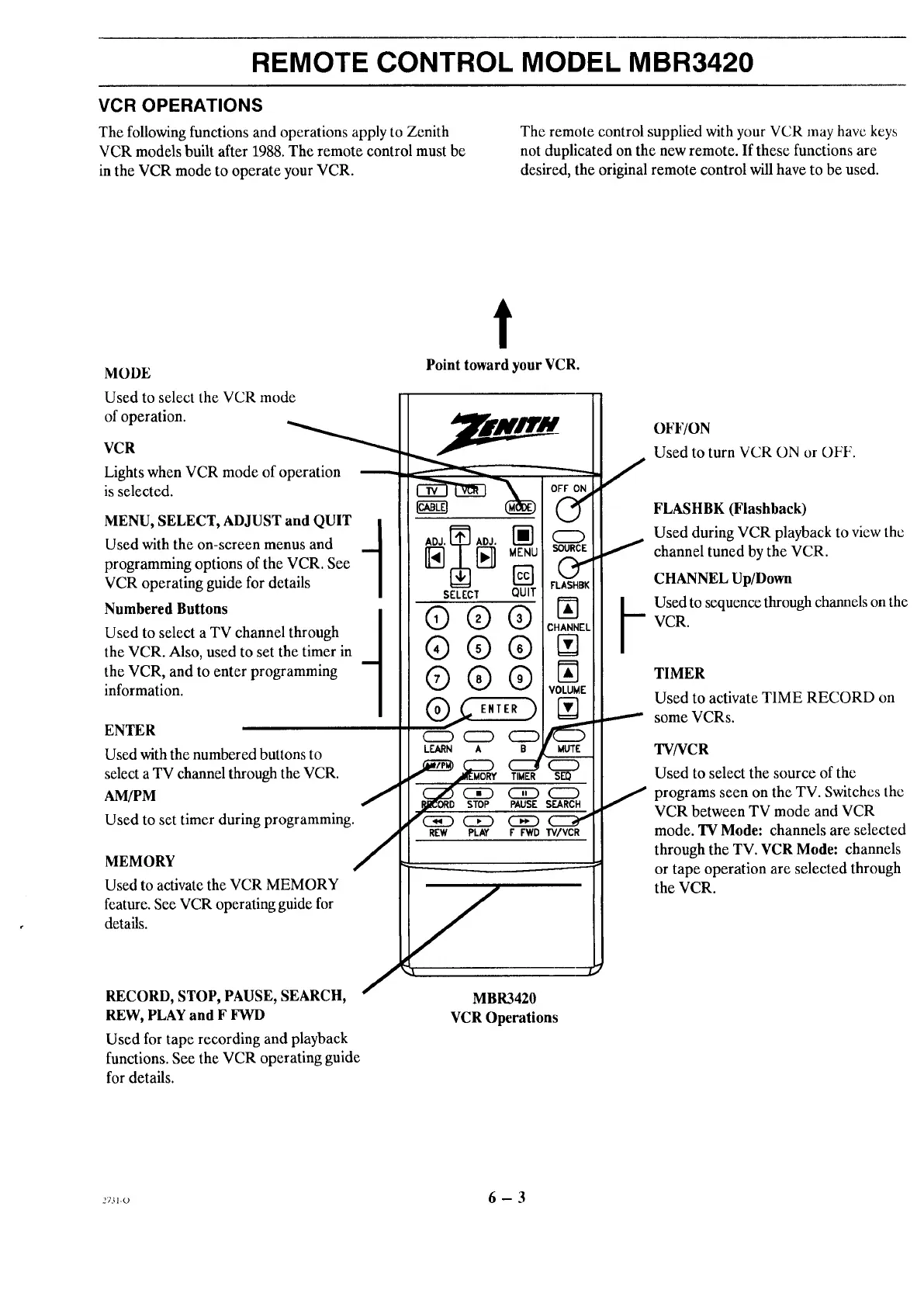

REMOTE CONTROL MODEL MBR3420
VCR OPERATIONS
The following functions and operations apply to Zenith
VCR models built after 1988. The remote control must be
in the VCR mode to operate your VCR.
The remote control supplied with your VCR may have keys
not duplicated on the new remote. If these functions are
desired, the original remote control will have to be used.
MODE
Used to select the VCR mode
of operation.
VCR
Lights when VCR mode of operation
is selected.
MENU, SELECT, ADJUST and QUIT |
1
Used with the on-screen menus and
programming options of the VCR. See
VCR operating guide for details
Numbered Buttons
1
Used to select a TV channel through l
the VCR. Also, used to set the timer in
1
the VCR, and to enter programming
information.
ENTER
Used with the numbered buttons to
select a TV channel through the VCR.
AM/PM
Used to set timer during programming.
MEMORY
Used to activate the VCR MEMORY
feature. See VCR operating guide for
details.
/
RECORD, STOP, PAUSE, SEARCH, "
REW, PLAY and F FWD
Used for tape recording and playback
functions. See the VCR operating guide
for details.
t
Point toward your VCR.
SELECT QUIT
®®®
®®®
®®®
ENTER
CZD (==) 0
LEARN A B
TIMER SEO
STOP PAUSE SEARCH
REW PLAY F FWD W/VCR
MBR3420
VCR Operations
OFF/ON
Used to turn VCR ON or OFF.
FLASHBK (Flashback)
Used during VCR playback to view the
channel tuned by the VCR.
CHANNEL Up/Down
p sed to sequence through channels on the
VCR.
TIMER
Used to activate TIME RECORD on
some VCRs.
TV/VCR
Used to select the source of thc
programs seen on the TV. Switches the
VCR between TV mode and VCR
mode. TV Mode: channels are selected
through the TV. VCR Mode: channels
or tape operation are selected through
the VCR.
_'t._1-o 6 - 3
