Front Panel Controls
Front Panel Controls
This section of the manual describes the various controls and displays on the front panel of the Solution & Solution XL
desk. The front panel controls have been divided into the following sections:
• Preset Controls
• Page Controls, Mode Keys and Multi Function Keys (MFKs)
• Submaster Controls
• Playback X Controls
• Other Keys and Controls
• Main LCD
• Wheel LCD and Control Wheels

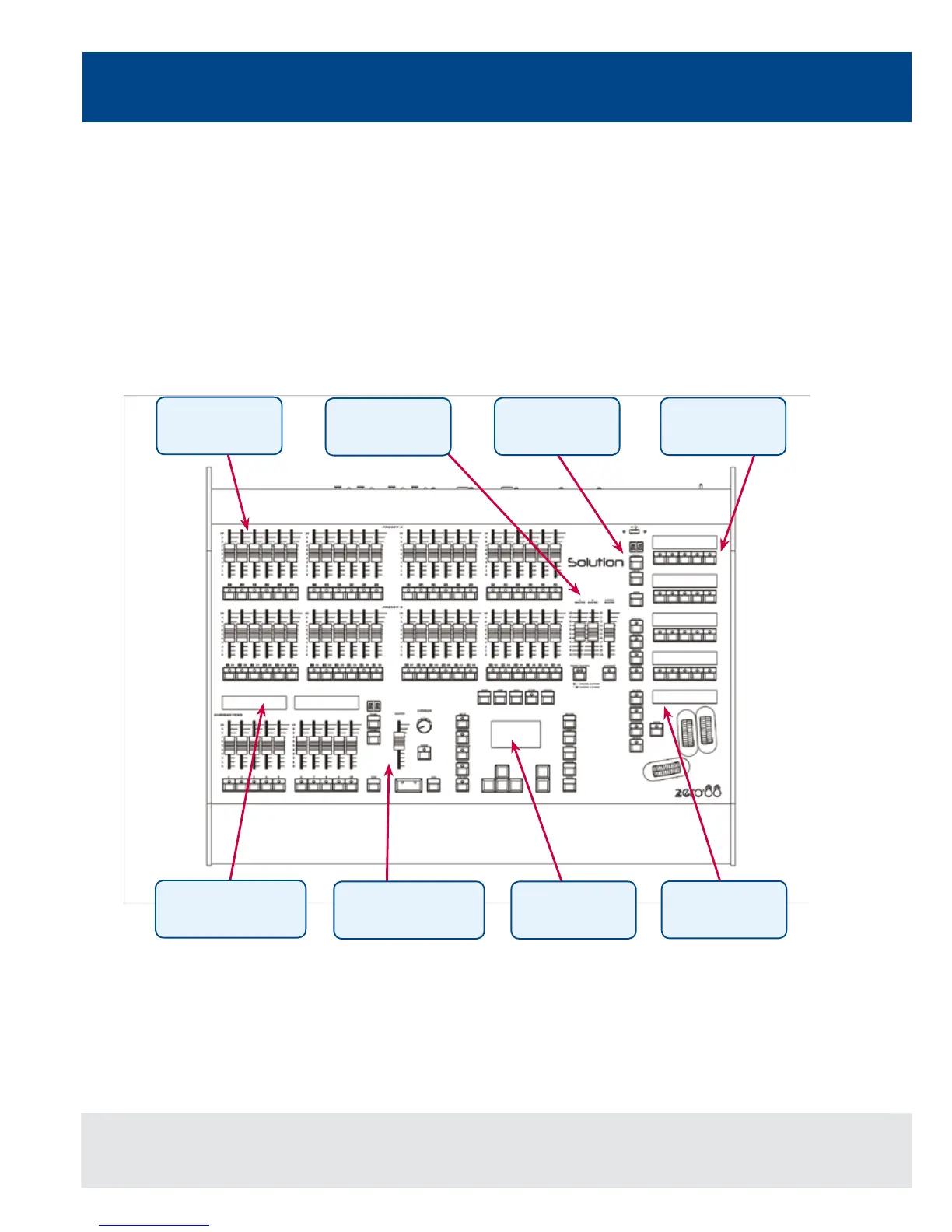

Figure 1 - Solution desk layout
Preset Controls
Master Faders
Wheel LCD &
Control Wheels
Main LCDPlayback X Controls
Submaster Controls
Multi Function
Keys (MFKs)
Page Control &
Display
