Installation and Operating Instructions V03 33
6 Communication
6.1 System monitoring via RS485
This inverter is equipped with RJ45 interfaces for multipoint communication.
One ZeverCom/ZeverManager connects inverters via an RS485 bus. The overall

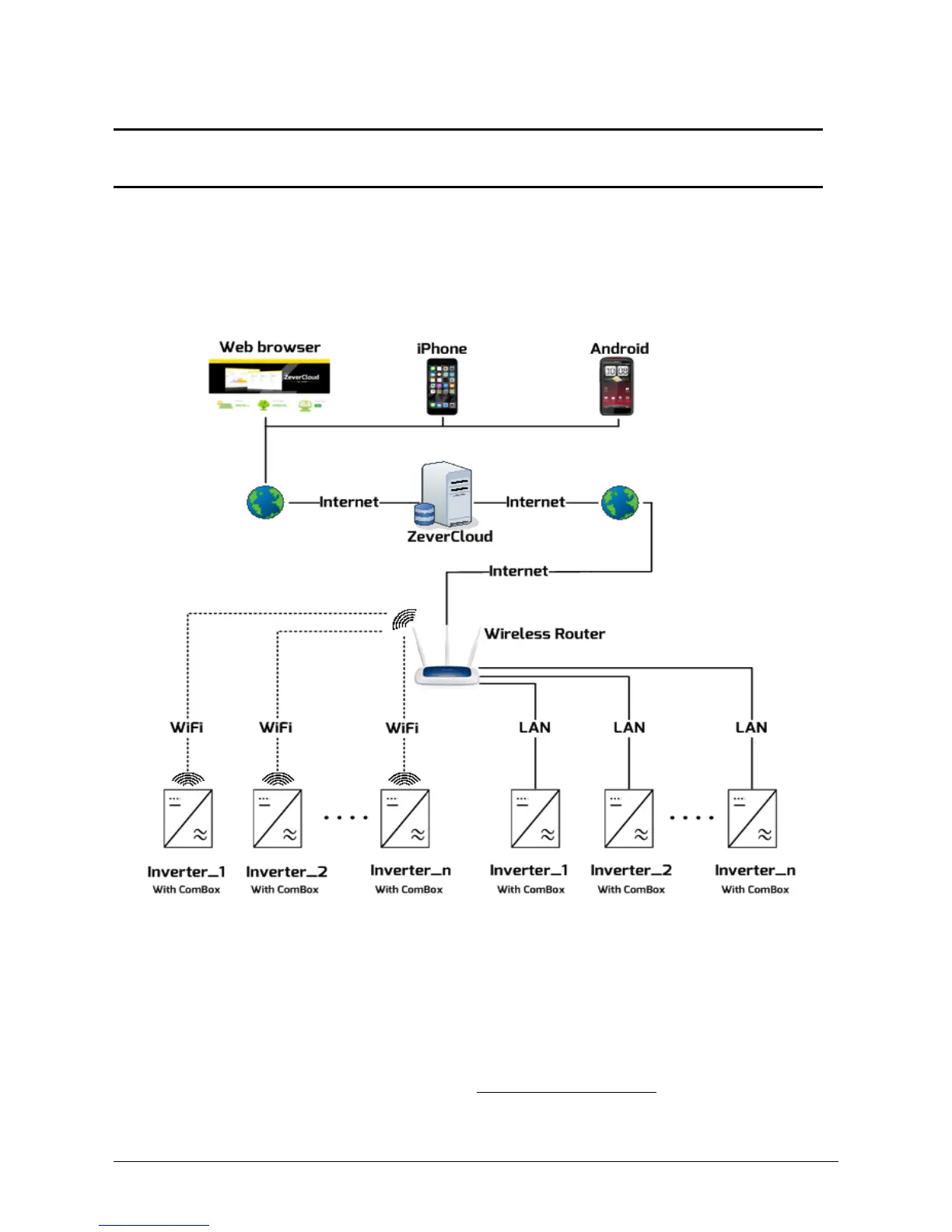

length of the network cable should not exceed 1,000 m. The monitoring system
layout for inverters is as follows.
The ZeverCom/ZeverManager connects to the inverter via the RJ45 interface, and it
connects to the router via Ethernet.
We offer a remote monitoring platform called ‛ZeverCloud“. You can install the
‛ZeverCloud“ application on a smart phone using Android or an iOS operating
systems.
The website address of the ‛ZeverCloud“ is www.zevercloud.com
