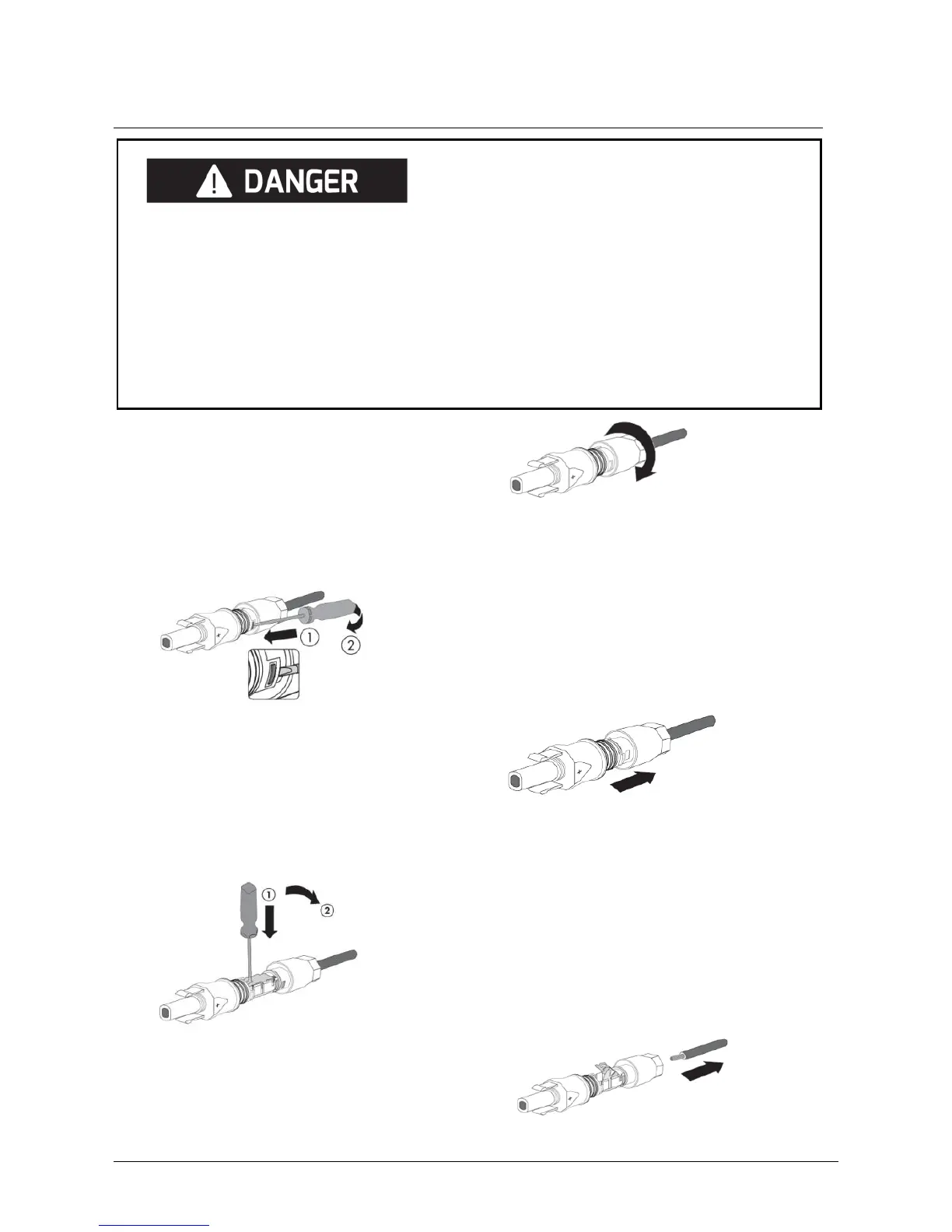

5.5.3 Disassembling the DC connectors
1. Unscrew the swivel nut.
2. To release the DC connector, insert a flat-blade screwdriver (blade width: 3.5 mm)
into the side catch mechanism and lever open.
3. Carefully pull the DC connector apart.
4. Release the clamping bracket. To do so, insert a flat-blade screwdriver (blade
width: 3.5 mm) into the clamping bracket and lever it open.
5. Remove the cable.
Danger to life due to high voltages on DC conductors
When exposed to sunlight, the PV array generates dangerous DC
voltage which is present in the DC conductors. Touching the DC
conductors can lead to lethal electric shocks.
• Cover the PV modules.
• Do not touch the DC conductors.
