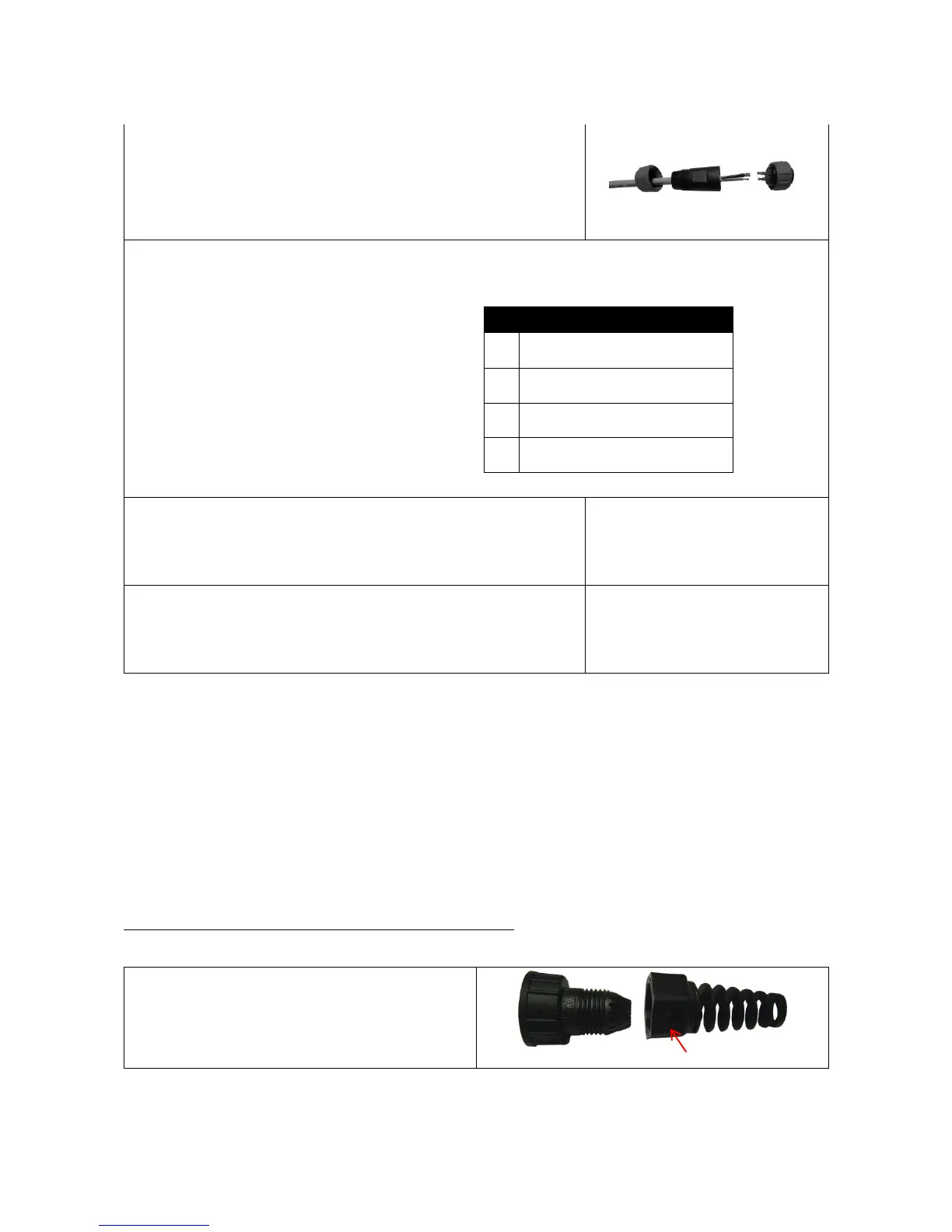

Pass the cables through the cable glands and through the
main body of the connector.
Connect the cables to their pin (rear view)
5
Tighten the main body of the connector.
Tighten the cable glands at the bottom of the connector.
To assemble the network cable, follow these steps:
Unscrew the back side of the cable boot.
Pin
Meaning
1
Neutral
2
Line
3
N/C
E
Protective Earth
