2. Exit switch
An exit switch is a switch installed indoor to open a door. When it is switched on, the door will be opened.
An exit button is fixed at the height of about 1.4m above the ground. Ensure it is located in the right
position without slant, and its connection is correct and secure. (Cut off the exposed end of any unused
wire and wrap it with insulating tape.) Make sure to avoid electromagnetic interference (such as light
switches and computers). It is recommended to use two-core wires with a gauge over 0.3mm
2
as the
connection wire between an exit switch and the Control panel.
3. Auxiliary input
The control panel provides one auxiliary input interface which may connect to infrared body detectors,
smoke detectors, gas detectors, window magnetic alarms, wireless exit switches, etc. Auxiliary inputs are
set through the relevant access control software. Please see the respective software manual for further
details.

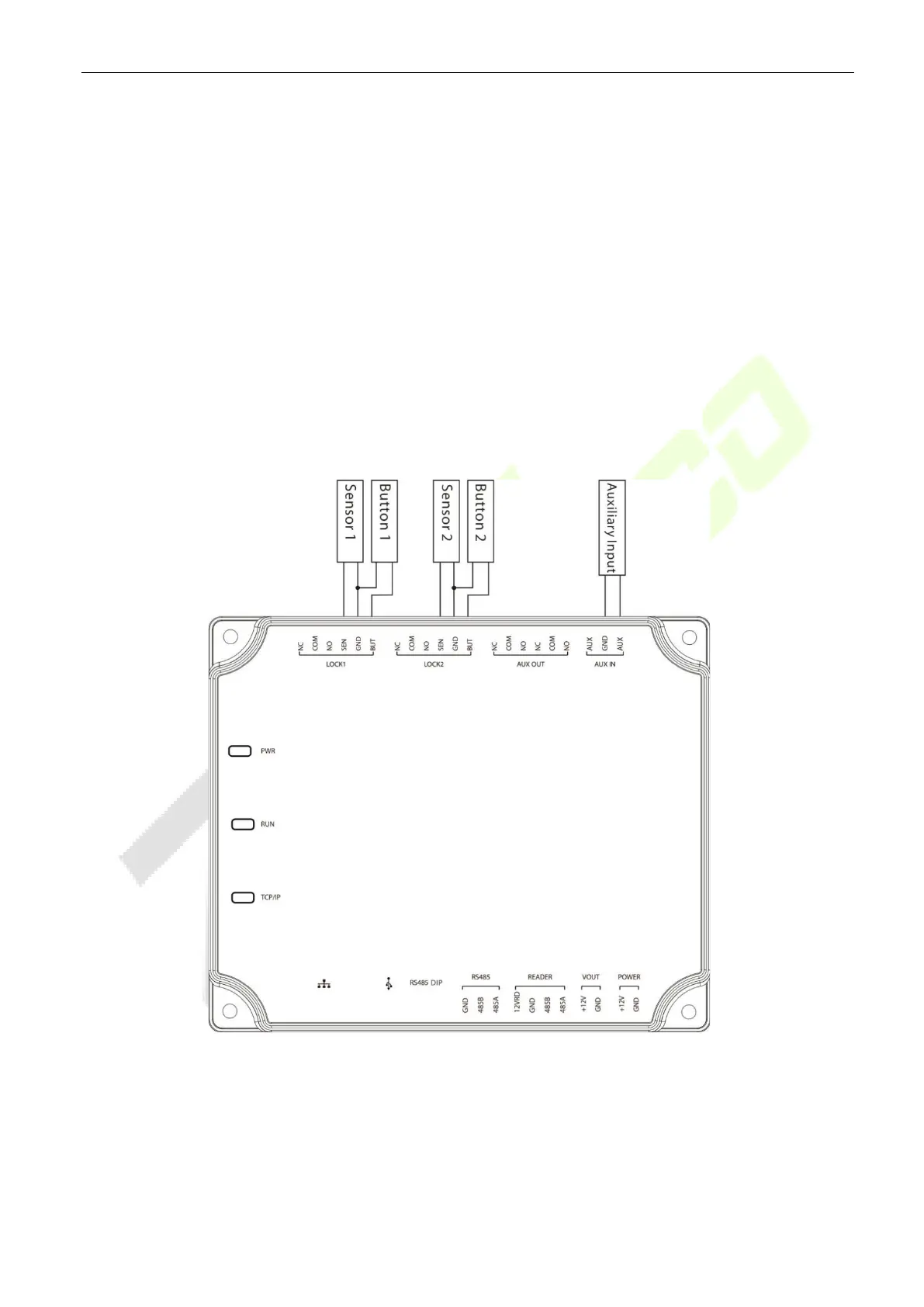

Connections between Control Panel and Door Sensors, Exit Switches and Auxiliary Input Devices
4. RS485 extension communication
The Control panel supports extensive modules which like DM10 and AUX485, through RS485. A
C2-260/inBio2-260 can connect eight DM10 at most or can connect two AUX485 at most.
