C2-260/inBio2-260 Access Control Panel
User Manual
Page | 19 Copyright©2020 ZKTECO CO., LTD. All rights reserved.

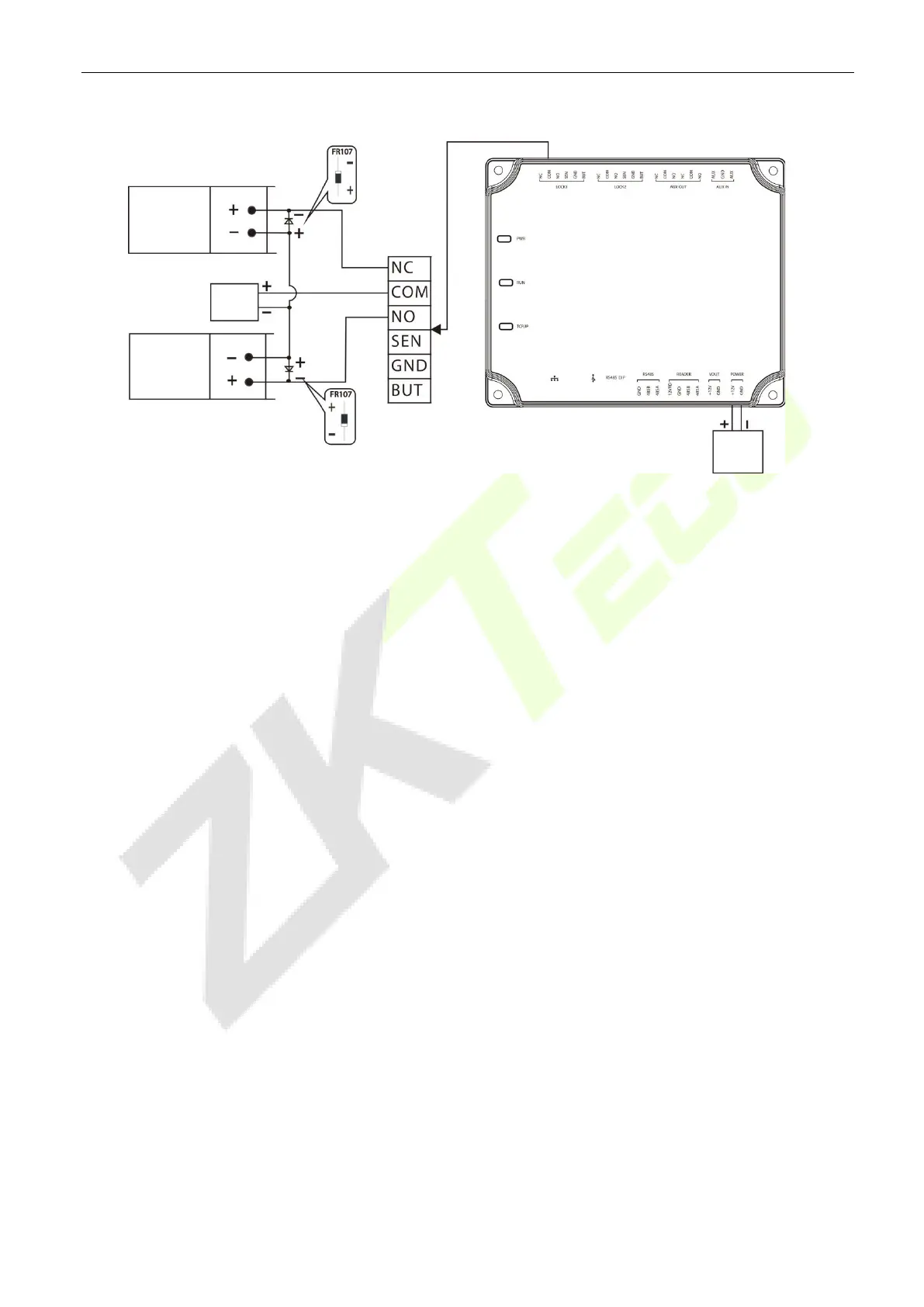

Wiring diagram of lock connection
NC Lock
NO Lock
Lock
Lock
Diode
Diode
Power
Input
Enlarged
diagram
of lock ports
Power
Input
