ZKTeco C3 Pro User Manual

21
C3 Pro Series Access Control Panels and ZKBioSecurity 3.0 Quick Start Guide
DIP Switch Setting
+
+
+
BUTTON BUTTONREADER 1 READER 2BUTTON BUTTONREADER 1 READER 2
TX RX
TX
ACT LINK
RX
POWER
RUN CARD
AUX 1
IN GND IN GND IN GND IN GND +12V GND 485- 485+
AUX 2 AUX 3 AUX 4 EXT EXT
IN GND BEEP GLED WD1 WD0 GND +12V
BUTTON READER
IN GND BEEP GLED WD1 WD0 GND +12V
BUTTON READER
IN GND BEEP GLED WD1 WD0 GND +12V
BUTTON READER
NO COM NC
485
+
485-
-
GND
PC
AUXOUT1
NO COM NC
AUXOUT2
NO COM NC
AUXOUT3
NO COM NC V+ V- 12V GND
AUXOUT4
SEN GND NO COM NC
LOCK1
SEN GND NO COM NC
LOCK2
SEN GND NO COM NC
LOCK3
SEN GND NO COM NC
LOCK4 LOCK POWER
IN GND BEEP GLED WD1 WD0 GND +12V
BUTTON READER
12345678
ON
#63 C3-400 Pro
=
12345678
ON
12345678
ON
RS485 Address

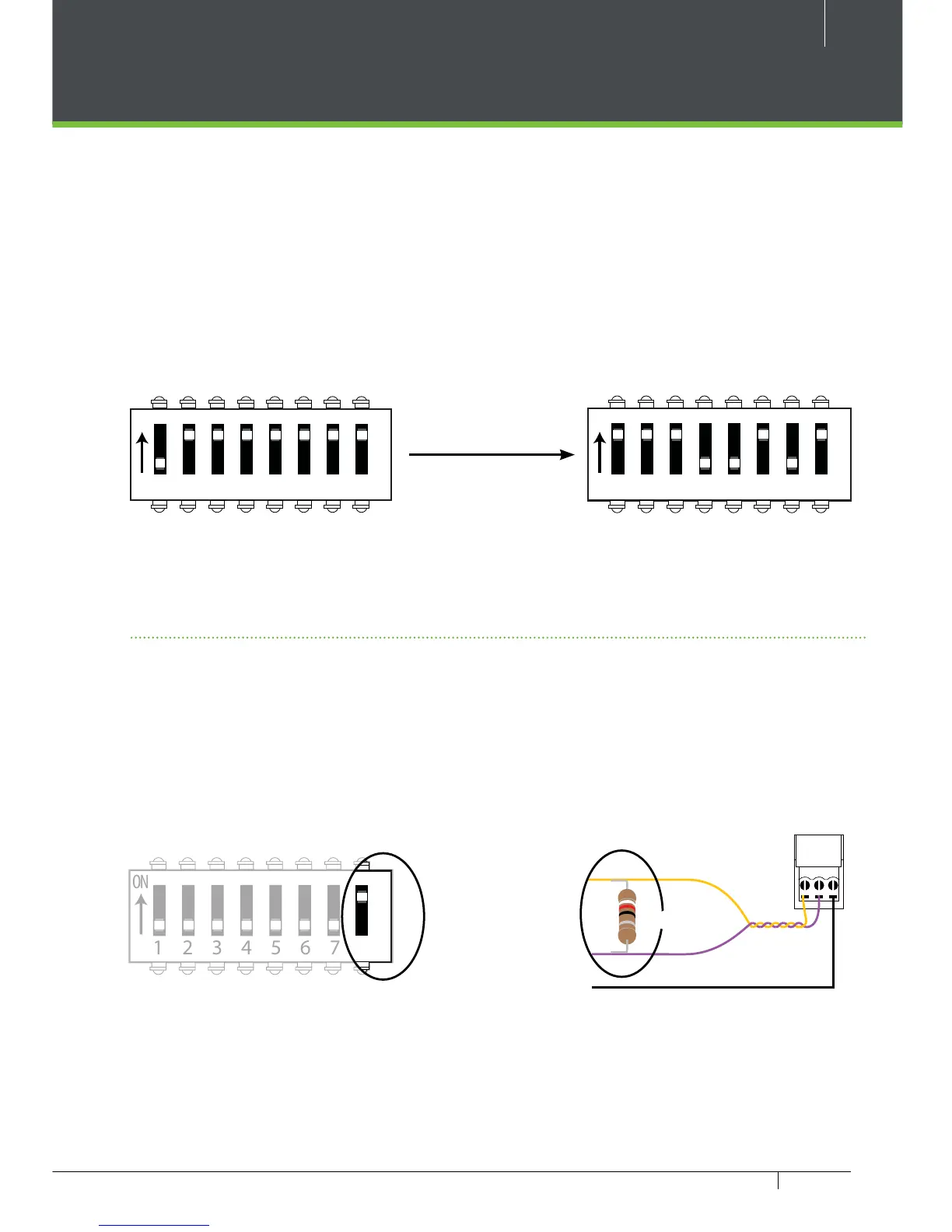

1. Number 1-6 are reserved to set the device number for RS485 communication. The
code is binary, and the numbering starts from left to right. When the switch is set
to ON position, it indicates 1 (on); when the switch is set downwards, it indicates 0
(o ). For example, to set a device number 39=1+2+4+32, which corresponds to the
binary code 111001, put number 1, 2, 3, and 6 to ON position, as illustrated below.
2. For more details, please check the table at the end of this document.
12345678
ON
Terminal Resistance
1. Number 8 is for setting the RS485 termination resistance. Putting the switch to ON
position is equivalent to parallel connection of a 120 ohm termination resistance
between 485+ and 485- lines.
12345678
ON
120 ohm
Figure 31
Figure 32

ZKTeco C3 Pro Specifications

General

Brand	ZKTeco
Model	C3 Pro
Category	IP Access Controllers
Language	English
