ZKTeco Ultima Series Installation Guide

27
ULTIMA INSTALLATION GUIDE | 2019 - v1
CAT 5e CAT 5e
CAT 5e CAT 5e
RFID
BAR
WG_IN
FP
USB Reserve
USB Reserve
POWER PORT
Ethernet Connector

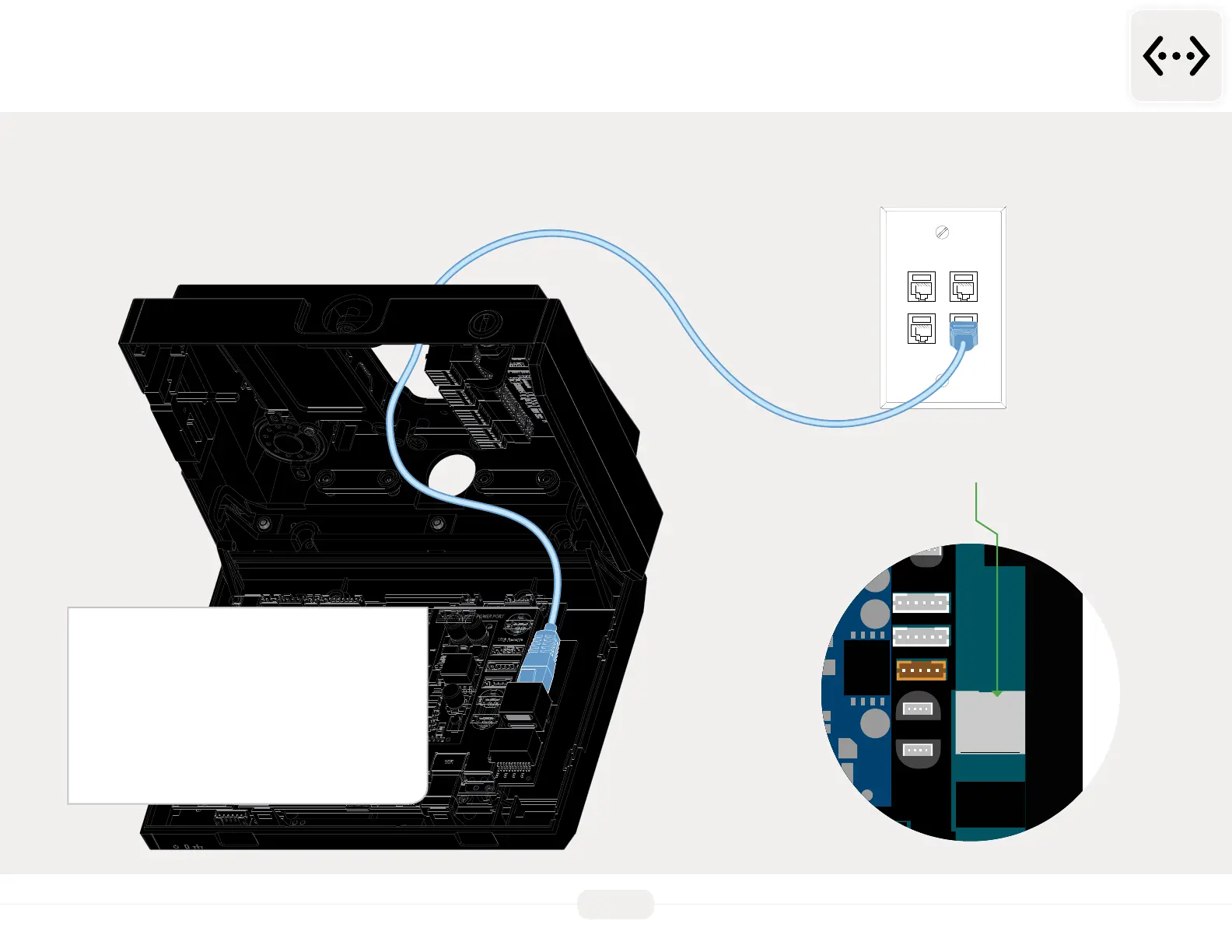

Connecting ethernet cable
1. Route the Ethernet cable RJ45 through the back
top or bottom hole*
2. *if the keypad is not going to be installed.
3. Connect to Ethernet port on the motherboard
(gureX) and the other end to switch or hub.

ZKTeco Ultima Series Specifications

General

Brand	ZKTeco
Model	Ultima Series
Category	IP Access Controllers
Language	English
