ZKTeco Ultima Series Installation Guide

3
ULTIMA INSTALLATION GUIDE | 2019 - v1

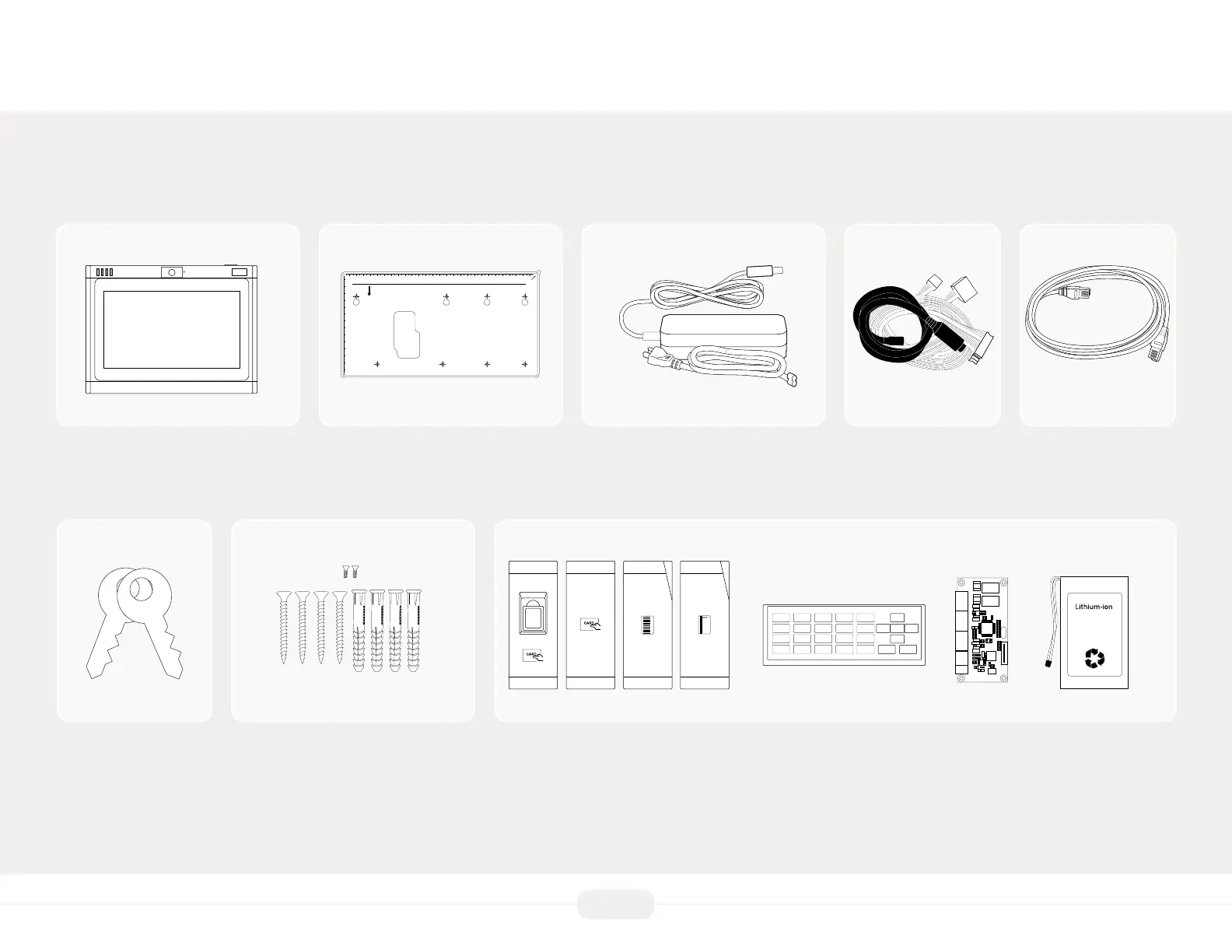

Packing list
The contents of the package may vary depending on the modules that you choose.
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
Mounting Hole Mounting Hole
Mounting Hole
289X155mm
WiringHole
Mounting Hole
Mounting Hole
(Optional modules)
Mounting Hole
(Optional modules)
Mounting Hole
(Optional modules)
Mounting Hole
(Optional modules)
Baseline
Recommended height from the ground is 1.2 m and can be adjusted according to the personnel average height.
Ultima Mounting template
(Only for reference)
Instruction for using this template:
Before fastening the device, past this template onto the required
installation place, and then drill holes and lay cables according to
the marking on the sticker.
Base
Power Cable
Network Cable
Power Supply
Keys (2)
Mounting template
Optional Modules
Screws & Anchors
