ZKTeco Ultima Series Installation Guide

28
ULTIMA INSTALLATION GUIDE | 2019 - v1
RFID
BAR
WG_IN
FP
USB Reserve
USB Reserve
POWER PORT
Battery Connector
Battery Housing
Cable Clamp

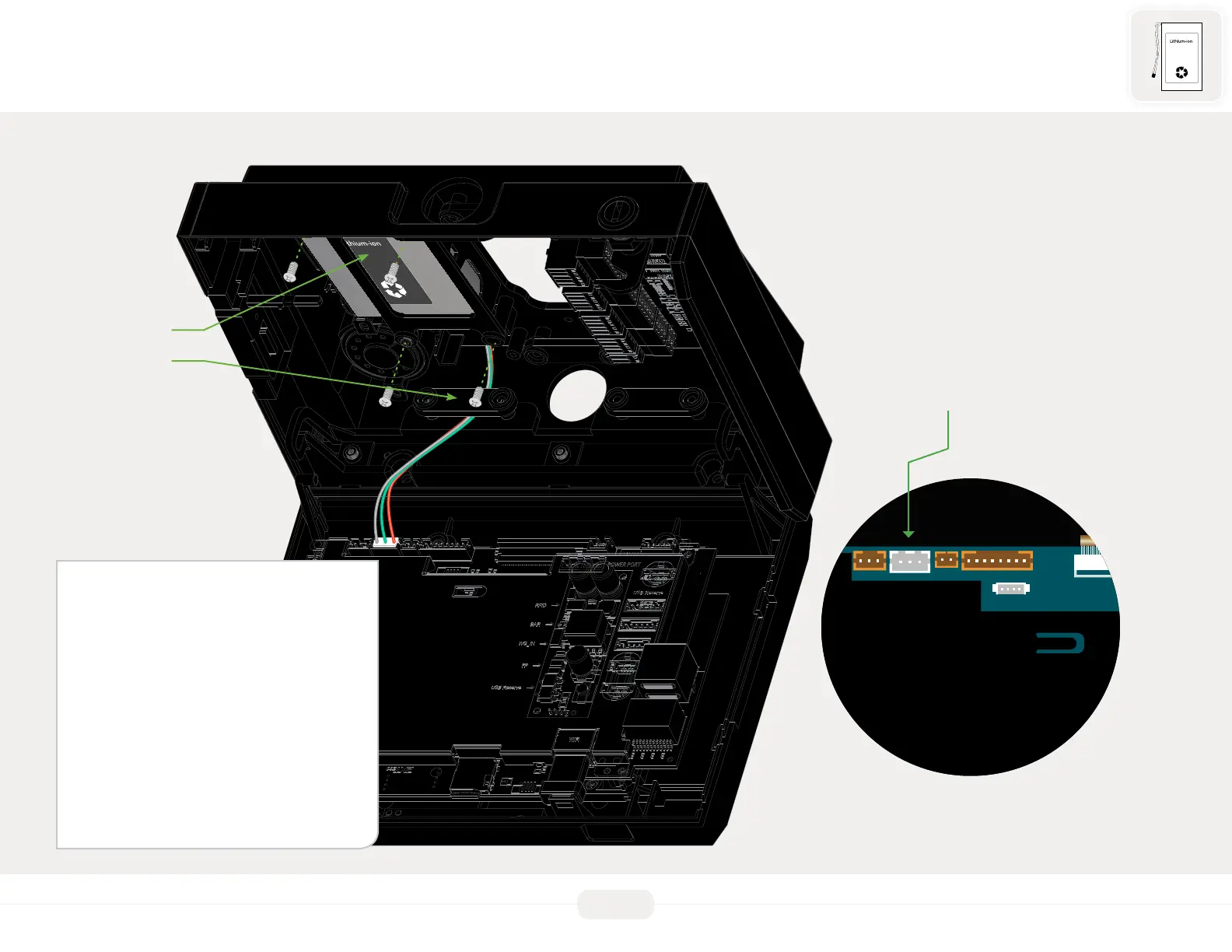

Installing internal battery pack
1. Remove the battery housing cover
2. Peel o the paper of the double-sided
tape and place the battery pack inside
the battery housing
3. Place battery housing covers back to the
unit and secure it with 4 screws.
4. Connect the battery cable to the
motherboard and secure the cable with
cable clamp
