Zmotion ZMC420SCAN - Chapter III Wiring, Communication Configuration; 3.1. Power Input; 3.1.1. Power Specification

ZMC420SCAN Motion Controller Hardware Manual V1.5
Chapter III Wiring, Communication
Configuration

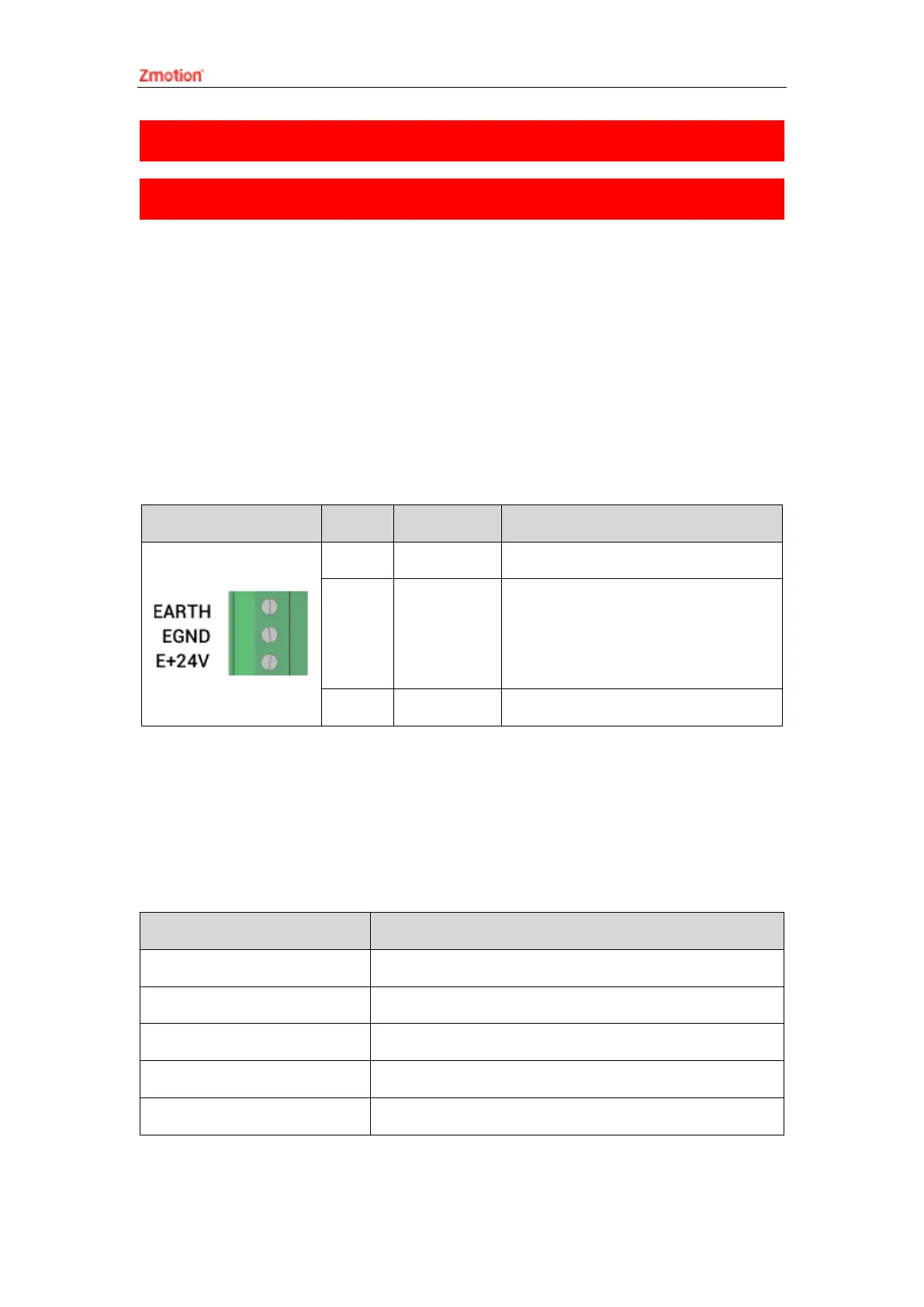

3.1. Power Input
The power supply input adopts a 3Pin (there are all 3 terminals) screw-type pluggable
wiring terminal, and the interval (means the gap distance between two ports) should be
3.81mm. This 3Pin terminal is the power supply of the controller.
→ Terminal Definition:
Terminal
Name
Type
Function
EARTH
Grounding
Case protection
EGND
Input
Negative (-) terminal of DC power
input (connect negative of power to
negative of controller)
E+24V
Input
Positive (+) terminal of power input
3.1.1. Power Specification
→ Specification
Item
Description
Voltage
DC24V(-10%~10%)
The current to open
≤0.5A
The current to work
≤0.4A
Anti-reverse connection
Valid
Overcurrent Protection
Valid
