ZMC420SCAN Motion Controller Hardware Manual V1.5

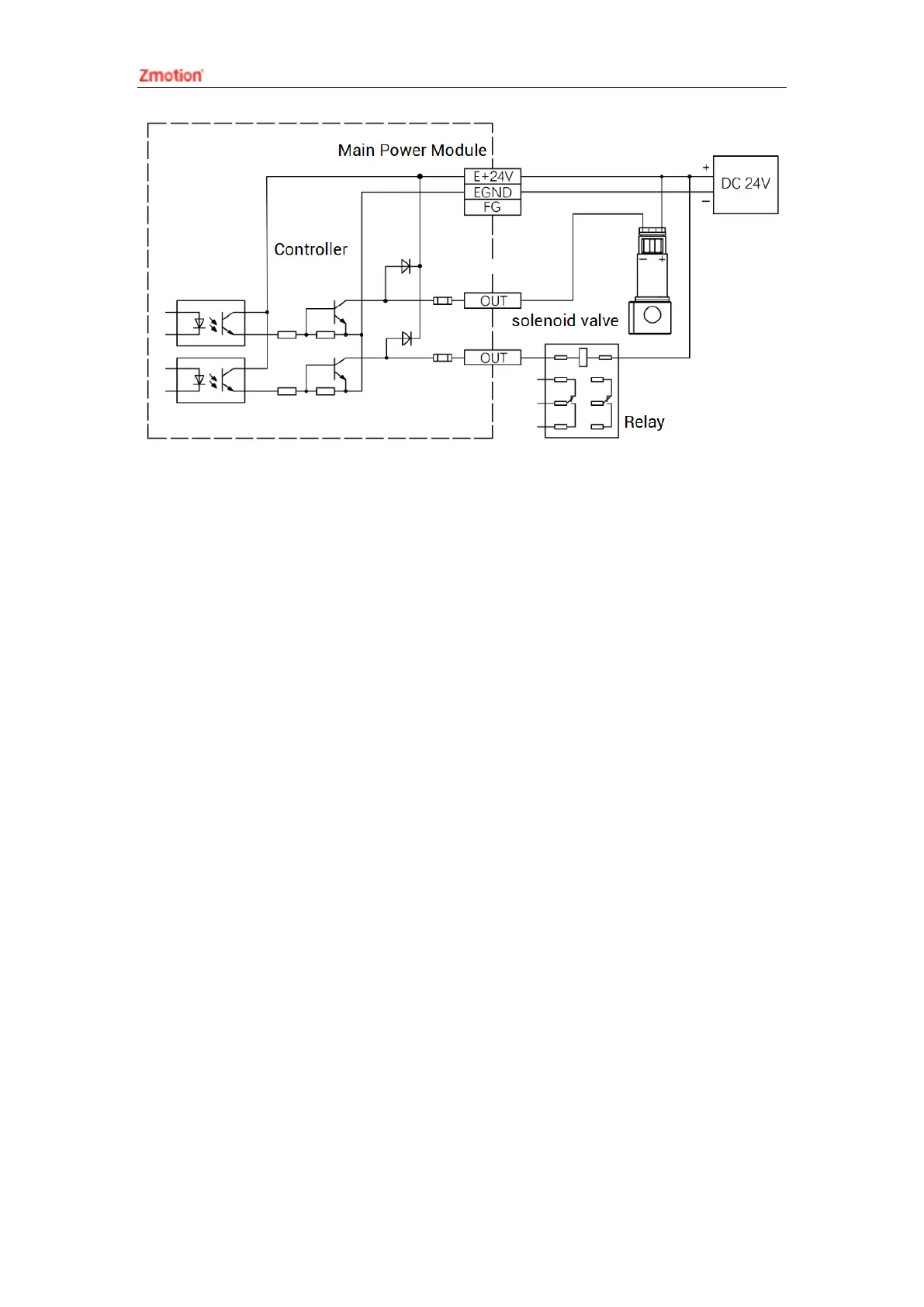

→ Wiring Note:
⚫ The wiring principle of high-speed digital output OUT (0-11) is shown in the figure
above. The external signal receiving end can be an optocoupler or a relay or solenoid
valve, all can be connected as long as the input current does not exceed 300mA.
⚫ For the connection of the public end, please connect the "EGND" port on the power
supply to the negative pole of the DC power supply of the external input device. If the
DC power supply of the external device and the controller power supply are in the
same power supply system, this connection can also be omitted.
⚫ The E5V port is a 5V power output port, which can be used when some loads need to
provide an external 5V power input, the maximum current is 300mA.
3.5.2. Basic Usage Method
(1) Please follow the above wiring instructions to wiring correctly.
(2) After powered on, please use any one interface among the three interfaces ETHERNET,
RS232 and RS485 to connect to ZDevelop.
(3) Open or close output port directly through “OP” command, also, it can be opened or
closed through “ZDevelop/View/Op”. Please refer to “ZBasic” for details.
